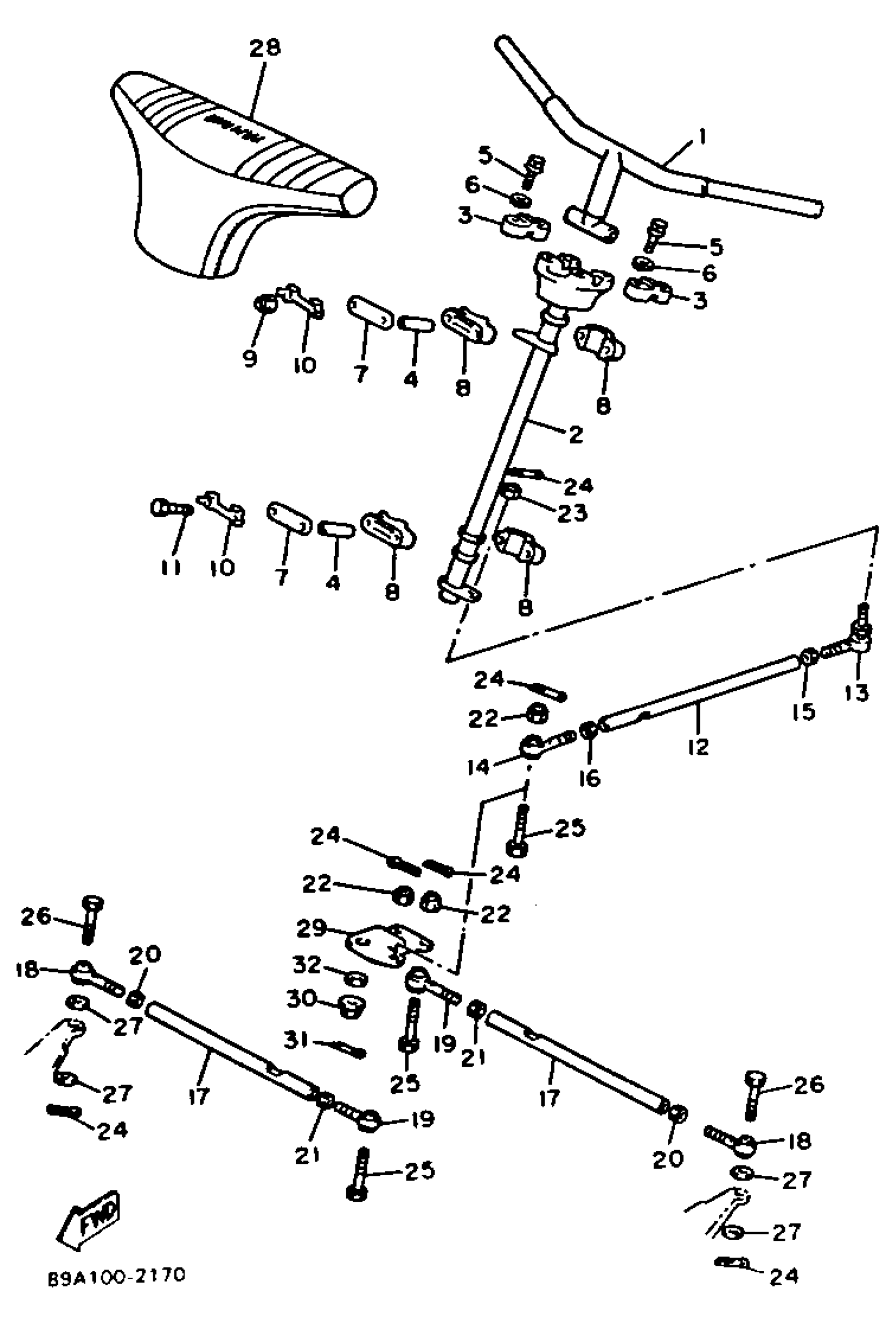

Yamaha VX750S (VMAX-4) 1992 STEERING Diagram
#
1
COLUMN,STEERING
8AB-23811-00-00
Unavailable
2
COLUMN, STEERING 2
89A-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
COLLAR(85G)
90387-106T4-00
$14.99
5
BOLT
97017-08035-00
Unavailable
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
BRACKET, STEERING LOWER
3GD-23868-01-00
Unavailable
8
PLANE BEARING, STEERING
8DF-23812-00-00
$8.99
9
NUT, NYLON
95717-08300-00
$2.70
10
WASHER, LOCK 1
1UY-23894-01-00
$7.99
11
BOLT, HEXAGON
97017-08060-00
Unavailable
12
ROD, STEERING RELAY
89A-23821-00-00
Unavailable
13
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
14
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
15
NUT (682)
95380-10700-00
Unavailable
16
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
17
ROD, TIE
89A-23831-00-00
Unavailable
18
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
19
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
20
NUT (682)
95380-10700-00
Unavailable
21
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
22
NUT, NYLON
95707-10300-00
Unavailable
23
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
24
PIN, COTTER
91490-25020-00
Unavailable
25
BOLT, WITH HOLE
90102-10031-00
Unavailable
26
BOLT, WITH HOLE
90102-10055-00
Unavailable
27
WASHER(6TA)
92907-10600-00
Unavailable
28
PAD, STEERING
89A-23815-00-00
Unavailable
29
ARM, IDLER
89A-23826-00-00
Unavailable
30
NUT, NYLON
95717-12300-00
Unavailable
31
PIN, COTTER
91490-30030-00
Unavailable
32
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
