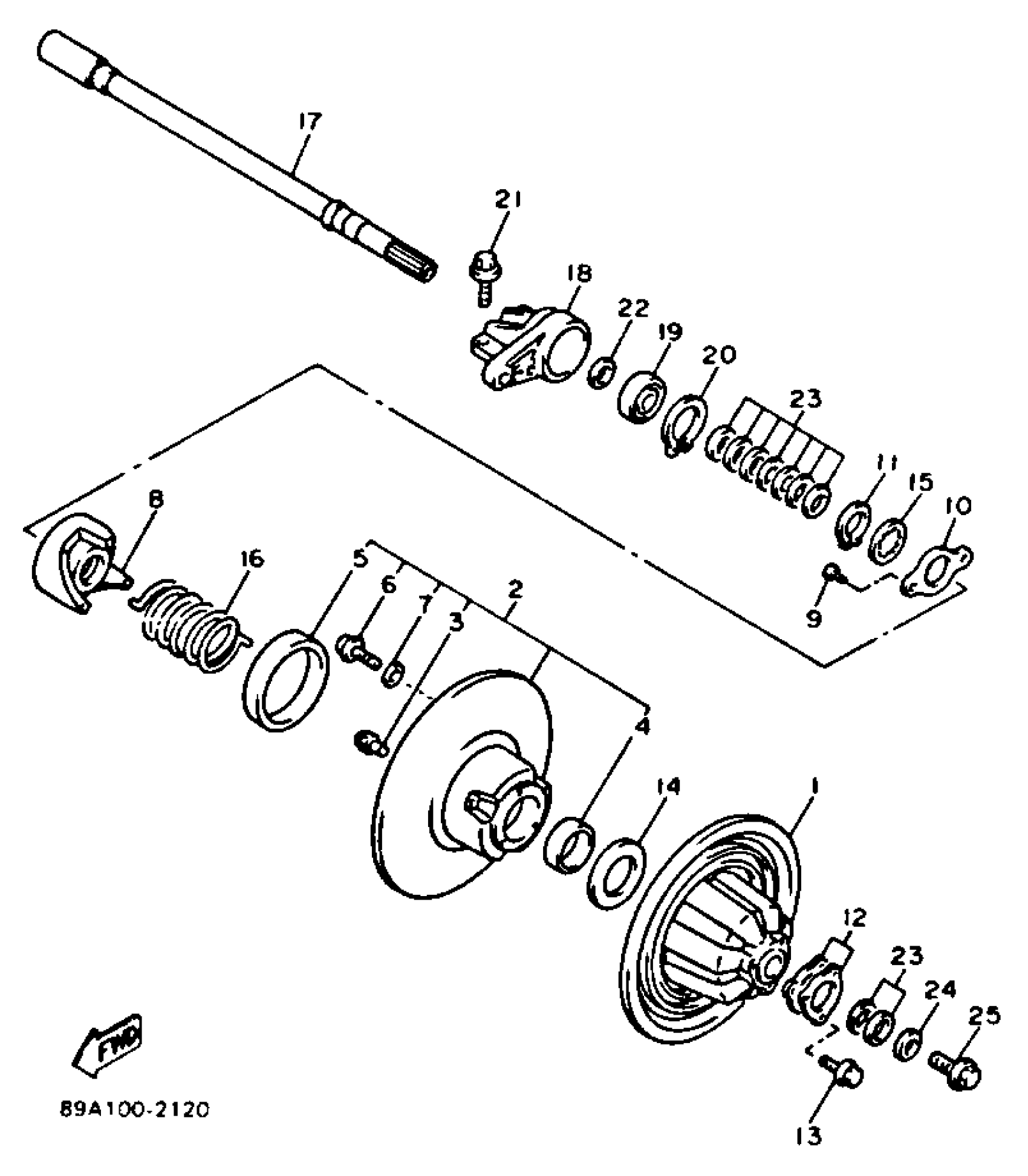

Yamaha VX750S (VMAX-4) 1992 SECONDARY SHEAVE Diagram

#

Description

Price

8

SEAT, SEC SPRING 33SPRING (33)

89A-17684-3A-00

Unavailable

8

SEAT, SEC SPRING 36SPRING (36)

89A-17684-6A-00

Unavailable

9

SCREW, BINDING

98907-06012-00

$9.49

10

WASHER

90209-38320-00

Unavailable

11

CIRCLIP

93410-38076-00

Unavailable

12

STOPPER, HOLDER

89A-17656-00-00

Unavailable

13

BOLT, SMALL FLANGE

95027-06030-00

$3.98

14

WASHER, PLATE

90201-384P6-00

Unavailable

15

WASHER

90209-34321-00

Unavailable

16

SPRING, TORSION

90508-551A3-00

Unavailable

16

SPRING, TORSION

90508-553A0-00

Unavailable

16

SPRING, TORSION

90508-553A1-00

Unavailable

17

SHAFT, SECONDARY

89A-17680-01-00

Unavailable

18

HOUSING, BEARING

89A-47631-00-00

$124.99

19

BEARING

93306-20641-00

Unavailable

20

CIRCLIP(MF1)

99009-62500-00

Unavailable

21

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

22

WASHER, PLATE(89A)

90201-284P7-00

Unavailable

23

WASHER, PLATE(89A)

90201-284P7-00

Unavailable

23

WASHER, PLATE

90201-284P8-00

Unavailable

23

WASHER, PLATE

90201-284P9-00

Unavailable

24

WASHER, PLATE

90201-141M3-00

Unavailable

25

BOLT, WASHER BASED

90105-14175-00

Unavailable
