- VX750S (VMAX-4) 1992
PRIMARY SHEAVE

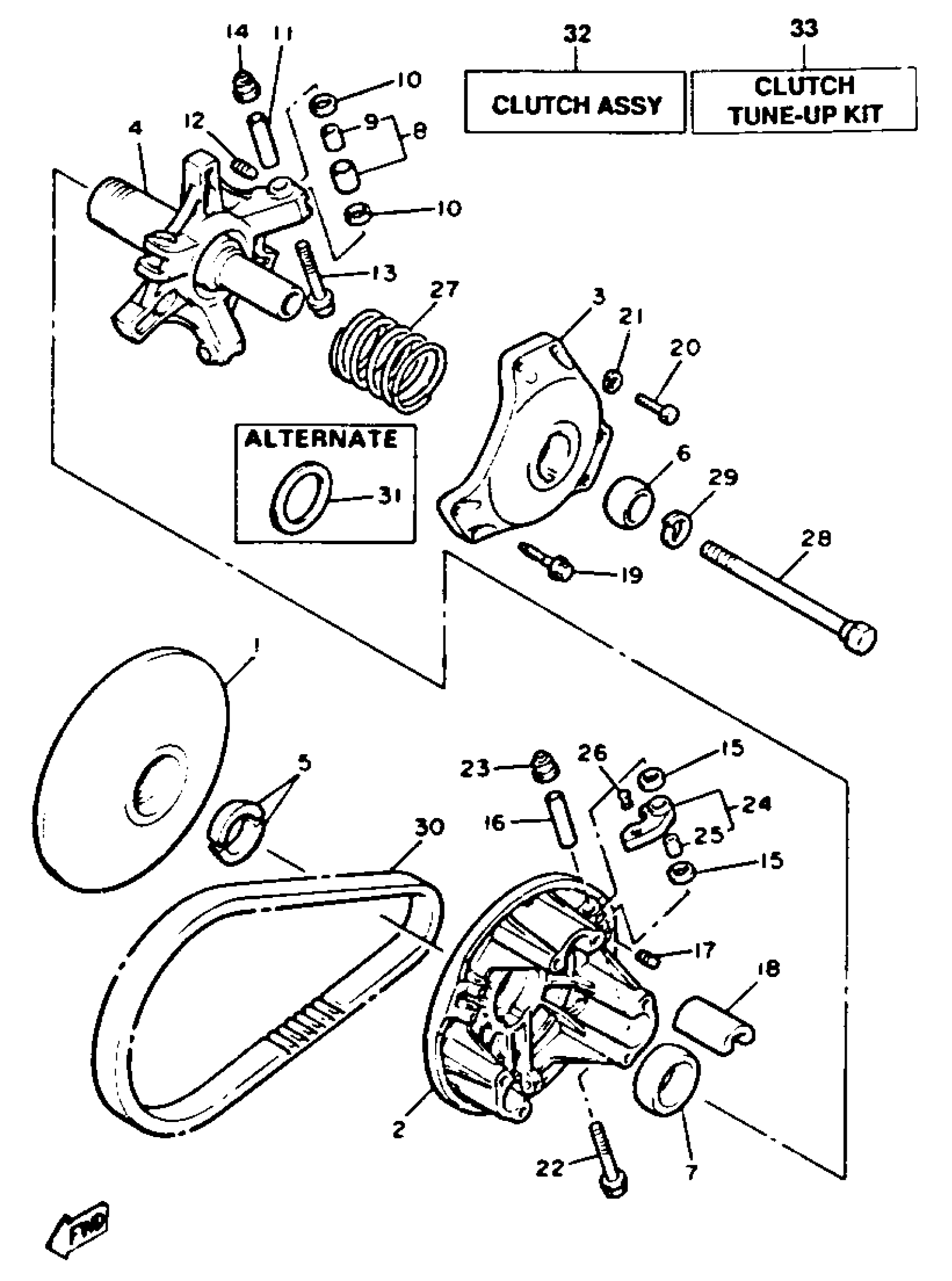

Yamaha VX750S (VMAX-4) 1992 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
88R-17611-02-00
$113.99
2
SHEAVE, PRIMARY SLIDING
88R-17621-01-00
Unavailable
3
CAP
88R-17631-01-00
Unavailable
4
SPIDER COMPLETE
8BW-17640-11-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
BUSH(83R)
90389-28032-00
$61.99
7
BUSH(88R)
90389-41031-00
$78.99
8
ROLLER COMP
89A-17624-00-00
Unavailable
9
. BUSH, SOLID
90380-08244-00
Unavailable
10
WASHER, PLATE(88R)
90202-08204-00
$9.49
11
COLLAR
90387-0514T-00
$16.99
12
BOLT, SET
90113-05041-00
$8.49
13
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
14
NUT, S/L FLANGE
95607-05200-00
$9.49
15
WASHER, PLATE(88R)
90202-08204-00
$9.49
16
COLLAR
90387-0514T-00
$16.99
17
BOLT, SET
90113-05041-00
$8.49
18
SLIDER
88R-17653-01-00
Unavailable
19
BOLT(89J)
90109-066F4-00
Unavailable
20
BOLT, HEXAGON
97017-06030-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
23
NUT, S/L FLANGE
95607-05200-00
$9.49
24
WEIGHT COMP
8AX-17605-10-00
Unavailable
25
. BUSH, SOLID
90380-08244-00
Unavailable
26
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
26
RIVET, COUNTERSUNK HEAD (8K8)
90261-06019-00
Unavailable
26
RIVET, COUNTERSUNK HEAD(88R)
90261-06028-00
Unavailable
26
RIVET, COUNTERSUNK HEAD (LEAD)
90261-06031-00
Unavailable
27
SPRING, COMPRESSION(88S)
90501-524G4-00
Unavailable
27
SPRING, COMPRESSION
90501-524G5-00
Unavailable
27
SPRING, COMPRESSION(88S)
90501-553G0-00
Unavailable
27
SPRING, COMPRESSION(88R)
90501-553G6-00
Unavailable
27
SPRING, COMPRESSION(8AX)
90501-581J7-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-556G5-00
Unavailable
27
SPRING, COMPRESSION(88R)
90501-604G0-00
Unavailable
27
SPRING, COMPRESSION(88R)
90501-605G7-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-607G0-00
Unavailable
28
. BOLT (L=1653MM)
88R-17647-00-00
Unavailable
29
WASHER(JN5)
92907-16100-00
Unavailable
30
V-BELT
8BU-17641-01-00
Unavailable
31
WASHER, PLATE(88S)
90201-483P9-00
Unavailable
32
CLUTCH ASY
89L-17601-09-00
Unavailable
33
CLUTCH TUNE-UP KIT
89A-00000-50-00
Unavailable
