Description

Price

1

HEAD, CYLINDER 1

89A-11111-00-00

Unavailable

2

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

Unavailable

3

GASKET, CYLINDER HEAD 1

89A-11181-01-00

Unavailable

4

NUT(55X)

90179-08491-00

$8.49

5

JOINT 2

89A-1247A-00-00

Unavailable

6

GASKET

89A-12435-00-00

Unavailable

7

BOLT, FLANGE

95817-06035-00

$7.49

8

THERMOSTAT

82M-12411-00-00

$75.99

9

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

10

COVER, THERMOSTAT

89A-12413-00-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER, SPRING

92907-06100-00

$4.25

13

WASHER(6TA)

92907-06600-00

$2.72

14

JOINT

8A7-12499-00-00

Unavailable

15

CYLINDER 1

89A-11311-00-00

Unavailable

16

GASKET, CYLINDER

89A-11351-00-00

Unavailable

17

BOLT, STUD (5X4)

90116-08392-00

Unavailable

18

BOLT (248-11361-00)

90116-08064-00

Unavailable

19

BOLT, STUD (24X)

90116-08409-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

21

NUT(55X)

90179-08491-00

$8.49

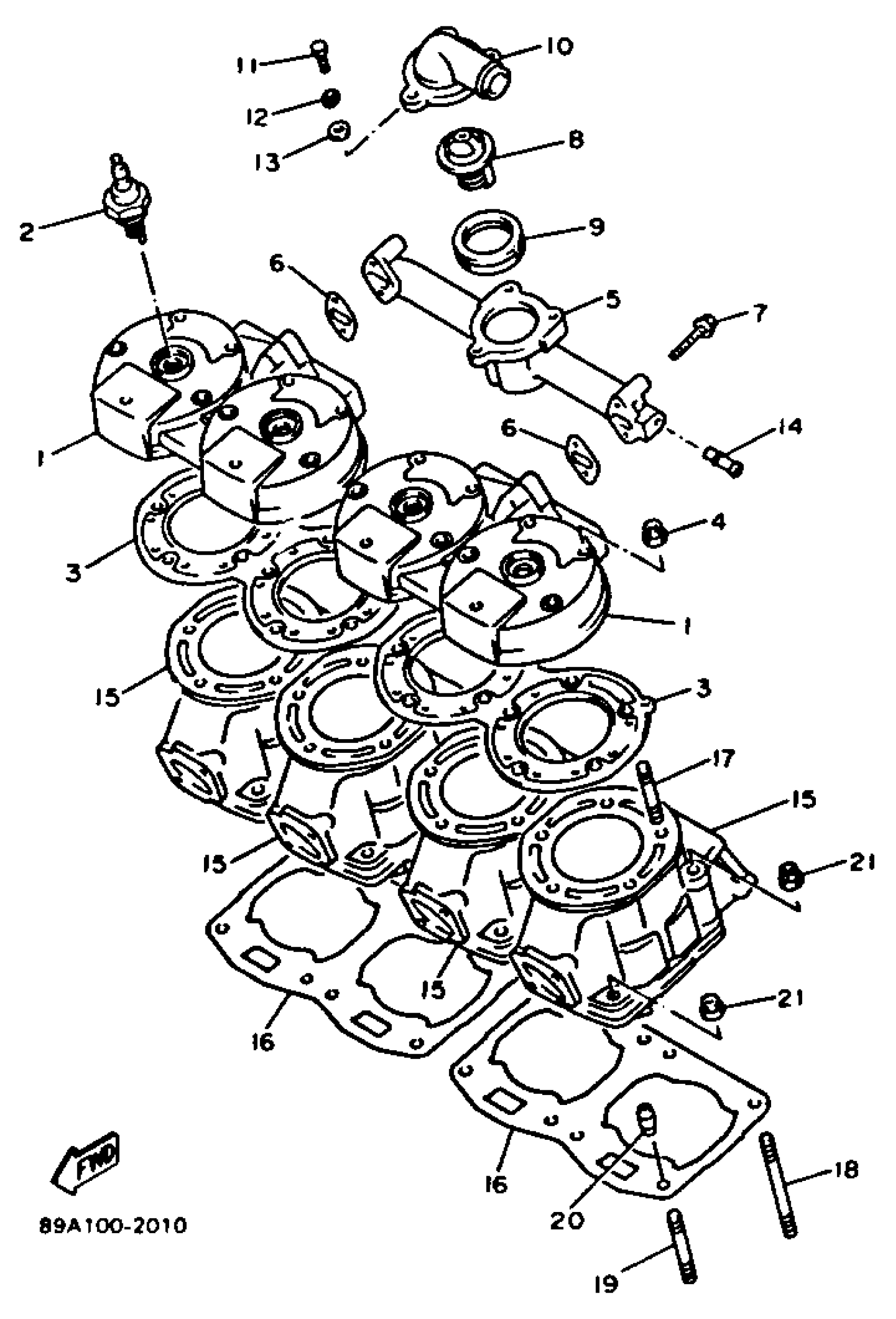

Yamaha VX750S (VMAX-4) 1992 CYLINDER HEAD Diagram

HEAD, CYLINDER 1

BR9ES NGK SCREW TOP PLUG 4PK

GASKET, CYLINDER HEAD 1

NUT(55X)

JOINT 2

GASKET

BOLT, FLANGE

THERMOSTAT

SEAL, THERMOSTAT

COVER, THERMOSTAT

BOLT, HEXAGON

WASHER, SPRING

WASHER(6TA)

JOINT

CYLINDER 1

GASKET, CYLINDER

BOLT, STUD (5X4)

BOLT (248-11361-00)

BOLT, STUD (24X)

PIN, DOWEL(3VD)

NUT(55X)
