- VX750S (VMAX-4) 1992
CARBURETOR

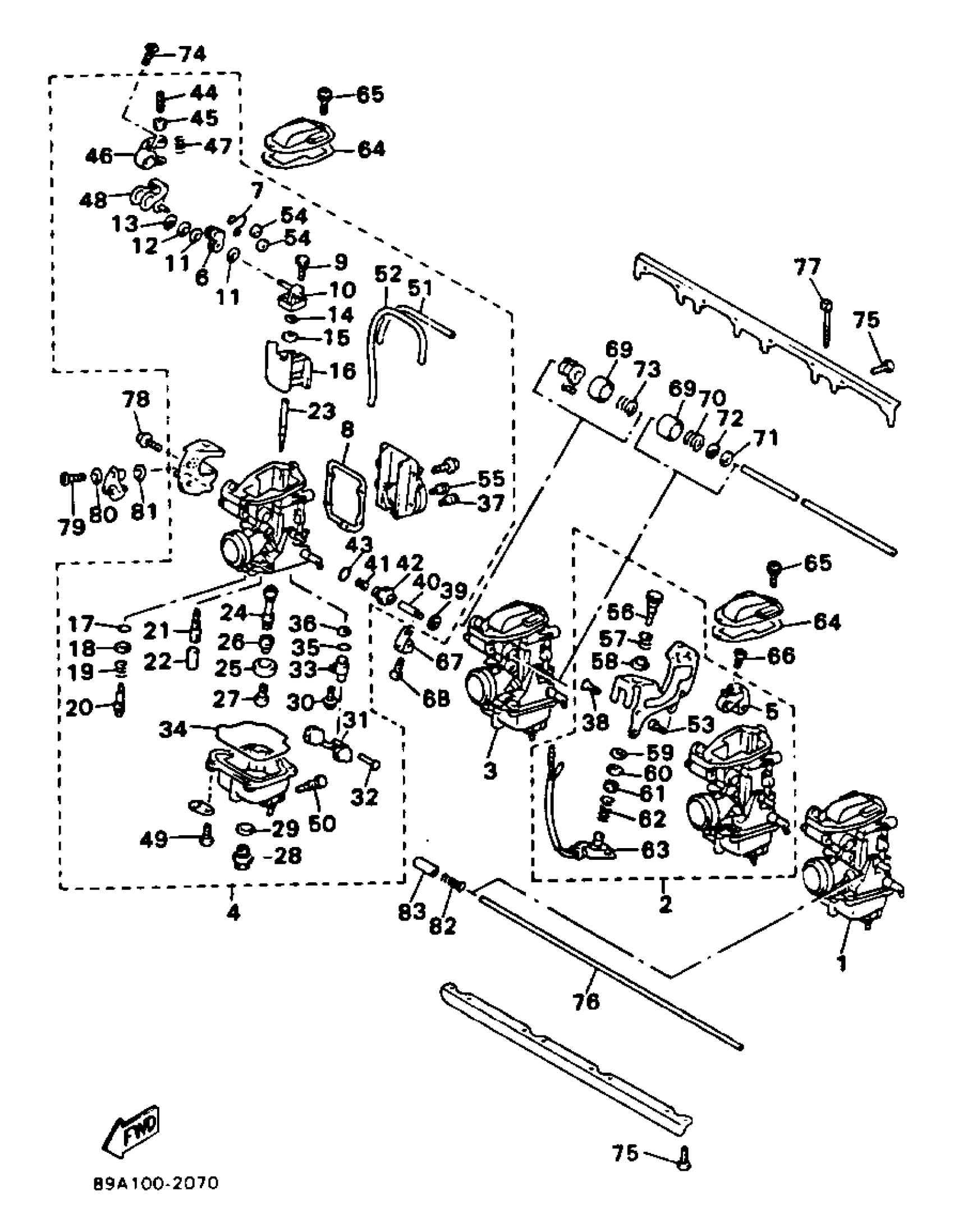

Yamaha VX750S (VMAX-4) 1992 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
89A-14901-00-00
Unavailable
2
CARBURETOR ASSEMBLY 2
89A-14902-00-00
Unavailable
3
CARBURETOR ASSEMBLY 3
89A-14903-00-00
Unavailable
4
CARBURETOR ASSEMBLY 4
89A-14904-00-00
Unavailable
5
BRACKET 2
89A-14292-00-00
Unavailable
6
PLATE
89A-14243-00-00
Unavailable
7
CLIP
89A-14137-00-00
$3.33
8
GASKET
89A-14199-00-00
$31.99
9
BOLT, SOCKET
91317-03006-00
$9.49
10
CONNECTOR
89A-14188-00-00
$34.99
11
GASKET
3GF-14126-00-00
$0.47
12
GASKET
620-14198-00-00
$2.65
13
CLIP
3MA-14937-00-00
Unavailable
14
CLIP
3FA-14137-00-00
$7.99
15
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
16
. VALVE, THROTTLE 1
89A-14112-10-00
Unavailable
17
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
18
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
19
SPRING
5K7-14134-00-00
Unavailable
20
SCREW, ADJ.
89A-14565-00-00
Unavailable
21
JET, PILOT (# 50)
3H1-14142-50-00
Unavailable
22
PIPE
89A-14996-00-00
Unavailable
23
. NEEDLE
89A-14116-14-00
Unavailable
24
. NOZZLE, MAIN
89A-14141-54-00
Unavailable
25
WASHER, MAIN JET
1LX-14153-00-00
Unavailable
26
RING
89A-14194-00-00
Unavailable
27
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
27
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
27
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
27
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
27
JET, MAIN (#128.8)
3G2-1423E-51-00
Unavailable
27
JET, MAIN (#131.3)
3G2-1423E-52-00
Unavailable
27
JET, MAIN(#133.8)
3G2-1423E-53-00
Unavailable
27
JET, MAIN (#136.3)
3G2-1423E-54-00
Unavailable
27
JET, MAIN (#138.8)
3G2-1423E-55-00
Unavailable
28
PLUG, SCREW
500-14115-00-00
Unavailable
29
O-RING (541)
558-14147-00-00
Unavailable
30
SCREW
2LN-14565-00-00
Unavailable
31
FLOAT
1UY-14185-00-00
Unavailable
32
PIN, FLOAT
537-14186-00-00
Unavailable
33
. NEEDLE VALVE ASSEMBLY
3L1-14190-13-00
Unavailable
34
O-RING
89A-14147-00-00
Unavailable
35
O-RING
8F2-14147-00-00
Unavailable
36
NET, FILTER
1J7-14994-00-00
Unavailable
37
JET, AIR (#2.0)
239-14172-20-00
Unavailable
38
SCREW,FLAT
98707-05008-00
Unavailable
39
. COVER, PLUNGER CAP
302-14173-00-00
Unavailable
40
. PLUNGER, STARTER
4G0-14171-00-00
Unavailable
41
SPRING, PLUNGER
2N3-14135-00-00
Unavailable
42
. CAP, PLUNGER
1FN-14174-00-00
Unavailable
43
O-RING
1AE-14147-00-00
Unavailable
44
SCREW
89A-14216-00-00
Unavailable
45
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
46
. LEVER
89A-14276-00-00
Unavailable
47
SPRING
89A-14286-00-00
Unavailable
48
. LEVER, STARTER
89A-14905-00-00
Unavailable
49
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
50
PLUG, DRAIN
12R-14191-00-00
Unavailable
51
HOSE
89A-14987-00-00
Unavailable
52
. HOSE (87M-14987-00-00)
87M-12484-00-00
Unavailable
53
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
54
RING
3MA-14918-00-00
Unavailable
55
PILOT JET, AIR (#1.20)
239-14172-12-00
Unavailable
56
SCREW,THROTTLE
80L-14122-00-00
Unavailable
57
SPRING
8X0-14500-00-00
Unavailable
58
RING
8X0-14184-00-00
Unavailable
59
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
60
. WASHER
1UF-14952-00-00
Unavailable
61
NUT
89A-14594-00-00
Unavailable
62
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
63
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
64
GASKET
89A-14198-00-00
Unavailable
65
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
66
SCREW,FLAT
98707-04014-00
Unavailable
67
. LEVER COMP. 1
89A-14208-00-00
Unavailable
68
SCREW (11H-14991-00-00)
11J-14991-00-00
Unavailable
69
. COLLAR
89A-14264-00-00
Unavailable
70
SPRING
89A-14589-00-00
Unavailable
71
. WASHER
3H1-14227-00-00
Unavailable
72
CLIP
3LD-14919-00-00
Unavailable
73
SPRING
89A-14275-00-00
Unavailable
74
SCREW, PAN HEAD
98517-04016-00
Unavailable
75
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
76
SHAFT, STARTER LEVER
89A-14978-00-00
Unavailable
77
CLIP, PIPE
35H-14139-00-00
Unavailable
78
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
79
. PLUG, SCREW
22F-14115-00-00
Unavailable
80
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
81
. WASHER
3FV-14962-00-00
Unavailable
82
. SPRING, PLUNGER
1AE-14135-00-00
Unavailable
83
. CAP
89A-14118-00-00
Unavailable
