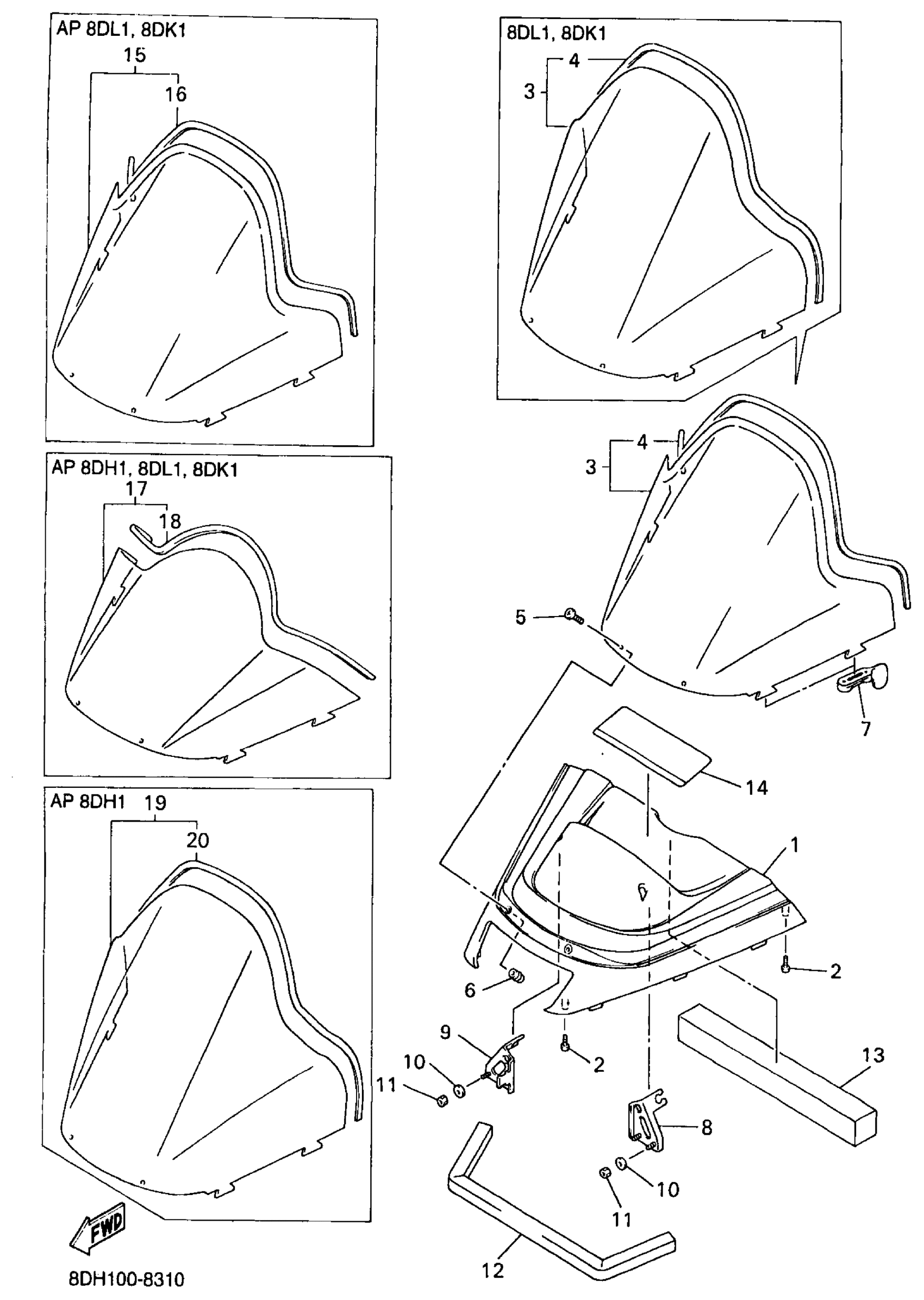

Yamaha VX700XTCPB (VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK)) 8DL1 1998 WINDSHIELD Diagram

COVER, HEADLIGHT

8CR-77251-01-00

$222.99

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

WINDSHIELD, VMAX

8CR-77210-00-XX

Unavailable

VENTURE SHIELD (STD TALL)

8DM-77210-00-XX

Unavailable

TRIM,UPPER

87K-77213-00-00

Unavailable

TRIM, UPPER

8DM-77213-00-00

Unavailable

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

NUT(1KT)

90179-05523-00

$8.49

FASTNER

82H-77223-00-00

$9.99

STAY 1

8CR-77125-00-00

Unavailable

STAY 2

8CR-77126-00-00

Unavailable

WASHER, PLATE

90201-06020-00

$9.49

NUT(6TA)

95317-06600-00

$3.55

DAMPER, NOISE 19

8CR-77279-00-00

Unavailable

SHIELD, NOISE 2

8CR-2199J-00-00

$59.99

LABEL, WARNING 1

8CR-77761-00-00

Unavailable

LABEL, WARNING 1

8DB-77761-00-00

Unavailable

WINDSHIELD, VMAX

8CR-77210-00-XX

Unavailable

TRIM,UPPER

87K-77213-00-00

Unavailable

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

Unavailable

TRIM,UPPER

87K-77213-00-00

Unavailable

VENTURE SHIELD (STD TALL)

8DM-77210-00-XX

Unavailable

TRIM, UPPER

8DM-77213-00-00

Unavailable
