- VX700XTCPB (VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK)) 8DL1 1998
TRACK SUSPENSION 1

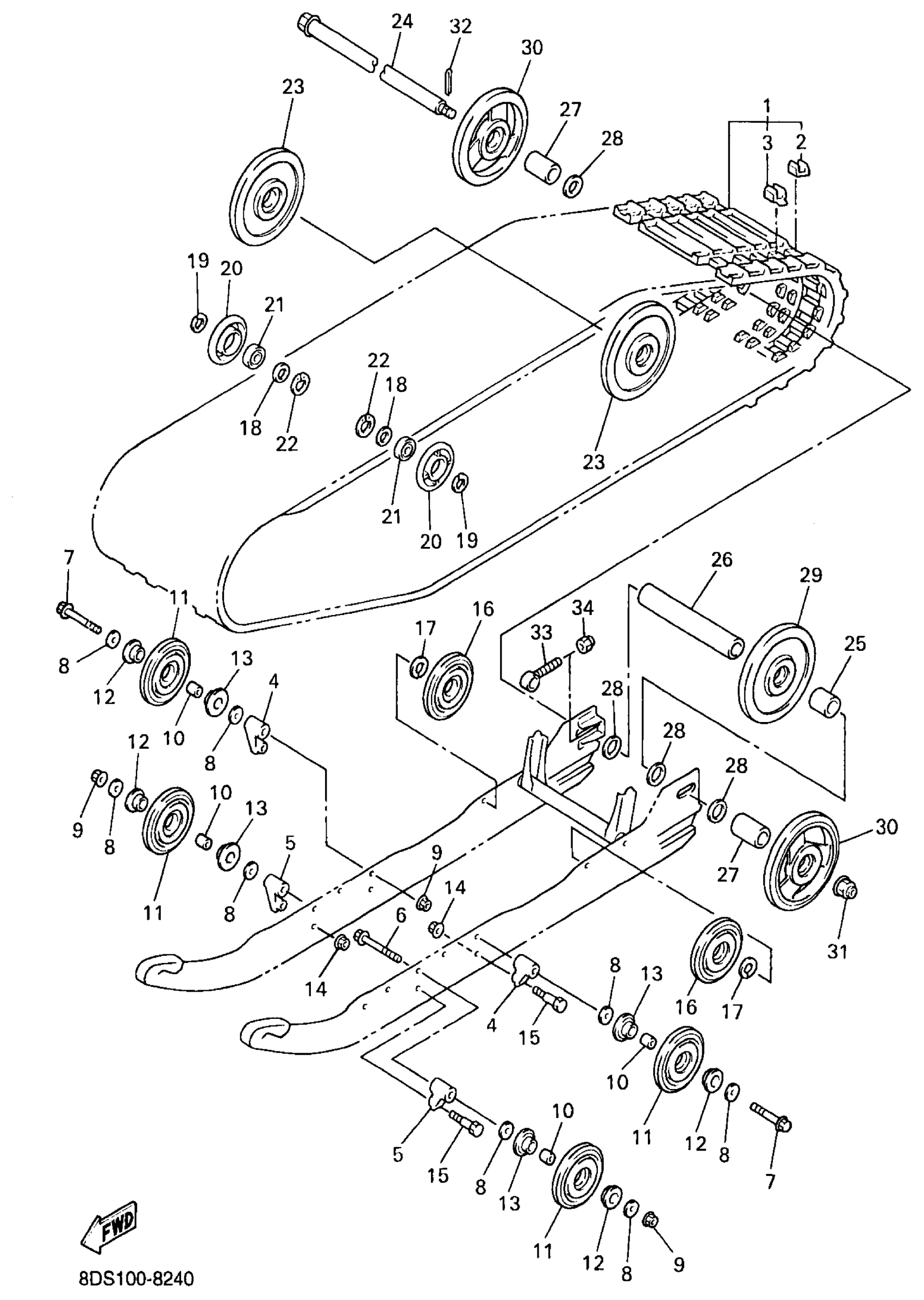

Yamaha VX700XTCPB (VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK)) 8DL1 1998 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASY
8CA-47110-10-00
Unavailable
2
PLATE, REINFORCEMENT
8CR-47113-00-00
$9.99
3
METAL, SLIDE
8CR-47115-00-00
$7.99
4
BRACKET 7
8DF-47419-00-00
$29.99
5
BRACKET 7
8DF-47419-10-00
Unavailable
6
BOLT, WASHER BASED(59V)
90105-10392-00
$11.49
7
BOLT,FLANGE
95817-10090-00
$9.49
8
WASHER, PLATE(8CM)
90201-100S0-00
$5.60
9
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
10
COLLAR
90387-10079-00
Unavailable
11
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
12
SPACER
8CR-47341-01-00
Unavailable
13
SPACER
8CR-47341-11-00
$10.99
14
NUT, SELF-LOCKING
90185-08169-00
$8.49
15
BOLT(8CM)
90101-08774-00
$7.49
16
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
17
CIRCLIP(JF7)
99009-25400-00
Unavailable
18
COLLAR(8AB)
90387-2004V-00
Unavailable
19
CIRCLIP(1AR)
99009-20400-00
Unavailable
20
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
21
BEARING(8AB)
93306-00444-00
Unavailable
22
CIRCLIP(5U8)
99009-42500-00
Unavailable
23
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
24
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
25
COLLAR
90387-2012E-00
Unavailable
26
COLLAR
90387-2012C-00
Unavailable
27
COLLAR
90387-2012D-00
Unavailable
28
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
29
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
30
WHEEL RED PLASTIC ASSY
8CR-47550-21-RD
Unavailable
31
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
32
PIN, COTTER
91490-30030-00
Unavailable
33
COLLAR 3
8K2-47479-01-00
Unavailable
34
NUT, NYLON
95707-10300-00
Unavailable
