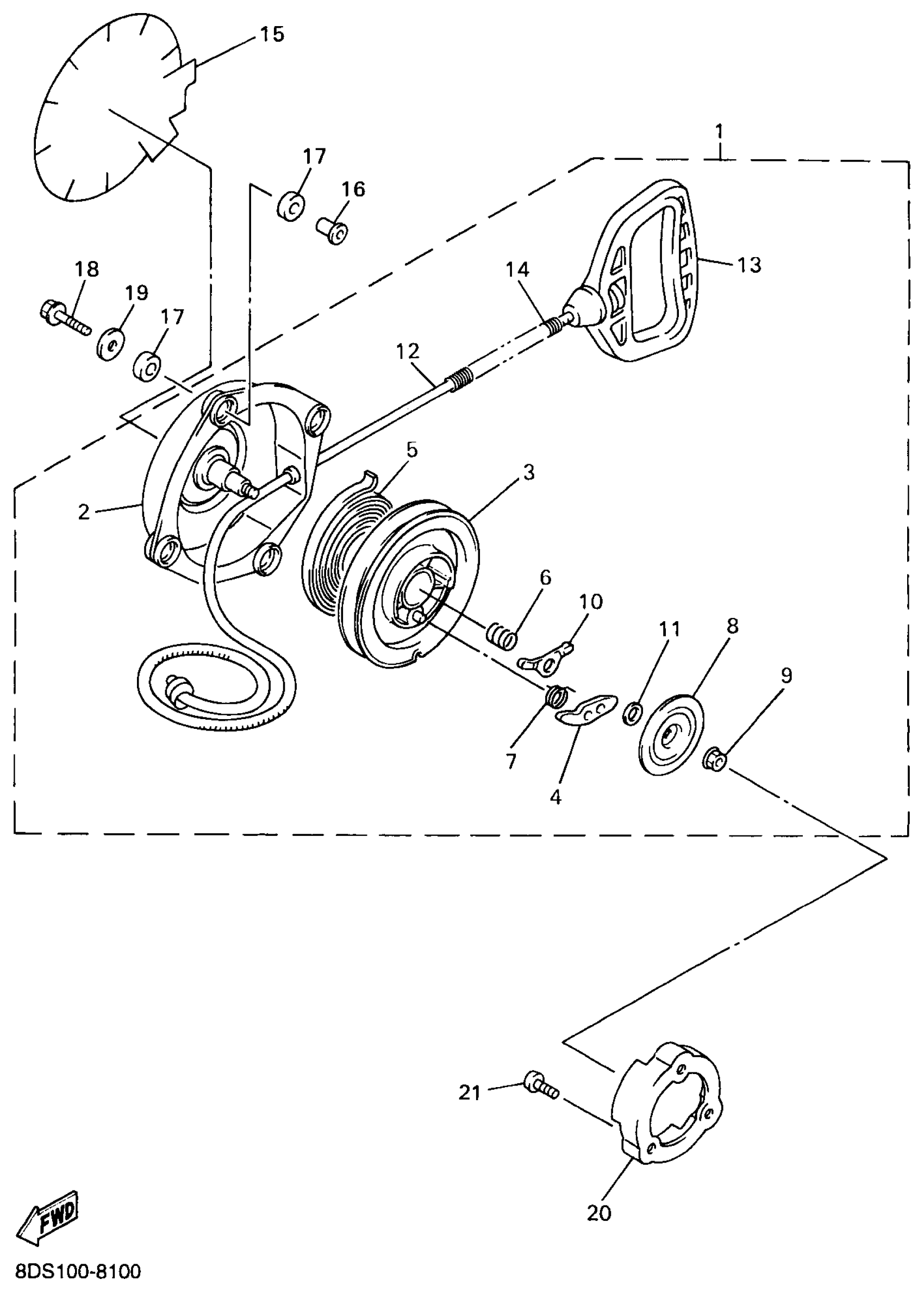

Yamaha VX700XTCPB (VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK)) 8DL1 1998 STARTER Diagram

STARTER ASSY

8CH-15710-01-00

$318.99

. CASE, STARTER

8CH-15711-00-00

Unavailable

. DRUM, SHEAVE

8CH-15714-00-00

Unavailable

. PAWL, DRIVE

8CH-15741-00-00

Unavailable

SPRING, STARTER

21V-15713-00-00

$25.99

. SPRING, FRICTION

8CH-15715-00-00

Unavailable

. SPRING

8CH-15767-00-00

Unavailable

PLATE, DRIVE

8CH-15716-00-00

Unavailable

NUT, FLANGE(JN5)

95707-08500-00

$3.13

. GUIDE, CAM

8CH-15735-00-00

Unavailable

. WASHER, THRUST

8CH-15739-00-00

Unavailable

WIRE, STARTER (BRAIDED)

8CH-15751-00-00

$29.99

HANDLE, STARTER

8F3-15755-00-00

$29.99

. PROTECTOR, PIPE

85L-24327-00-00

Unavailable

COVER, STARTER CASE

8CH-15712-00-00

Unavailable

COLLAR

90387-08071-00

Unavailable

BUSH (8M6)

90385-12036-00

Unavailable

BOLT, FLANGE

95817-08035-00

Unavailable

WASHER (853)

90201-08326-00

Unavailable

PULLEY, STARTER

8CH-15723-00-00

Unavailable

BOLT, BUTTON HEAD

92017-08012-00

Unavailable
