- VX700XTCPB (VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK)) 8DL1 1998
FRAME

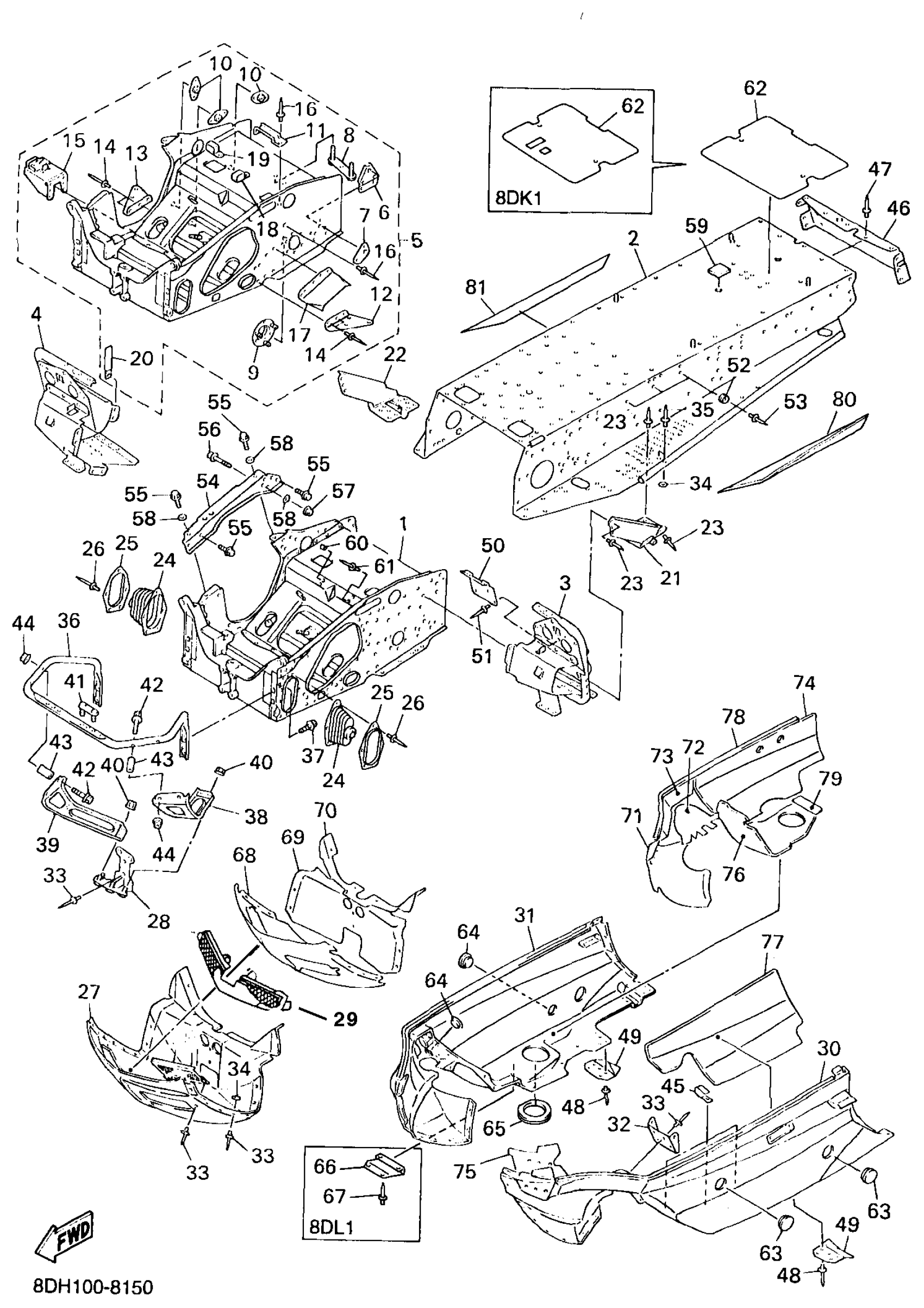

Yamaha VX700XTCPB (VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK)) 8DL1 1998 FRAME Diagram
#
1
FRONT FRAME COMP.
8CR-21940-07-00
Unavailable
2
REAR FRAME COMP.
8CR-21950-06-00
Unavailable
3
FOOTREST COMP. 1
8CR-21960-08-00
Unavailable
4
FOOTREST COMP. 2
8CR-21970-08-00
Unavailable
5
FRAME CONNECTION KIT (8CR-W2195-01-00)
8CR-W2195-00-00
Unavailable
6
BRACKET, MAIN TRACK 1
8CR-21943-01-00
$6.99
7
BRACKET, MAIN TRACK 2
8CR-21953-00-00
$2.24
8
BRACKET 3
8CR-2196F-00-00
Unavailable
9
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
Unavailable
10
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
11
CLAMP, FUEL PIPE
8CR-21977-00-00
Unavailable
12
PANEL, SUB FRAME 6
8CR-21917-00-00
Unavailable
13
PANEL, SUB-FRAME 7
8CR-21918-00-00
Unavailable
14
RIVET, BLIND
90267-48016-00
$10.49
15
STAY, MUFFER
8CR-2194J-00-00
Unavailable
16
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
17
COVER 2
8CR-2198G-00-00
Unavailable
18
CLAMP(83R)
90461-08113-00
Unavailable
19
CLAMP(8CR)
90461-06142-00
Unavailable
20
CLAMP
90462-10236-00
Unavailable
21
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
22
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
23
RIVET
90269-07080-00
Unavailable
24
COVER 1
8CR-2198F-00-00
Unavailable
25
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
26
RIVET, BLIND
90267-47197-00
Unavailable
27
PANEL, SUB FRAME 1
8CR-21912-01-00
Unavailable
28
PLATE, BACK UP
8CR-23788-11-00
Unavailable
29
STAY 4
8CR-77128-00-00
Unavailable
30
FRAME UNDER 1
8CR-2196A-03-00
Unavailable
31
FRAME, UNDER 2
8CR-2196E-03-00
Unavailable
32
BRACKET, GUARD FITTING
8CR-21972-00-00
Unavailable
33
RIVET, BLIND
90267-48018-00
Unavailable
34
WASHER PLATE 829771780000
90201-05033-00
Unavailable
35
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
36
BUMPER, FRONT 2
8CR-77512-00-00
Unavailable
37
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
38
BRACKET, FRONT
8CR-21949-10-00
Unavailable
39
BRACKET, FRONT BUMPER
8CR-21959-10-00
Unavailable
40
NUT, SELF-LOCKING
90185-08169-00
Unavailable
41
BRACKET, 5
8CR-2196M-00-00
Unavailable
42
BOLT, FLANGE
95817-08040-00
Unavailable
43
COLLAR(8CR)
90387-0810F-00
Unavailable
44
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
45
CLAMP(4MX)
90465-06376-00
Unavailable
46
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
Unavailable
47
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
48
RIVET, BLIND
90267-48018-00
Unavailable
49
PROTECTOR, FRAME
8CH-21978-00-00
Unavailable
50
HOOK
8CR-21973-00-00
Unavailable
51
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
52
BUTT0N
81K-2471F-00-00
Unavailable
53
RIVET, BLIND(81K)
90267-40135-00
Unavailable
54
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
55
BOLT, FLANGE
95817-10020-00
Unavailable
56
BOLT,FLANGE
95817-10065-00
Unavailable
57
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
58
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
59
COVER 3
8CR-2198J-00-00
Unavailable
60
PLUG (17J)
90338-10132-00
Unavailable
61
RIVET, BLIND
90267-48177-00
Unavailable
62
SEAL
8CR-2475M-00-00
Unavailable
62
SEAL
8CW-2475M-00-00
Unavailable
63
PLUG (8H8)
90338-44093-00
Unavailable
64
PLUG(8CJ)
90338-30256-00
Unavailable
65
SPACER
8DF-21998-10-00
Unavailable
66
PROTECTOR, FRAME 3
8CS-2197C-00-00
Unavailable
67
RIVET, BLIND
90267-48018-00
Unavailable
68
LINING, SHROUD 1
8CR-77261-00-00
Unavailable
69
LINING, SHROUD 2
8CR-77262-00-00
Unavailable
70
LINING, SHROUD 3
8CR-77263-00-00
Unavailable
71
LINING, SHROUD 4
8CR-77264-00-00
Unavailable
72
LINING, SHROUD 5
8CR-77265-00-00
Unavailable
73
LINING, SHROUD 6
8CR-77266-00-00
Unavailable
74
LINING, SHROUD 7
8CR-77267-01-00
Unavailable
75
LINING,SHROUD 8
8CR-77268-00-00
Unavailable
76
LINING, SHROUD 9
8CR-77269-00-00
Unavailable
77
DAMPER, NOISE 11
8CR-77271-00-00
Unavailable
78
TAPE, 5
8CR-7717J-00-00
Unavailable
79
TRIM 1
8CR-77165-00-00
Unavailable
80
EMBLEM 1
8CX-77351-21-00
Unavailable
80
EMBLEM 1
8DB-77351-01-00
Unavailable
81
EMBLEM 2
8CX-77352-21-00
Unavailable
81
EMBLEM 2
8DB-77352-01-00
Unavailable
