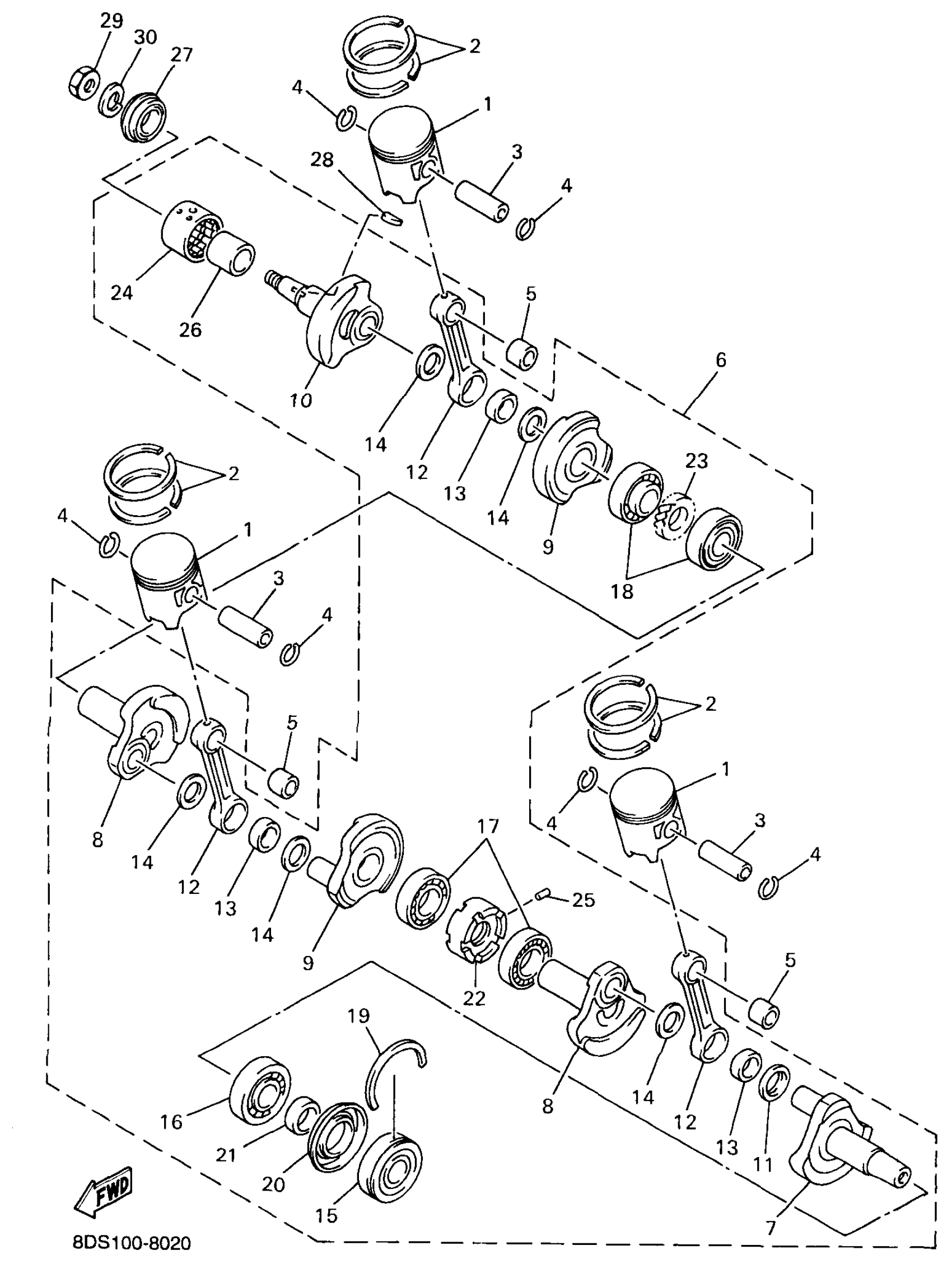

Yamaha VX700XTCPB (VMAX 700 XTCP (PLASTIC SKI, 1.5"TRACK)) 8DL1 1998 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8CH-11631-00-A0

$136.99

2

PISTON RING SET (STD)

8CH-11603-00-00

$72.99

3

PIN, PISTON

8H8-11633-00-00

$36.99

4

CIRCLIP (8H0)

93450-21053-00

$3.85

5

BEARING

93310-32009-00

$55.99

6

CRANKSHAFT ASSY

8CH-11400-12-00

Unavailable

7

CRANK 1

8CH-11412-00-00

Unavailable

8

CRANK 2

8CH-11422-00-00

$158.99

9

. CRANK 3

8CH-11432-00-00

Unavailable

10

CRANK 4

8CH-11442-00-00

Unavailable

11

WASHER, CRANK PIN

8CH-11685-00-00

$34.99

12

ROD, CONNECTING

8CH-11651-00-00

$84.99

13

BEARING

93310-527S9-00

$81.99

14

WASHER, PLATE

90201-277R4-00

Unavailable

15

BEARING

93306-30715-00

$147.99

16

BEARING

93306-30716-00

Unavailable

17

. BEARING

93306-28201-00

Unavailable

18

. BEARING

93306-28202-00

Unavailable

19

CIRCLIP (834)

93440-80023-00

Unavailable

20

OIL SEAL

93103-45179-00

Unavailable

21

. COLLAR

8CH-11478-00-00

Unavailable

22

. SEAL, LABYRINTH 1

8CH-11515-00-00

Unavailable

23

GEAR, CRANK SHAFT

8CH-11434-00-00

Unavailable

24

BEARING

93390-00028-00

Unavailable

25

PIN, SPRING (663)

91690-30010-00

Unavailable

26

BEARING

8DF-1142A-01-00

Unavailable

27

OIL SEAL(82M)

93103-32153-00

Unavailable

28

KEY, WOODRUFF (8R9)

90280-05033-00

Unavailable

29

NUT

90170-16425-00

Unavailable

30

WASHER(6TD)

92907-16600-00

Unavailable
