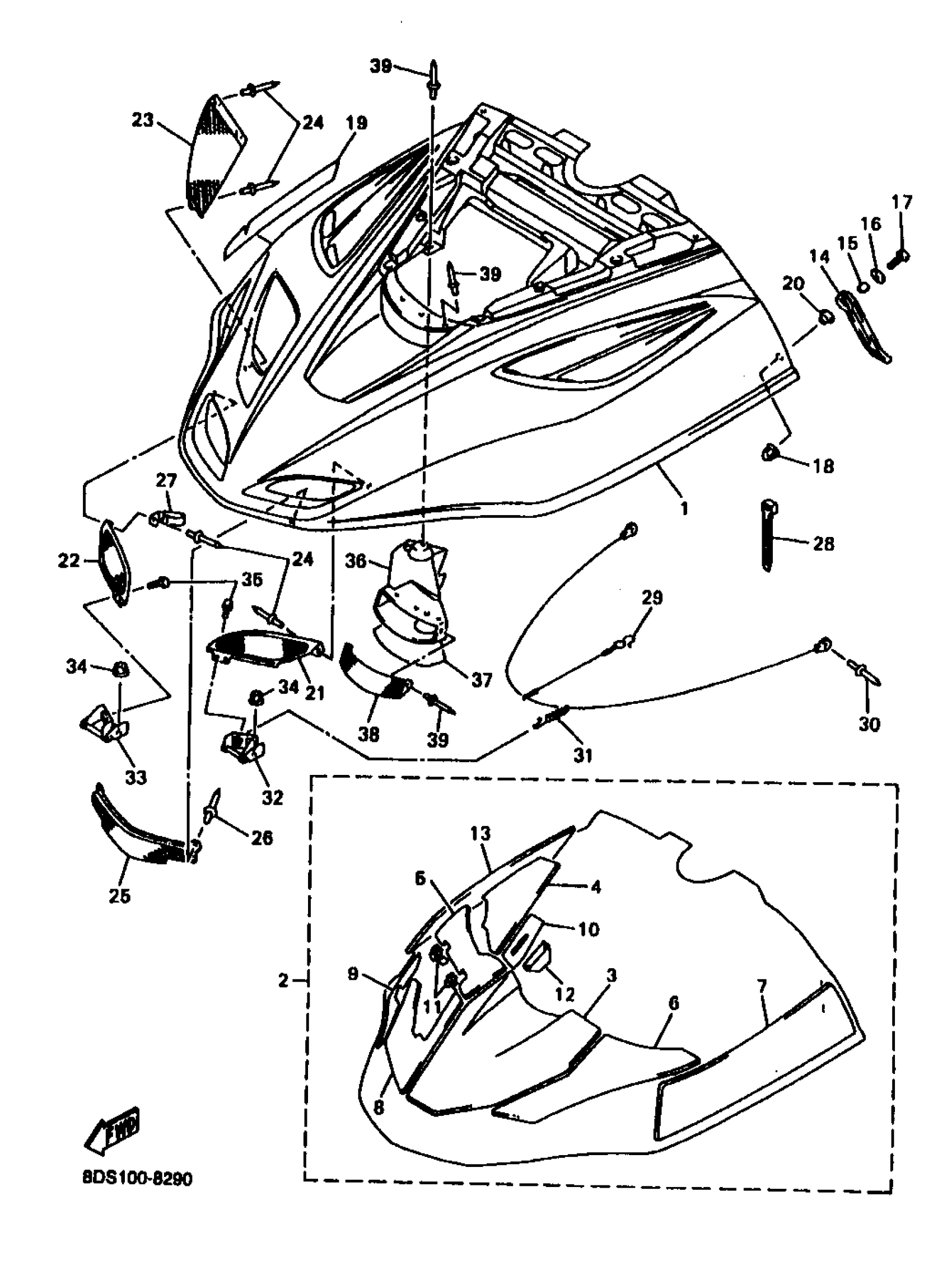

Yamaha VX700XTB (VMAX 700 XT) 8DM1 1998 SHROUD Diagram
#
1
SHROUD
8CR-77111-01-00
Unavailable
1
SHROUD
8CW-77111-11-00
Unavailable
2
LINING SET
8CR-W7726-00-00
Unavailable
3
DAMPER, NOISE 12
8CR-77272-00-00
Unavailable
4
. DAMPER, NOISE 13
8CR-77273-00-00
Unavailable
5
. DAMPER, NOISE 14
8CR-77274-00-00
Unavailable
6
DAMPER, NOISE 15
8CR-77275-00-00
Unavailable
7
DAMPER, NOISE 16
8CR-77276-00-00
Unavailable
8
. DAMPER, NOISE 18
8CR-77278-00-00
Unavailable
9
. TAPE 1
8CR-7717E-00-00
Unavailable
10
. TAPE 2
8CR-7717F-00-00
Unavailable
11
. TAPE 3
8CR-7717G-00-00
Unavailable
12
. TAPE 4
8CR-7717H-00-00
Unavailable
13
. SHIELD, HEAT
8CR-2199H-00-00
Unavailable
14
BODY, LATCH 1
8V0-77171-00-00
$21.99
15
COLLAR (420)
90387-06241-00
Unavailable
16
WASHER, PLATE
90201-06557-00
Unavailable
17
SCREW, BINDING
98907-06025-00
Unavailable
18
NUT, CROWN(1FN)
90176-06055-00
Unavailable
19
TAPE, 5
8CS-7717J-00-00
Unavailable
20
C0LLAR
90387-062M9-00
Unavailable
21
LOUVER 1
8CR-77131-00-00
Unavailable
21
LOUVER 1
8CR-77131-10-00
Unavailable
22
LOUVER 2
8CR-77132-00-00
Unavailable
22
LOUVER 2
8CR-77132-10-00
Unavailable
23
LOUVER 3
8CR-77133-00-00
Unavailable
24
RIVET, BLIND(8CJ)
90267-48182-00
Unavailable
25
LOUVER 4
8CR-77134-00-00
Unavailable
26
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
27
CLAMP(51Y)
90465-08277-00
Unavailable
28
CLAMP
90464-13077-00
Unavailable
29
STOPPER, SHROUD
8CR-77118-00-00
Unavailable
30
RIVET, BLIND
90267-48018-00
Unavailable
31
CLAMP, ROD
89A-77159-00-00
Unavailable
32
HINGE ASSY
8CR-77140-00-00
Unavailable
33
HINGE ASSY 2
8CR-7714A-00-00
Unavailable
34
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
35
SCREW, BINDING
98907-06014-00
Unavailable
36
DUCT
8CR-77194-00-00
Unavailable
37
DAMPER, NOISE 17
8CR-77277-00-00
Unavailable
38
LOUVER 5
8CR-77109-00-00
Unavailable
39
RIVET, BLIND(8CJ)
90267-48182-00
Unavailable
