Description

Price

1

STARTING MOTOR SET

8DS-W8180-00-00

Unavailable

2

STARTING MOTOR ASSY

8CW-81800-01-00

Unavailable

3

NUT(6TA)

95317-06600-00

$3.55

4

BOLT, SMALL FLANGE

95027-08030-00

$3.76

5

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

6

. WIRE, MINUS LEAD

8DK-82116-00-00

Unavailable

7

. WIRE, LEAD

8CW-82117-00-00

Unavailable

8

CLAMP(4MX)

90465-06376-00

$9.49

9

. CLAMP

90465-10381-00

Unavailable

10

CLAMP(4FM)

90464-15195-00

$4.41

11

CLAMP(4FM)

90464-15195-00

$4.41

12

CLAMP(4FM)

90464-15195-00

$4.41

13

DAMPER

8CW-82176-00-00

Unavailable

14

PIPE (L320)

8CW-8235W-01-00

Unavailable

15

CLIP(41W)

90467-08092-00

$9.49

16

. BRACKET, BATTERY

8DM-2199G-00-00

Unavailable

17

BOLT (796)

90109-06513-00

Unavailable

18

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

19

. SEAT, BATTERY

8DM-82122-00-00

Unavailable

20

. BAND, BATTERY

8DM-82131-00-00

Unavailable

21

. WIRE, PLUS LEAD

8CW-82115-00-00

Unavailable

22

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

24

GEAR 1

8DM-1760A-18-00

Unavailable

25

SCREW, CROSSRECESSED ROUND

90150-08008-00

Unavailable

26

. COVER, TERMINAL

8DM-81916-00-00

Unavailable

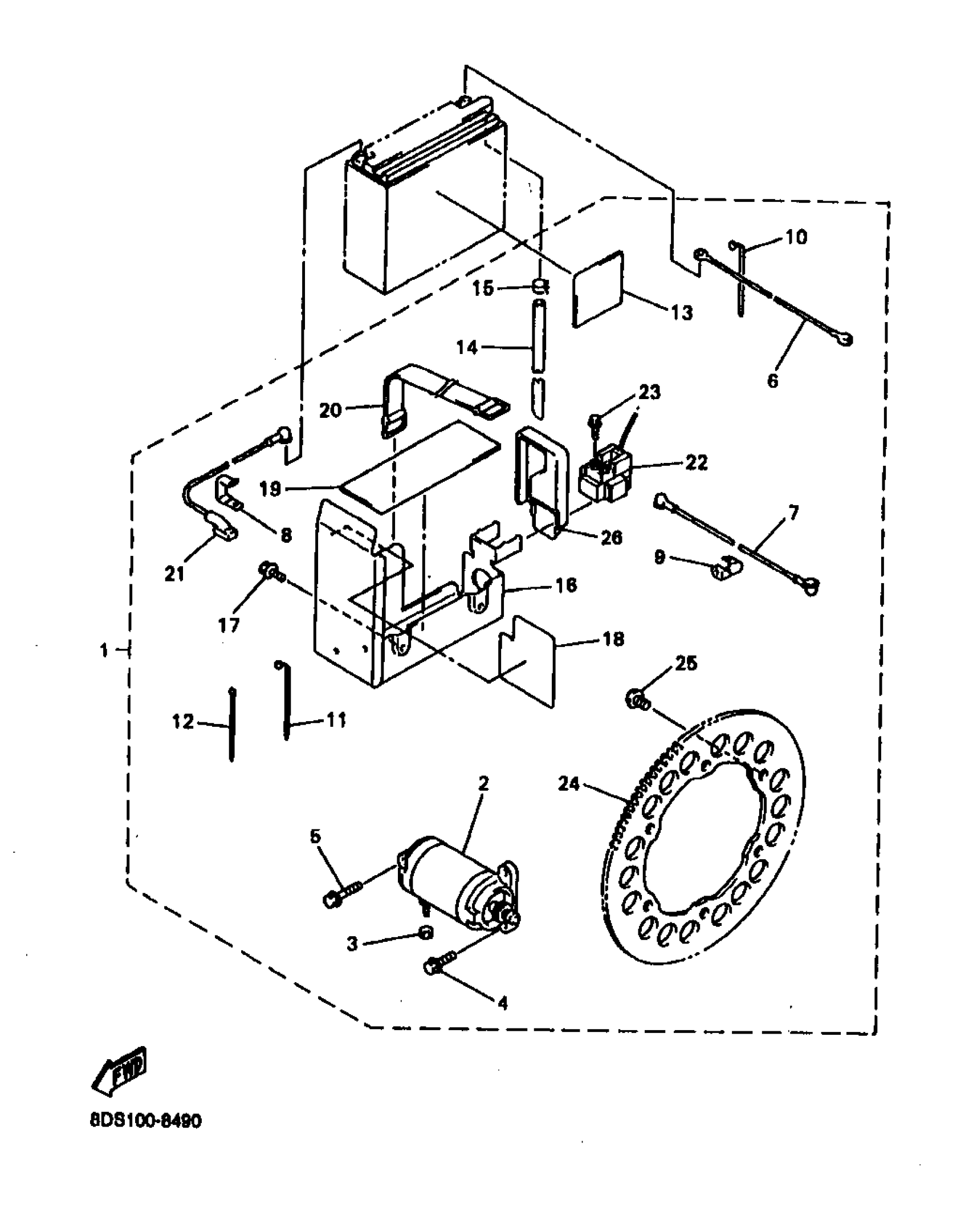

Yamaha VX700XTB (VMAX 700 XT) 8DM1 1998 ALTERNATE STARTING MOTOR SET VX700 Diagram

STARTING MOTOR SET

STARTING MOTOR ASSY

NUT(6TA)

BOLT, SMALL FLANGE

BOLT, FLANGE(4ES)

. WIRE, MINUS LEAD

. WIRE, LEAD

CLAMP(4MX)

. CLAMP

CLAMP(4FM)

CLAMP(4FM)

CLAMP(4FM)

DAMPER

PIPE (L320)

CLIP(41W)

. BRACKET, BATTERY

BOLT (796)

. SHIELD, HEAT

. SEAT, BATTERY

. BAND, BATTERY

. WIRE, PLUS LEAD

STARTER RELAY ASSY (RC19-016)

BOLT, SMALL FLANGE

GEAR 1

SCREW, CROSSRECESSED ROUND

. COVER, TERMINAL
