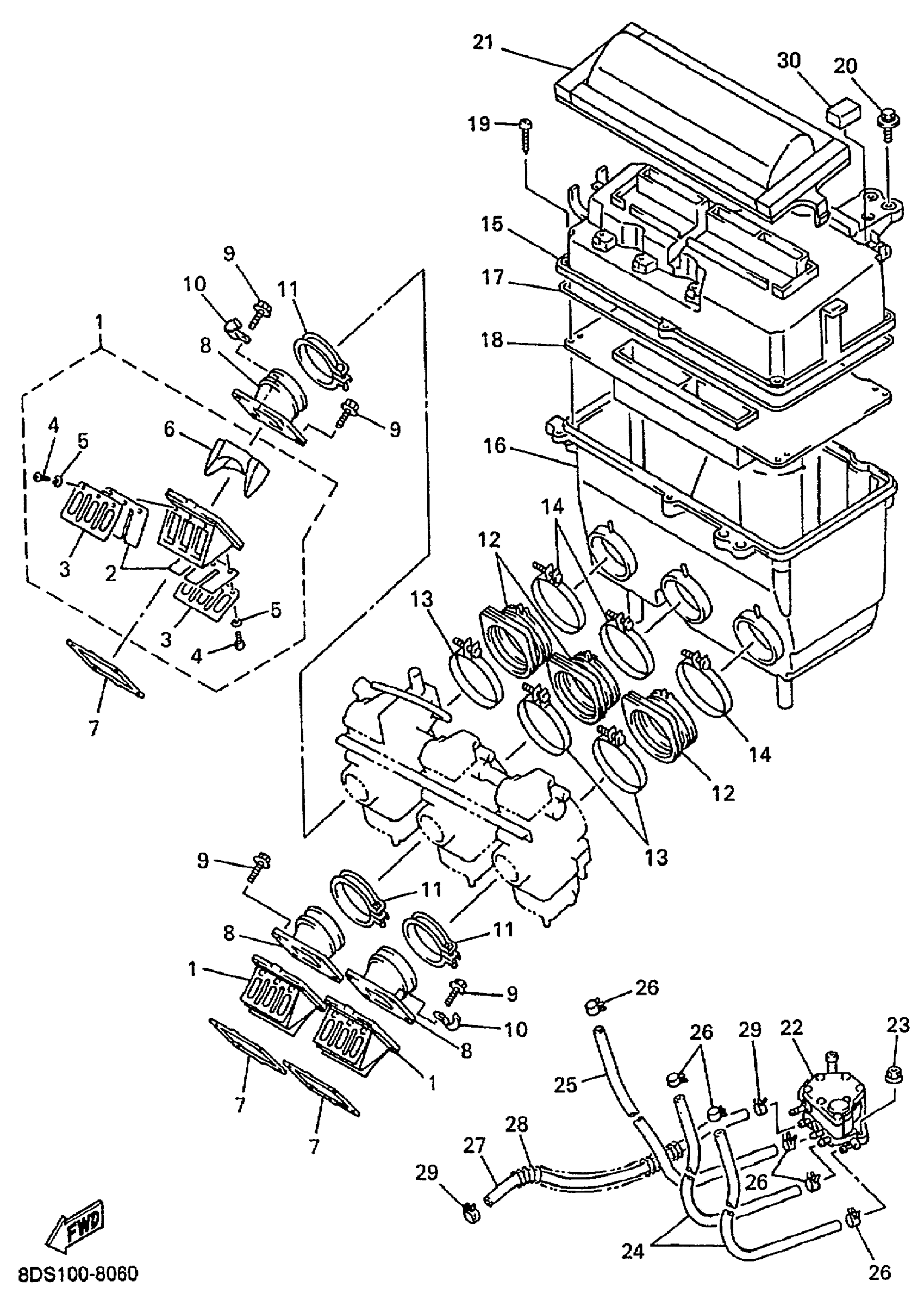

Yamaha VX700SXSB (VMAX 700 SXS (OHLINS FR SHOCKS)) 8DU1 1998 INTAKE Diagram

REED VALVE ASSY

4DA-13610-01-00

Unavailable

REED, VALVE

3SP-13613-01-00

$32.99

STOPPER, REED VALVE

8DJ-13616-00-00

$17.49

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

WASHER, SPRING

92990-03100-00

$8.49

. SPACER, REED VALVE

4DA-13625-00-00

Unavailable

GASKET, VALVE SEAT

8CH-13621-01-00

$14.49

MANIFOLD, INTAKE

8CH-13555-00-00

Unavailable

BOLT, FLANGE

95817-06020-00

$3.81

CLAMP (4G0)

90462-08078-00

$5.60

BAND

86M-13575-00-00

$19.49

JOINT, AIR CLEANER 1

8CH-14453-00-00

$25.99

HOSE CLAMP ASSY

90450-53008-00

$10.49

CLAMP, HOSE (29L)

90460-68230-00

$16.99

SILENCER, INTAKE 1

8CH-14431-01-00

Unavailable

SILENCER, INTAKE 2

8CH-14441-01-00

Unavailable

SEAL

51Y-14462-00-00

Unavailable

PLATE

8CH-14477-00-00

Unavailable

SCREW, TAPPING(82M)

90167-05043-00

Unavailable

BOLT, WITH WASHER(3FC)

90119-06163-00

Unavailable

ELEMENT ASSY, AIR CLEANER

8CH-14450-00-00

Unavailable

FUEL PUMP ASSY

8CH-24410-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

Unavailable

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

Unavailable

CLIP (8A1)

90467-09026-00

Unavailable

HOSE (L450)

90445-10144-00

Unavailable

SPRING, COMPRESSION(7MX)

90501-084J0-00

Unavailable

CLIP (3G0)

90467-10039-00

Unavailable

SPACER 2

8CR-24175-00-00

Unavailable
