Description

Price

1

IGNITION COIL ASSY

8DG-82310-00-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

CLAMP

90464-06247-00

Unavailable

4

PLUG CAP ASSY

8DG-82370-00-00

$49.99

5

C.D.I. UNIT ASSEMBLY

8CH-85540-00-00

Unavailable

6

SCREW, TAPPING

97707-60525-00

$8.49

7

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

8

BOLT, FLANGE

95817-06016-00

$2.75

9

NUT, FLANGE(4MV)

95707-06500-00

$1.23

10

WIRE HARNESS ASSEMBLY

8CH-82590-00-00

Unavailable

11

BOLT, FLANGE

95817-06016-00

$2.75

12

WIRE, LEAD

8CR-8471G-00-00

Unavailable

13

CLAMP

90464-20031-00

Unavailable

14

CLAMP(4FM)

90464-15195-00

$4.41

15

CLAMP(4FM)

90464-15195-00

$4.41

16

CLAMP

90464-13077-00

Unavailable

17

CLAMP

90464-25267-00

Unavailable

18

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

19

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

20

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

21

BOLT, FLANGE

95817-06016-00

$2.75

22

NUT, FLANGE(4MV)

95707-06500-00

$1.23

23

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

24

CAP, KEY

526-82579-00-00

Unavailable

25

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

26

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

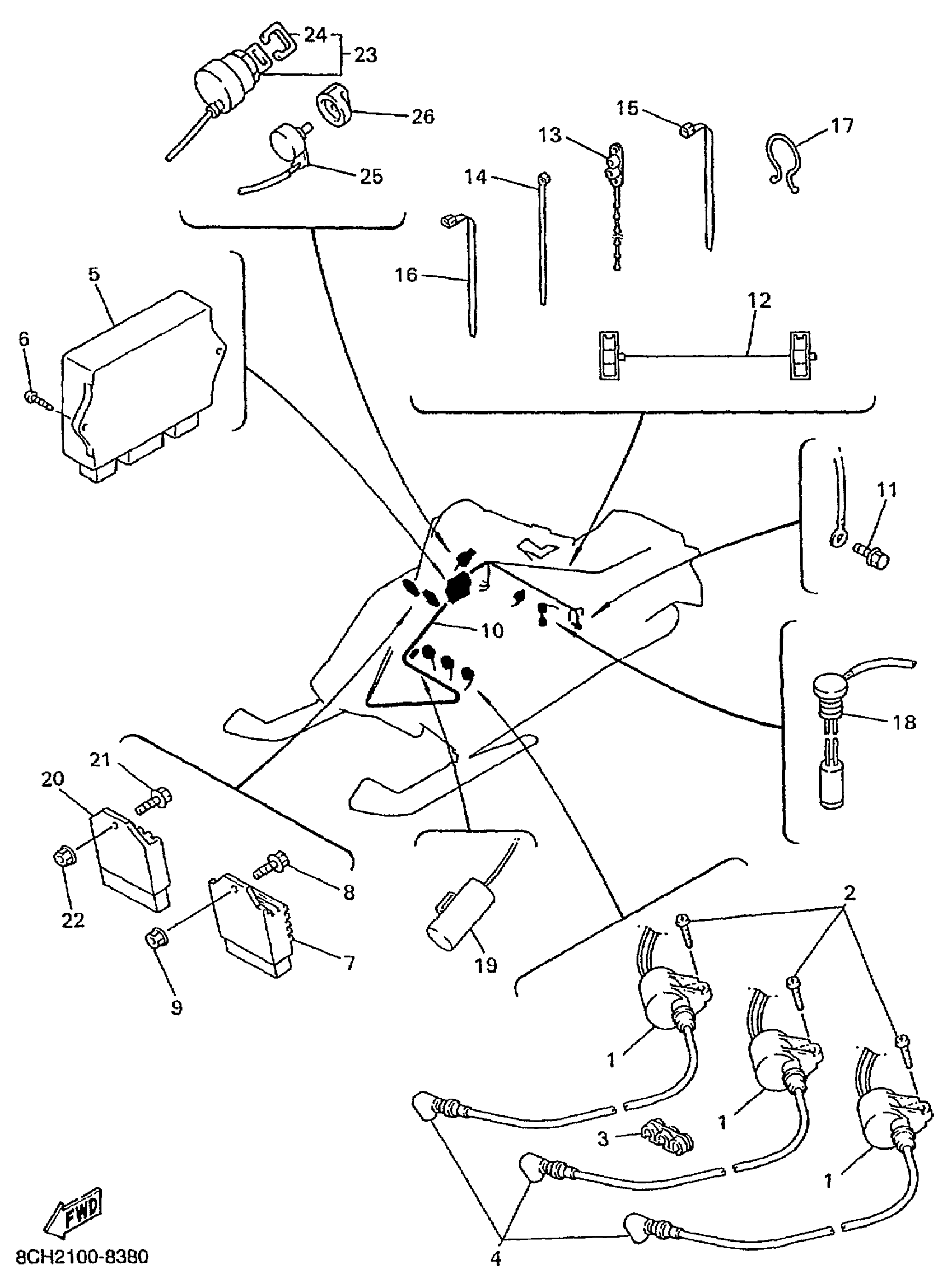

Yamaha VX700SXSB (VMAX 700 SXS (OHLINS FR SHOCKS)) 8DU1 1998 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

SCREW, PAN HEAD (76T)

CLAMP

PLUG CAP ASSY

C.D.I. UNIT ASSEMBLY

SCREW, TAPPING

RECTIFIER & REGULATOR ASSY

BOLT, FLANGE

NUT, FLANGE(4MV)

WIRE HARNESS ASSEMBLY

BOLT, FLANGE

WIRE, LEAD

CLAMP

CLAMP(4FM)

CLAMP(4FM)

CLAMP

CLAMP

OIL LEVEL GAUGE ASSY

CONDENSER, SMOOTHING

VOLTAGE REGULATOR ASSY

BOLT, FLANGE

NUT, FLANGE(4MV)

MAIN SWITCH ASSY

CAP, KEY

RESISTOR, VARIABLE

KNOB, VARIABLE RESISTOR
