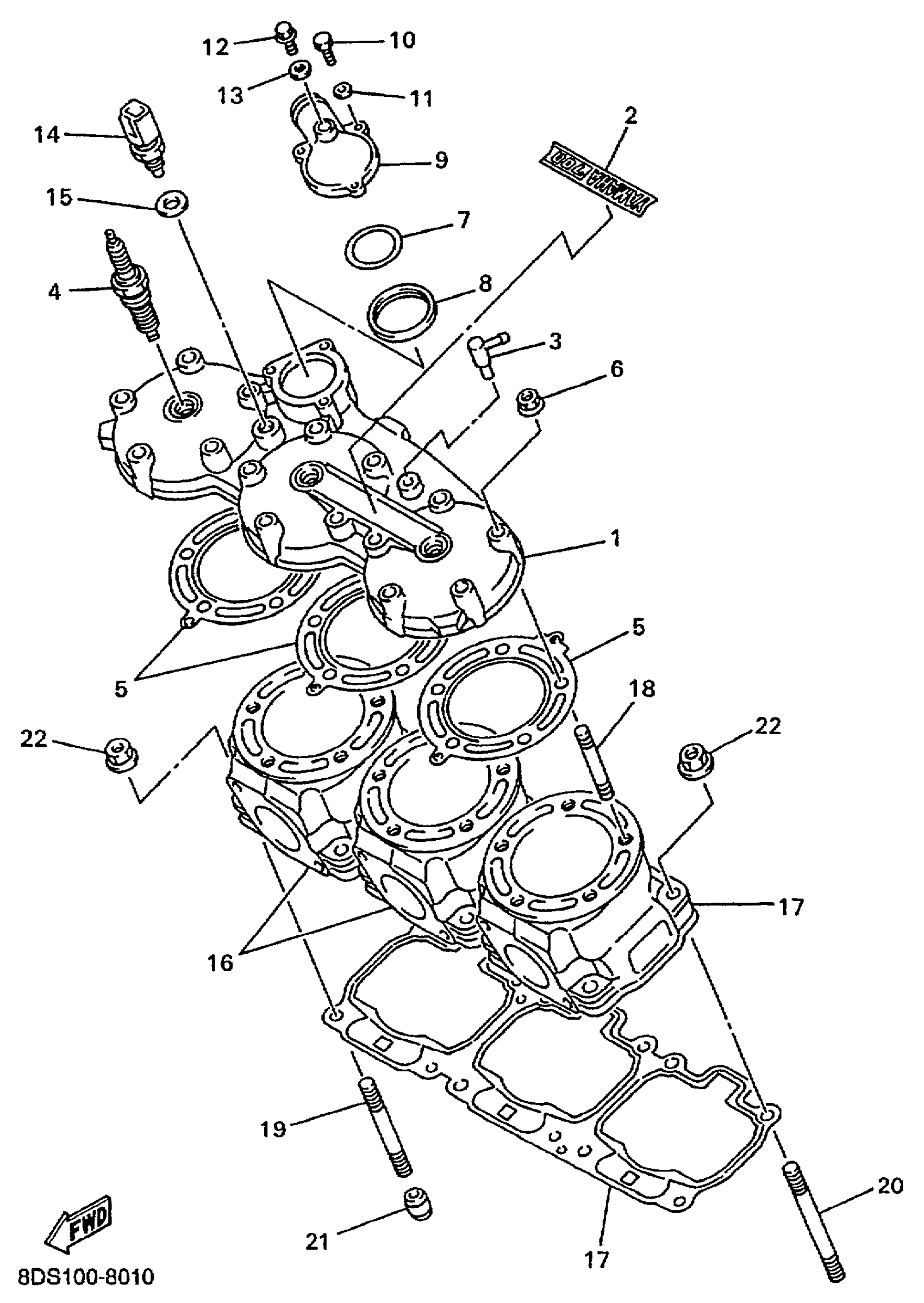

Yamaha VX700SXSB (VMAX 700 SXS (OHLINS FR SHOCKS)) 8DU1 1998 CYLINDER HEAD Diagram

HEAD, CYLINDER 1

8CH-11111-10-00

$528.99

EMBLEM

8CH-1111K-00-00

Unavailable

JOINT 1

8CH-12469-00-00

Unavailable

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

GASKET, CYLINDER HEAD 1

8CH-11181-01-00

$75.99

NUT(55X)

90179-08491-00

$8.49

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER(6TA)

92907-06600-00

$2.72

BOLT, FLANGE

95817-06012-00

$1.43

GASKET (4V2)

90430-06166-00

$3.76

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

WASHER, PLATE

90201-12790-00

$9.49

CYLINDER 1

8CH-11311-02-00

Unavailable

GASKET, CYLINDER

8CH-11351-00-00

Unavailable

BOLT, STUD (5X4)

90116-08392-00

Unavailable

BOLT STUD 363111790000

90116-08104-00

Unavailable

BOLT, STUD (8H8)

90116-08302-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

NUT(55X)

90179-08491-00

$8.49
