- VX700SXSB (VMAX 700 SXS (OHLINS FR SHOCKS)) 8DU1 1998
ALTERNATE SEMI DOUBLE SEAT ASSY DX

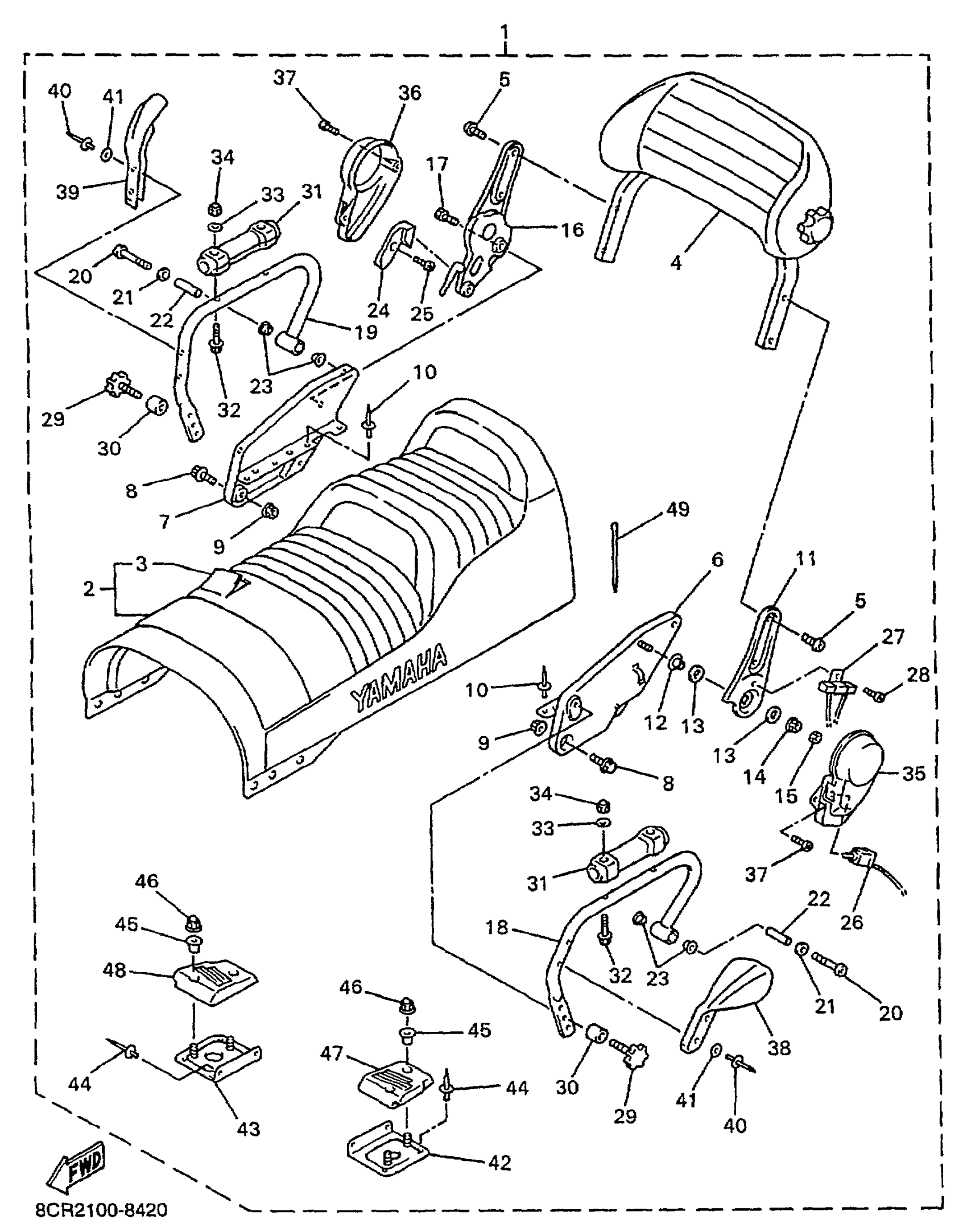

Yamaha VX700SXSB (VMAX 700 SXS (OHLINS FR SHOCKS)) 8DU1 1998 ALTERNATE SEMI DOUBLE SEAT ASSY DX Diagram
#
1
SEMI-DOUBLE SEAT ASSY (DX)
8CY-W247R-20-00
Unavailable
2
. DOUBLE SEAT ASSY
8CW-24730-20-00
Unavailable
3
.. COVER, SEAT
8CW-2470F-20-00
Unavailable
4
SEAT BACK ASSY
8DM-24790-00-00
Unavailable
5
BOLT, BUTTON HEAD
92017-10016-00
$8.49
6
STAY, FRONT 1
8DM-2474F-00-00
Unavailable
7
STAY, FRONT 2
8DM-2474G-00-00
Unavailable
8
BOLT, FLANGE
95817-08014-00
$5.60
9
NUT, FLANGE(JN5)
95707-08500-00
$3.13
10
RIVET, BLIND(8CH)
90267-47187-00
$2.34
11
ARM 2
8DM-2477R-00-00
Unavailable
12
COLLAR(4BP)
90387-083Y8-00
$18.99
13
WASHER, PLATE
90202-12236-00
Unavailable
14
NUT, FLANGE(JN5)
95707-08500-00
$3.13
15
NUT, HEXAGON SMALL
95317-08700-00
$9.49
16
SEAT LEVER ASSY
8DM-24760-00-00
Unavailable
17
BOLT, HEXAGON
97027-10014-00
Unavailable
18
. BRACKET, ASSIST GRIP 1
8DM-2474H-00-00
Unavailable
19
. BRACKET, ASSIST GRIP 2
8DM-2474J-00-00
Unavailable
20
BOLT,BUTTON
92017-10070-00
Unavailable
21
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
22
COLLAR 802473690000
90387-10090-00
Unavailable
23
COLLAR (8U7)
90387-145G7-00
Unavailable
24
LEVER, SEAT
8DM-2477F-00-00
Unavailable
25
SCREW, TAPPING(JN5)
97707-40008-00
Unavailable
26
SWITCH
8DM-82917-01-00
Unavailable
27
RESISTOR ASSY
8DM-85370-00-00
Unavailable
28
SCREW, BINDING
98907-06012-00
Unavailable
29
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
30
DAMPER, SEAT
8CW-24737-00-00
Unavailable
31
. ASSIST, GRIP
8CW-2474A-00-00
Unavailable
32
BOLT, FLANGE
95817-06040-00
Unavailable
33
WASHER(6TA)
92907-06200-00
Unavailable
34
NUT(4MY)
95307-06800-00
Unavailable
35
COVER
8DM-24796-00-00
Unavailable
36
COVER,2
8DM-2475X-01-00
Unavailable
37
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
38
PROTECTOR,1
8DM-2476U-00-00
Unavailable
39
PROTECTOR,2
8DM-2476V-00-00
Unavailable
40
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
41
WASHER, PLAIN (3GDF)
90201-051K1-00
Unavailable
42
. FOOTREST, REAR 1
8CW-27431-00-00
Unavailable
43
. FOOTREST, REAR 2
8CW-27441-00-00
Unavailable
44
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
45
COLLAR
90387-06158-00
Unavailable
46
NUT, CROWN(1FN)
90176-06055-00
Unavailable
47
FOOTREST, REAR 1
88T-27431-10-00
Unavailable
48
FOOTREST, REAR 2
88T-27441-10-00
Unavailable
49
CLAMP(4FM)
90464-15195-00
Unavailable
