- VX700SXSB (VMAX 700 SXS (OHLINS FR SHOCKS)) 8DU1 1998
ALTERNATE SEMI DOUBLE SEAT ASSY

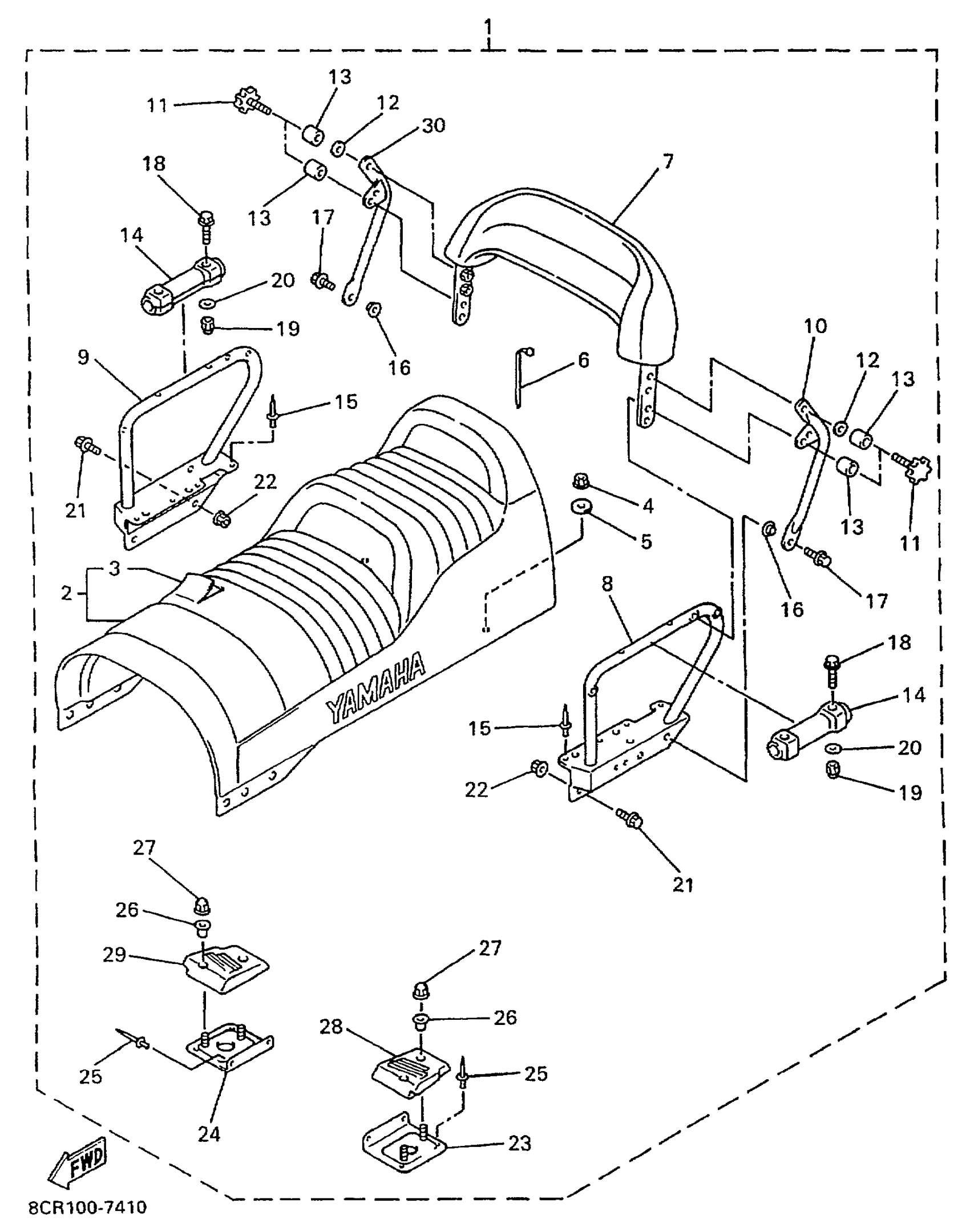

Yamaha VX700SXSB (VMAX 700 SXS (OHLINS FR SHOCKS)) 8DU1 1998 ALTERNATE SEMI DOUBLE SEAT ASSY Diagram
#
1
SEMI-DOUBLE SEAT ASSEMBLY
8CR-W2473-10-00
Unavailable
2
. DOUBLE SEAT ASSY
8CW-24730-20-00
Unavailable
3
.. COVER, SEAT
8CW-2470F-20-00
Unavailable
4
NUT, NYLON
95717-08300-00
$2.70
5
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
6
CLAMP(4FM)
90464-15195-00
$4.41
7
SEAT BACK ASSY
8CW-24790-10-00
Unavailable
8
BRACKET, ASSIST GRIP 1
8CW-2474H-01-00
Unavailable
9
BRACKET, ASSIST GRIP 2
8CW-2474J-01-00
Unavailable
10
BRACKET, SEAT BACK
8CW-24797-00-00
Unavailable
11
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
12
WASHER, PLATE (8M2)
90201-083A8-00
$2.02
13
DAMPER, SEAT
8CW-24737-00-00
$13.49
14
. ASSIST, GRIP
8CW-2474A-00-00
Unavailable
15
RIVET, BLIND(8CH)
90267-47187-00
$2.34
16
COLLAR
90387-08079-00
Unavailable
17
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
18
BOLT, FLANGE
95817-06040-00
Unavailable
19
NUT(4MY)
95307-06800-00
Unavailable
20
WASHER(6TA)
92907-06200-00
Unavailable
21
BOLT, FLANGE
95817-08014-00
Unavailable
22
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
23
. FOOTREST, REAR 1
8CW-27431-00-00
Unavailable
24
. FOOTREST, REAR 2
8CW-27441-00-00
Unavailable
25
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
26
COLLAR
90387-06158-00
Unavailable
27
NUT, CROWN(1FN)
90176-06055-00
Unavailable
28
FOOTREST, REAR 1
88T-27431-10-00
Unavailable
29
FOOTREST, REAR 2
88T-27441-10-00
Unavailable
30
BRACKET, SEAT
8CW-2479L-00-00
Unavailable
