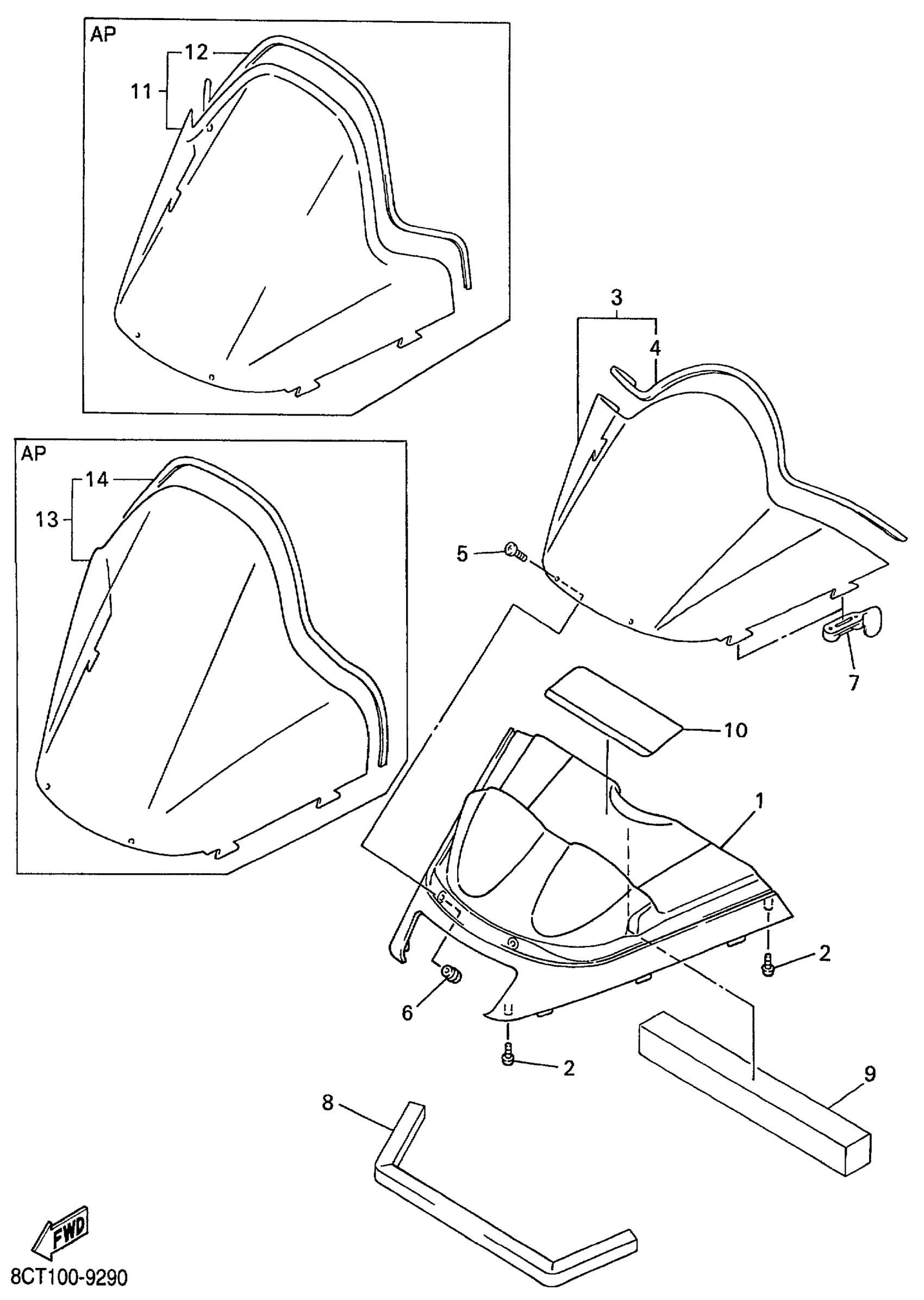

Yamaha VX700SXBC (VMAX 700 SX) 8CH3 1999 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8DF-77251-01-00

Unavailable

2

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

3

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

Unavailable

4

TRIM,UPPER

87K-77213-00-00

Unavailable

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

6

NUT(1KT)

90179-05523-00

$8.49

7

FASTNER

82H-77223-00-00

$9.99

8

DAMPER, NOISE 19

8CR-77279-00-00

Unavailable

9

SHIELD, NOISE 2

8CR-2199J-00-00

$59.99

10

LABEL, WARNING 1

8CR-77761-00-00

Unavailable

11

WINDSHIELD, VMAX

8CR-77210-00-XX

Unavailable

12

TRIM,UPPER

87K-77213-00-00

Unavailable

13

VENTURE SHIELD (STD TALL)

8DM-77210-00-XX

Unavailable

14

TRIM, UPPER

8DM-77213-00-00

Unavailable
