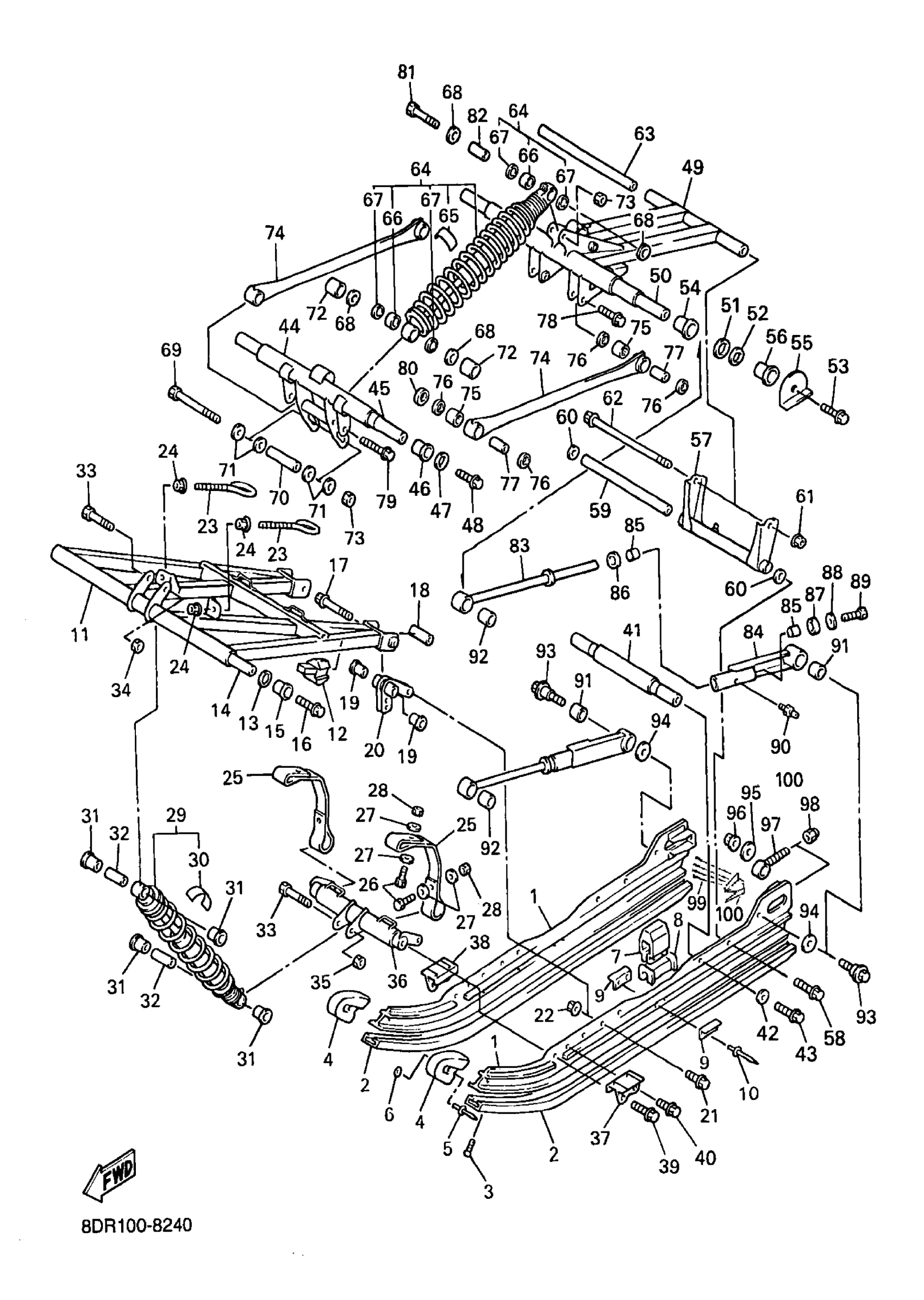

Yamaha VX700SXBC (VMAX 700 SX) 8CH3 1999 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING

8CR-W4741-00-00

$328.83

2

136 BLACK HYFAX

SMA-8CW92-70-BK

$28.00

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

4

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

5

RIVET BLIND

90267-48194-00

$2.20

6

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

7

DAMPER 2

8CM-47457-00-00

$8.78

8

SPACER

8CM-47341-00-00

$7.37

9

PLATE, DAMPER

8AX-47458-00-00

$8.08

10

RIVET, BLIND

90267-48199-00

$2.62

11

ARM, PIVOT 1

8CV-47331-01-00

$286.00

12

DAMPER 1

8DF-47456-10-00

Unavailable

13

WASHER, PLATE(8CJ)

90201-210U0-00

$7.77

14

SHAFT 1

8CR-47465-00-00

$77.26

15

BUSH, SOLID(8CJ)

90381-19111-00

$11.82

16

BOLT (8V0)

90109-10771-00

$5.00

17

BOLT, FLANGE

90105-10029-00

$3.23

18

COLLAR(8CJ)

90387-1009T-00

$19.80

19

BUSH, SOLID(8CJ)

90381-15112-00

$7.03

20

BRACKET 1

8CR-47415-00-00

Unavailable

21

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

22

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

23

HOOK 3

8CR-47448-00-00

$14.94

24

NUT, FLANGE(JN5)

95707-08500-00

$1.49

25

STOPPER 1

8CR-47495-00-00

$58.96

25

STOPPER 1

8CV-47495-00-00

$53.74

26

BOLT, HEXAGON

97017-06025-00

$2.98

27

WASHER, PLATE

90201-06747-00

$6.17

28

NUT, NYLON

95707-06300-00

$3.20

29

SHOCK ABSORBER 2

8EA-47481-00-00

Unavailable

30

LABEL, WARNING

4AA-22259-60-00

$6.02

31

BUSH, SOLID(8CM)

90381-14101-00

$7.48

32

COLLAR (8U7)

90387-105G5-00

$7.35

33

BOLT(88R)

90101-10738-00

$6.28

34

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

35

NUT, U

95617-10100-00

$6.18

36

BRACKET 4

8CR-47418-10-00

Unavailable

37

BRACKET 6

8DF-47464-01-00

Unavailable

38

BRACKET 5

8DF-47463-01-00

Unavailable

39

BOLT, FLANGE

95817-10030-00

$6.17

40

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

41

SHAFT 4

8CR-47486-00-00

Unavailable

42

WASHER, PLATE (17K)

90201-106F2-00

$7.66

43

BOLT, FLANGE

95817-10030-00

$6.17

44

BRACKET 2

8CR-47416-10-00

Unavailable

45

SHAFT 6

8CR-47488-00-00

Unavailable

46

BUSH, SOLID(8CM)

90381-22099-00

$9.85

47

WASHER, PLATE(1KE)

90201-207J5-00

$2.32

48

BOLT (8V0)

90109-10771-00

$5.00

49

ARM, PIVOT 2

8CR-47332-10-00

$225.54

50

SHAFT 2

8CR-47475-00-00

$105.03

50

SHAFT 2

8CV-47475-00-00

Unavailable

51

WASHER, PLATE (8V2)

90201-251G8-00

$7.49

52

WASHER, PLATE(8CJ)

90201-250T6-00

$7.43

53

BOLT (8V0)

90109-10771-00

$5.00

54

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

55

BRACKET, REAR 1

8CR-47426-11-00

Unavailable

56

BRACKET, REAR 2

8CR-47425-00-00

Unavailable

57

BRACKET 3

8CR-47417-01-00

Unavailable

58

BOLT, FLANGE

95817-10030-00

$6.17

59

SHAFT 3

82M-47485-02-00

Unavailable

60

WASHER PLATE (789)

90201-10136-00

$7.26

61

NUT, SELF-LOCKING

90185-08169-00

$7.09

62

BOLT, FLANGE

95827-08220-00

Unavailable

63

COLLAR (8U7)

90387-083G6-00

$9.75

64

SHOCK ABSORBER

8EA-47480-00-00

Unavailable

65

LABEL, WARNING

4AA-22259-60-00

$6.02

66

BEARING, CYLINDRICAL(8CM)

93315-21454-00

$24.15

67

OIL SEAL (2K8)

93109-14021-00

$10.60

68

WASHER, PLATE(8CM)

90202-14226-00

Unavailable

69

BOLT

90101-10782-00

Unavailable

70

COLLAR(8CJ)

90387-1009S-00

$18.00

71

WASHER, PLATE

90201-10039-00

$6.42

72

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

73

COLLAR(8CM)

90387-1404R-00

$28.72

74

NUT, U

95617-10100-00

$6.18

75

ROD, RELAY

8CX-47494-01-00

Unavailable

76

BEARING, CYLINDRICAL(8CM)

93315-21455-00

$25.09

77

OIL SEAL (2K8)

93109-14021-00

$10.60

78

COLLAR

90387-1007M-00

Unavailable

79

BOLT, FLANGE

95817-10035-00

$6.85

80

BOLT, FLANGE

95814-10040-00

$3.69

81

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

82

BOLT(88R)

90101-10738-00

$6.28

83

COLLAR(8CM)

90387-1007N-00

$18.32

84

ROD, CONTROL 1

8CR-4745A-01-00

$68.28

85

ROD, CONTROL 2

8CR-4745B-00-00

Unavailable

86

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

87

WASHER, PLATE(8CJ)

90202-16231-00

Unavailable

88

WASHER, PLATE(8CH)

90202-16233-00

$8.48

89

WASHER, PLATE (17K)

90201-106F2-00

$7.66

90

BOLT(6TD)

97017-10025-00

$6.82

91

NIPPLE, GREASE

93700-06M03-00

$7.15

92

BUSH, SOLID(8CM)

90380-22232-00

$20.92

93

BUSH, SOLID(8CJ)

90380-28235-00

$24.80

94

SCREW, REAR PIVOT

8DF-47367-09-00

$19.29

95

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

96

WASHER, PLATE

90201-101U2-00

$5.37

97

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

98

COLLAR 3

8K2-47479-01-00

$25.69

99

BRACKET

8V0-4741B-00-00

Unavailable

100

RIVET

8V0-47468-00-00

$7.54
