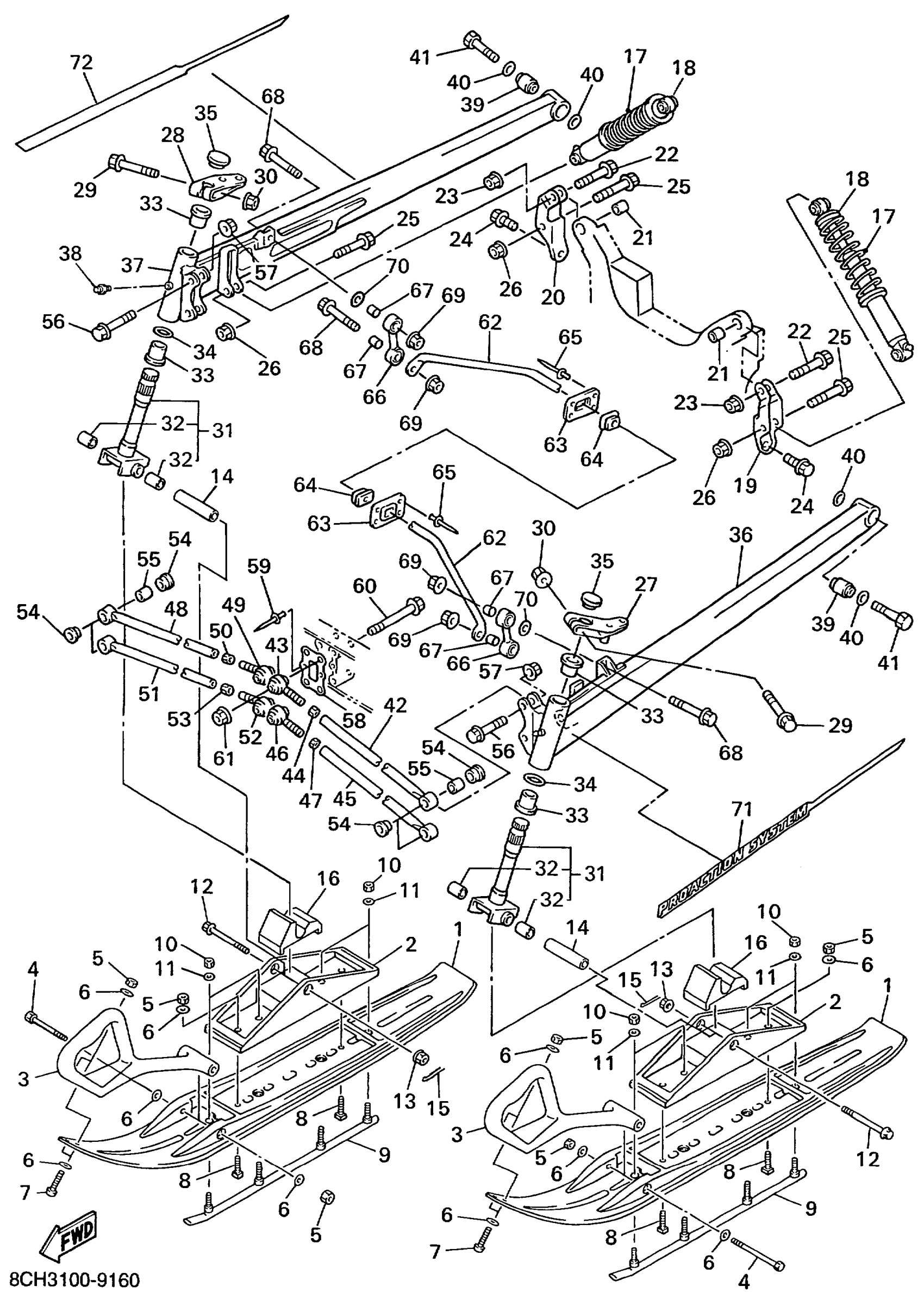

Yamaha VX700SXBC (VMAX 700 SX) 8CH3 1999 SKI Diagram
#
1
4.5 BLACK SKI PLASTIC GYT
GYT-8CR91-31-BK
Unavailable
2
SADDLE 1
8DF-23766-01-00
Unavailable
3
GYT/8DF SKI HANDLE BLUE
GYT-8DN91-35-BL
Unavailable
4
BOLT, REINF. HEAD 1
8DF-23755-00-00
Unavailable
5
NUT, NYLON
95717-08300-00
$2.70
6
WASHER(6TC)
92907-08200-00
$8.49
7
BOLT, BUTTON HEAD
92017-08040-00
$3.71
8
BOLT, SQUARE
90108-08002-00
$12.49
9
RUNNER 1
8DF-23731-10-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
12
BOLT, WASHER BASED(8AB)
90105-10712-00
$17.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
COLLAR
90387-1012H-00
$24.99
15
PIN, COTTER
91490-20025-00
$1.99
16
STOPPER 1
8CR-23743-00-00
Unavailable
17
SPRING ASSY 1
8CH-23760-10-00
Unavailable
18
ABSORBER ASSEMBLY 1
8EA-2376A-00-00
Unavailable
19
HOLDER, ABSORBER
8CV-2376J-00-00
Unavailable
20
HOLDER, ABSORBER 2
8CV-2377J-00-00
Unavailable
21
SPACER
8CV-23787-00-00
Unavailable
22
BOLT, FLANGE
95817-10040-00
Unavailable
23
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
24
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
25
BOLT, FLANGE
90105-10030-00
Unavailable
26
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
27
ARM, OUTSIDE 1
8CR-23851-00-00
Unavailable
28
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
29
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
30
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
31
COLUMN, SKI ASSY
8CR-23803-01-00
Unavailable
32
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
33
BUSH, SOLID
90381-25115-00
Unavailable
34
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
35
CAP 1
8CR-23741-10-00
Unavailable
36
ARM, FRONT 1
8DF-2382E-01-00
Unavailable
37
ARM, FRONT 2
8DF-2382F-01-00
Unavailable
38
NIPPLE, GREASE
93700-06M03-00
Unavailable
39
DAMPER
8CR-2516A-00-00
Unavailable
40
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
41
BOLT(8CJ)
90101-12046-00
Unavailable
42
ARM, CONTROL 1
8DF-2384E-00-00
Unavailable
43
JOINT 2
8DN-23823-00-00
Unavailable
44
NUT, HEXAGON
95337-12600-00
Unavailable
45
ARM, CONTROL 2
8DF-2384F-00-00
Unavailable
46
JOINT 3
8DN-23832-00-00
Unavailable
47
NUT
95314-14600-00
Unavailable
48
ARM, CONTROL 1
8DF-2384E-00-00
Unavailable
49
JOINT 2
8DN-23823-00-00
Unavailable
50
NUT, HEXAGON
95337-12600-00
Unavailable
51
ARM, CONTROL 2
8DF-2384F-00-00
Unavailable
52
JOINT 3
8DN-23832-00-00
Unavailable
53
NUT
95314-14600-00
Unavailable
54
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
55
COLLAR(8CJ)
90387-1009K-00
Unavailable
56
BOLT, FLANGE
90105-10030-00
Unavailable
57
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
58
WASHER
8DF-23779-00-00
Unavailable
59
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
60
BOLT, FLANGE
90105-124A2-00
Unavailable
61
NUT, U FLANGE
95607-12200-00
Unavailable
62
BAR, STABILIZER FRONT
8CV-2386E-00-00
Unavailable
63
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
64
BUSH, STABILIZER FRONT
8CR-2386G-00-00
Unavailable
65
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
66
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
67
COLLAR(8V7)
90387-087L3-00
Unavailable
68
BOLT, FLANGE
95817-08040-00
Unavailable
69
NUT, SELF-LOCKING
90185-08169-00
Unavailable
70
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
71
EMBLEM 15
8EA-77371-00-00
Unavailable
72
EMBLEM 16
8EA-77372-00-00
Unavailable
