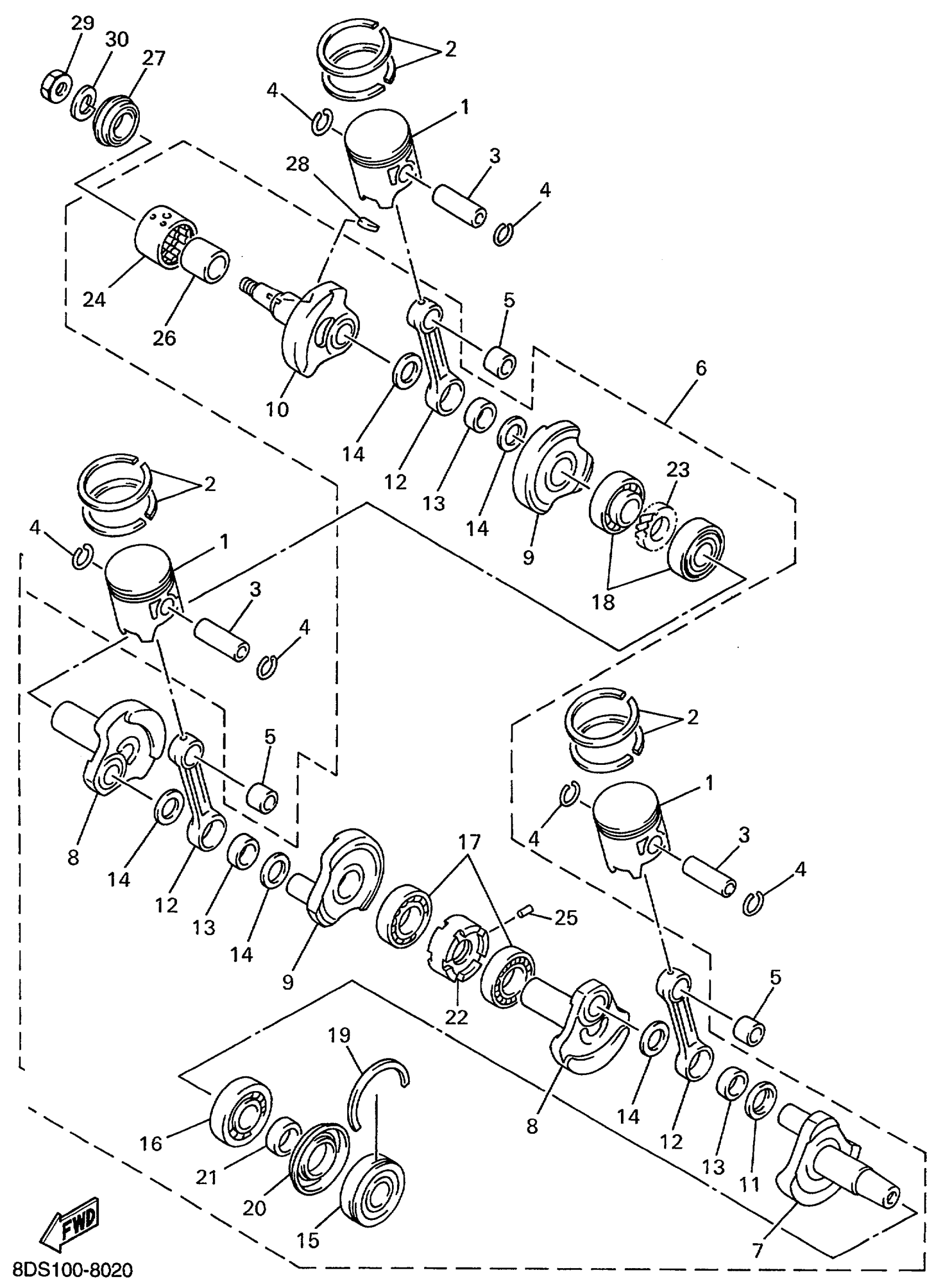

Yamaha VX700SXBC (VMAX 700 SX) 8CH3 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8CH-11631-00-A0

$129.12

1

PISTON (STD)

8DG-11631-00-A0

Unavailable

2

PISTON RING SET (STD)

8CH-11603-00-00

$64.37

2

PISTON RING SET (STD)

8DG-11603-00-00

$58.28

3

PIN, PISTON

8H8-11633-00-00

$30.72

4

CIRCLIP (8H0)

93450-21053-00

$3.43

5

BEARING

93310-32009-00

$47.12

6

CRANKSHAFT ASSY

8CH-11400-12-00

$1,953.99

7

CRANK 1

8CH-11412-00-00

$399.78

8

CRANK 2

8CH-11422-00-00

Unavailable

9

. CRANK 3

8CH-11432-00-00

Unavailable

10

CRANK 4

8CH-11442-00-00

$217.34

11

WASHER, CRANK PIN

8CH-11685-00-00

$31.08

12

ROD, CONNECTING

8CH-11651-00-00

Unavailable

13

BEARING

93310-527S9-00

$72.14

14

WASHER, PLATE

90201-277R4-00

Unavailable

15

BEARING

93306-30715-00

$141.32

16

BEARING

93306-30716-00

$85.92

17

. BEARING

93306-28201-00

Unavailable

18

. BEARING

93306-28202-00

Unavailable

19

CIRCLIP (834)

93440-80023-00

$12.78

20

OIL SEAL

93103-45179-00

$70.60

21

. COLLAR

8CH-11478-00-00

Unavailable

22

. SEAL, LABYRINTH 1

8CH-11515-00-00

Unavailable

23

GEAR, CRANK SHAFT

8CH-11434-00-00

Unavailable

24

BEARING

93390-00028-00

Unavailable

25

PIN, SPRING (663)

91690-30010-00

$5.46

26

BEARING

8DF-1142A-01-00

Unavailable

27

OIL SEAL(82M)

93103-32153-00

$26.02

28

KEY, WOODRUFF (8R9)

90280-05033-00

$9.10

29

NUT

90170-16425-00

$6.60

30

WASHER(6TD)

92907-16600-00

$5.86
