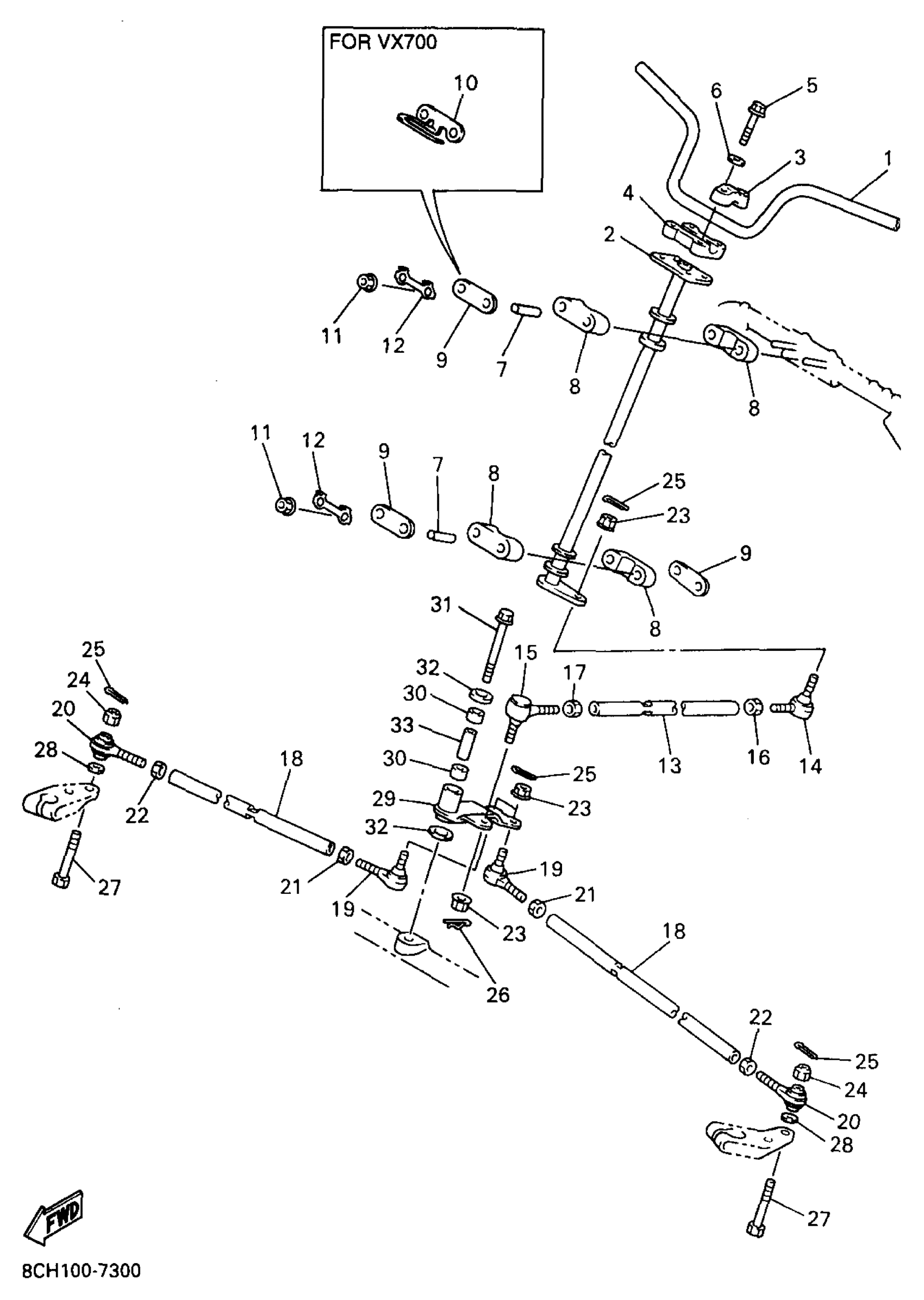

Yamaha VX700SXA (VMAX 700 SX) 8CH1 1997 STEERING Diagram
#
1
COLUMN, STEERING
8CR-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8CR-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
WASHER(6TA)
92907-08600-00
$3.03
7
COLLAR(85G)
90387-106T4-00
$14.99
8
PLANE BEARING, STEERING
8DF-23812-00-00
$8.99
9
HOLDER, BEARING
8CR-23872-00-00
Unavailable
9
HOLDER, BEARING
8CR-23872-00-00
Unavailable
10
HOLDER, BEARING
8CH-23872-00-00
Unavailable
11
NUT, NYLON
95717-08300-00
$2.70
12
WASHER, LOCK 1
1UY-23894-01-00
$7.99
13
ROD, STEERING RELAY
8CR-23821-00-00
Unavailable
14
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
15
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
16
NUT (3WP1)
95317-10700-00
Unavailable
17
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
18
ROD, TIE
8CV-23831-00-00
Unavailable
19
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
20
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
21
NUT (3WP1)
95317-10700-00
Unavailable
22
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
23
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
24
NUT, NYLON
95707-10300-00
Unavailable
25
PIN, COTTER
91490-25020-00
Unavailable
26
CLIP 136253750000
90468-12006-00
Unavailable
27
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
28
WASHER PLATE (3L6)
90201-08759-00
Unavailable
29
ARM, IDLER
99999-03123-00
Unavailable
30
BUSH, BIMETAL FORMED
90384-20231-00
Unavailable
31
BOLT, WASHER BASED (26H)
90105-12252-00
Unavailable
32
WASHER, PLATE(47X)
90201-121J0-00
Unavailable
33
COLLAR
8CR-2412G-00-00
Unavailable
