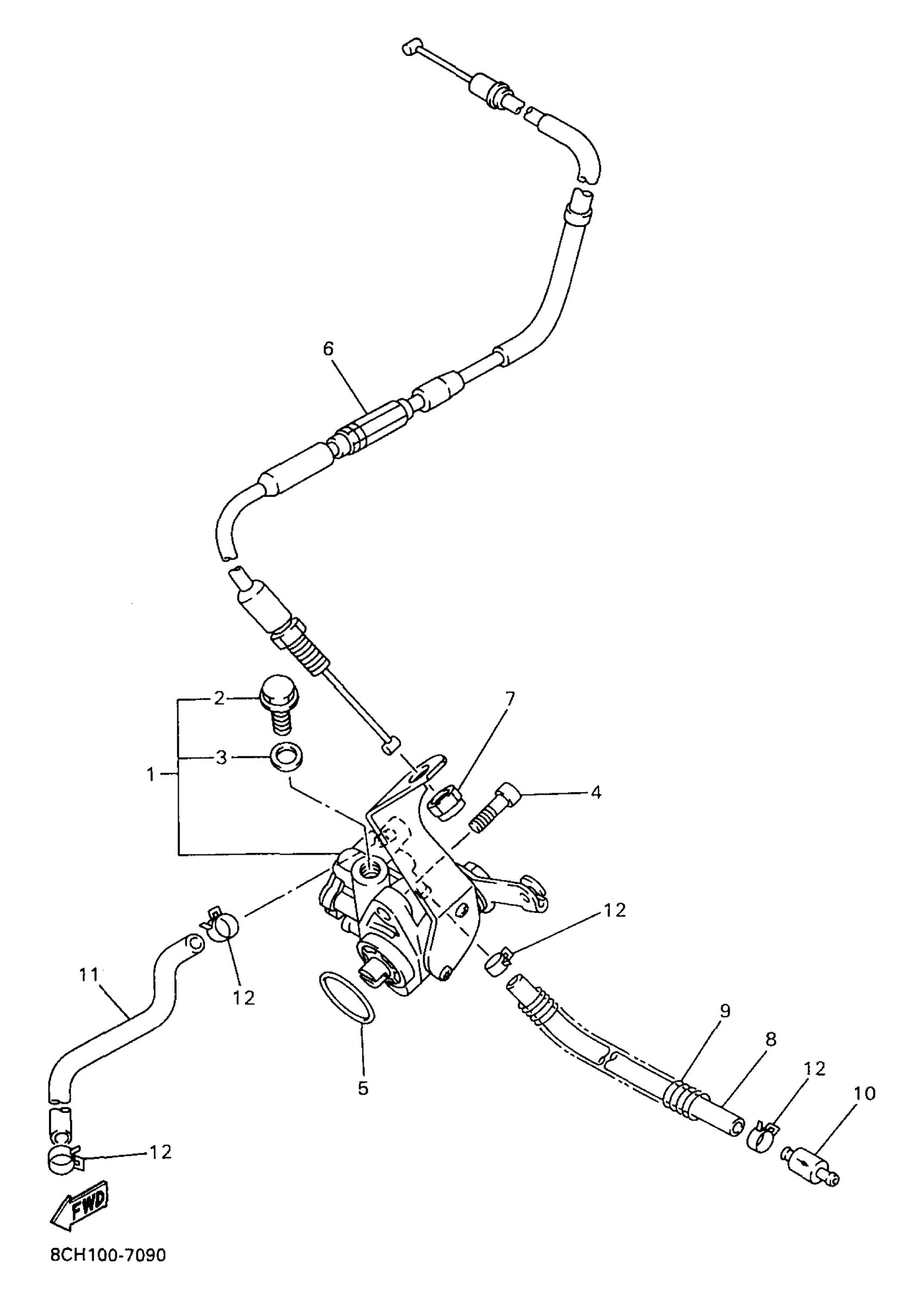

Yamaha VX700SXA (VMAX 700 SX) 8CH1 1997 OIL PUMP FOR VX700 Diagram

#

Description
Price

1

OIL PUMP ASSY

8CH-13100-00-00

Unavailable

2

BOLT, BREATHER

89A-13185-00-00

Unavailable

3

. GASKET, BREATHER BOLT

89A-13187-00-00

Unavailable

4

BOLT,SOCKET

91317-05014-00

$6.23

5

O-RING(3SB)

93210-20712-00

$3.65

6

PUMP CABLE ASSY

8CH-26320-01-00

Unavailable

7

NUT, NYLON

95717-08300-00

$2.38

8

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.55

9

SPRING, COMPRESSION

90501-085L6-00

$3.52

10

CHECK VALVE

8CH-1316A-00-00

$37.49

11

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.55

12

CLIP(42X)

90467-07093-00

$1.65
