1997 Yamaha Vmax 700 SX (VX700SXA) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1997 Yamaha Vmax 700 SX (VX700SXA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

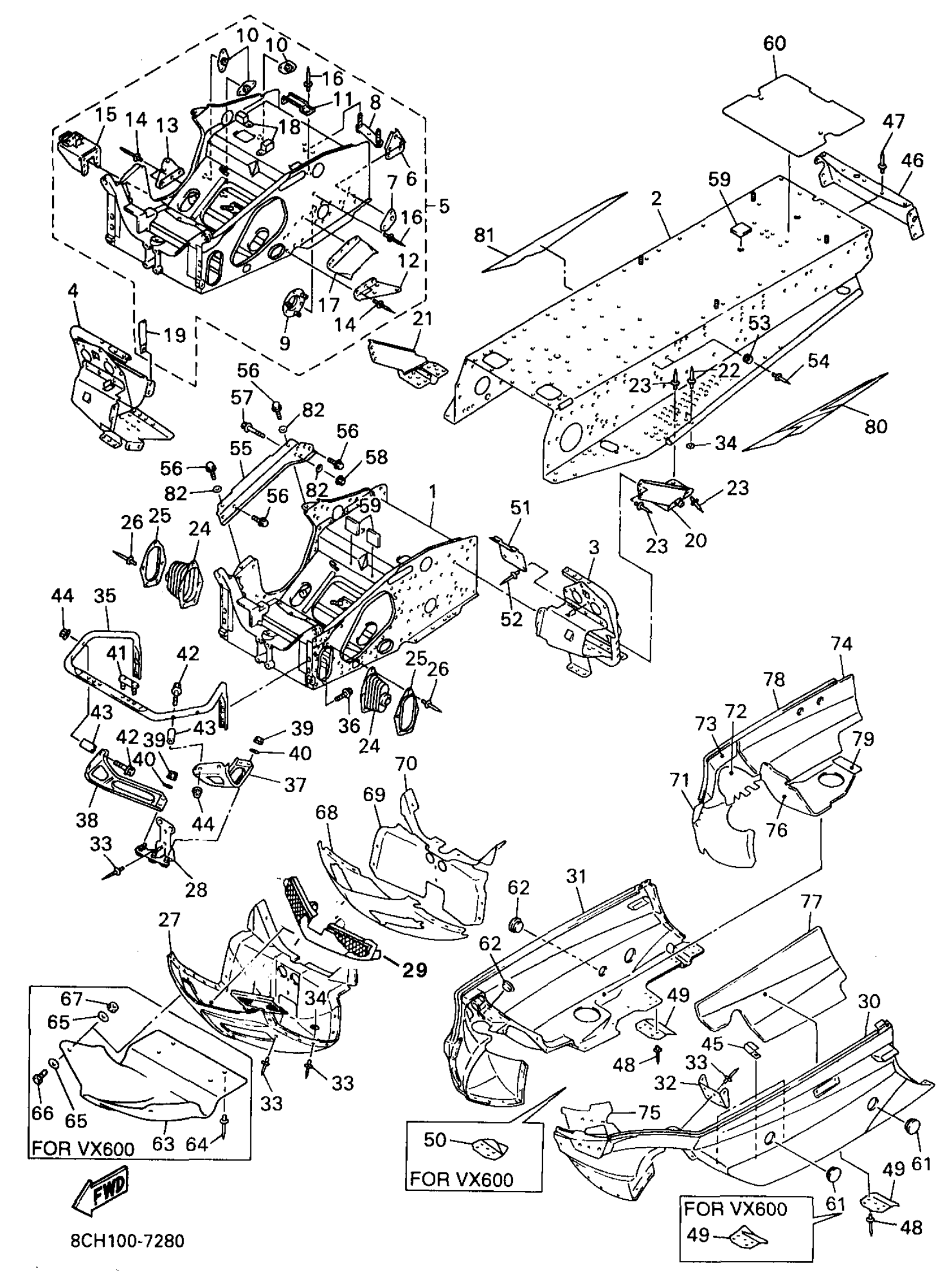

1997 Yamaha Vmax 700 SX (VX700SXA) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

8CR-21940-07-00

—
Out of stock

2

REAR FRAME COMP.

8CR-21950-06-00

1
Out of stock

3

FOOTREST COMP. 1

8CR-21960-08-00

1
Out of stock

4

FOOTREST COMP. 2

8CR-21970-08-00

1
Out of stock

5

FRAME CONNECTION KIT (8CR-W2195-01-00)

8CR-W2195-00-00

1
Out of stock

6

BRACKET, MAIN TRACK 1

8CR-21943-01-00

1
Out of stock

7

BRACKET, MAIN TRACK 2

8CR-21953-00-00

1
Out of stock

8

BRACKET 3

8CR-2196F-00-00

—
Out of stock

9

. HOUSING, REINF SUB-ASSY (LH)

8CR-21920-00-00

1
Out of stock

10

BRACKET, CHAIN HOUSING

8CR-21939-01-00

1
Out of stock

11

CLAMP, FUEL PIPE

8CR-21977-00-00

—
Out of stock

12

PANEL, SUB FRAME 6

8CR-21917-00-00

—
Out of stock

13

PANEL, SUB-FRAME 7

8CR-21918-00-00

—
Out of stock

14

RIVET, BLIND

90267-48016-00

1
Out of stock

15

STAY, MUFFER

8CR-2194J-00-00

—
Out of stock

16

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

17

COVER 2

8CR-2198G-00-00

—
Out of stock

18

CLAMP(8CR)

90461-06142-00

—
Out of stock

19

CLAMP

90462-10236-00

—
Out of stock

20

PIPE, PIVOT 1

8DF-21941-00-00

1
Out of stock

21

PIPE, PIVOT 2

8DF-21951-00-00

—
Out of stock

22

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

23

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

24

COVER 1

8CR-2198F-00-00

1
Out of stock

25

PLATE, STRG BRACKET 1

8CR-2195E-00-00

—
Out of stock

26

RIVET, BLIND

90267-47197-00

—
Out of stock

27

PANEL, SUB FRAME 1

8CR-21912-01-00

1
Out of stock

28

PLATE, BACK UP

99999-03119-00

1
Out of stock

29

STAY 4

8CR-77128-00-00

1
Out of stock

30

FRAME UNDER 1

8CR-2196A-03-00

1
Out of stock

31

FRAME, UNDER 2

8CR-2196E-03-00

1
Out of stock

32

BRACKET, GUARD FITTING

8CR-21972-00-00

1
Out of stock

33

RIVET, BLIND

90267-48018-00

—
Out of stock

34

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

35

BUMPER, FRONT 2

8CR-77512-00-00

—
Out of stock

36

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

37

BRACKET, FRONT

8CR-21949-10-00

—
Out of stock

38

BRACKET, FRONT BUMPER

8CR-21959-10-00

1
Out of stock

39

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

40

WASHER, PLATE(52G)

90201-064J1-00

—
Out of stock

41

BRACKET, 5

8CR-2196M-00-00

—
Out of stock

42

BOLT, FLANGE

95817-08040-00

—
Out of stock

43

COLLAR(8CR)

90387-0810F-00

—
Out of stock

44

NUT, FLANGE(JN5)

95707-08500-00

—
Out of stock

45

CLAMP(4MX)

90465-06376-00

—
Out of stock

46

REINEFORCEMENT, FRAME REAR 1

8CR-21923-02-00

1
Out of stock

47

RIVET, BLIND(3JB)

90267-48095-00

—
Out of stock

48

RIVET, BLIND

90267-48018-00

—
Out of stock

49

PROTECTOR, FRAME

8CH-21978-00-00

1
Out of stock

49

PROTECTOR, FRAME

8CR-21978-00-00

—
Out of stock

50

PROTECTOR, FRAME

8CR-2197B-00-00

—
Out of stock

51

HOOK

8CR-21973-00-00

1
Out of stock

52

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

53

BUTT0N

81K-2471F-00-00

—
Out of stock

54

RIVET, BLIND(81K)

90267-40135-00

1
Out of stock

55

REINEFORCEMENT, FRAME REAR 1

8CR-21921-01-00

1
Out of stock

56

BOLT, FLANGE

95817-10020-00

—
Out of stock

57

BOLT, FLANGE

95817-10060-00

—
Out of stock

58

NUT, FLANGE(8AB)

95707-10500-00

—
Out of stock

59

COVER 3

8CR-2198J-00-00

—
Out of stock

60

SEAL

8CR-2475M-00-00

1
Out of stock

61

PLUG (8H8)

90338-44093-00

—
Out of stock

62

PLUG(8CJ)

90338-30256-00

—
Out of stock

63

PROTECTOR, FRAME

8CV-2197E-00-00

1
Out of stock

64

RIVET, BLIND(8BH)

90267-48174-00

—
Out of stock

65

WASHER, PLATE

90201-06747-00

—
Out of stock

66

SCREW, BINDING

98907-06025-00

—
Out of stock

67

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock

68

LINING, SHROUD 1

8CR-77261-00-00

1
Out of stock

69

LINING, SHROUD 2

8CR-77262-00-00

—
Out of stock

70

LINING, SHROUD 3

8CR-77263-00-00

1
Out of stock

71

LINING, SHROUD 4

8CR-77264-00-00

—
Out of stock

72

LINING, SHROUD 5

8CR-77265-00-00

1
Out of stock

73

LINING, SHROUD 6

8CR-77266-00-00

1
Out of stock

74

LINING, SHROUD 7

8CR-77267-01-00

—
Out of stock

75

LINING,SHROUD 8

8CR-77268-00-00

—
Out of stock

76

LINING, SHROUD 9

8CR-77269-00-00

1
Out of stock

77

DAMPER, NOISE 11

8CR-77271-00-00

—
Out of stock

78

TAPE, 5

8CR-7717J-00-00

1
Out of stock

79

TRIM 1

8CR-77165-00-00

—
Out of stock

80

EMBLEM 1

8CV-77351-01-00

1
Out of stock

81

EMBLEM 2

8CV-77352-01-00

1
Out of stock

82

WASHER, PLAIN(3BM)

92907-10200-00

—
Out of stock
