Description

Price

1

HEAD,CYLINDER 1

8CH-11111-01-00

Unavailable

2

EMBLEM

8CH-1111K-00-00

Unavailable

3

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

Unavailable

4

GASKET, CYLINDER HEAD 1

8CH-11181-01-00

$75.99

5

NUT(55X)

90179-08491-00

$8.49

6

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

7

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

8

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER(6TA)

92907-06600-00

$2.72

11

BOLT, FLANGE

95817-06012-00

$1.43

12

GASKET (4V2)

90430-06166-00

$3.76

13

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

14

WASHER, PLATE

90201-12790-00

$9.49

15

CYLINDER 1

8CH-11311-02-00

Unavailable

16

GASKET, CYLINDER

8CH-11351-00-00

Unavailable

17

BOLT, STUD (5X4)

90116-08392-00

Unavailable

18

BOLT STUD 363111790000

90116-08104-00

Unavailable

19

BOLT, STUD (8H8)

90116-08302-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

21

NUT(55X)

90179-08491-00

$8.49

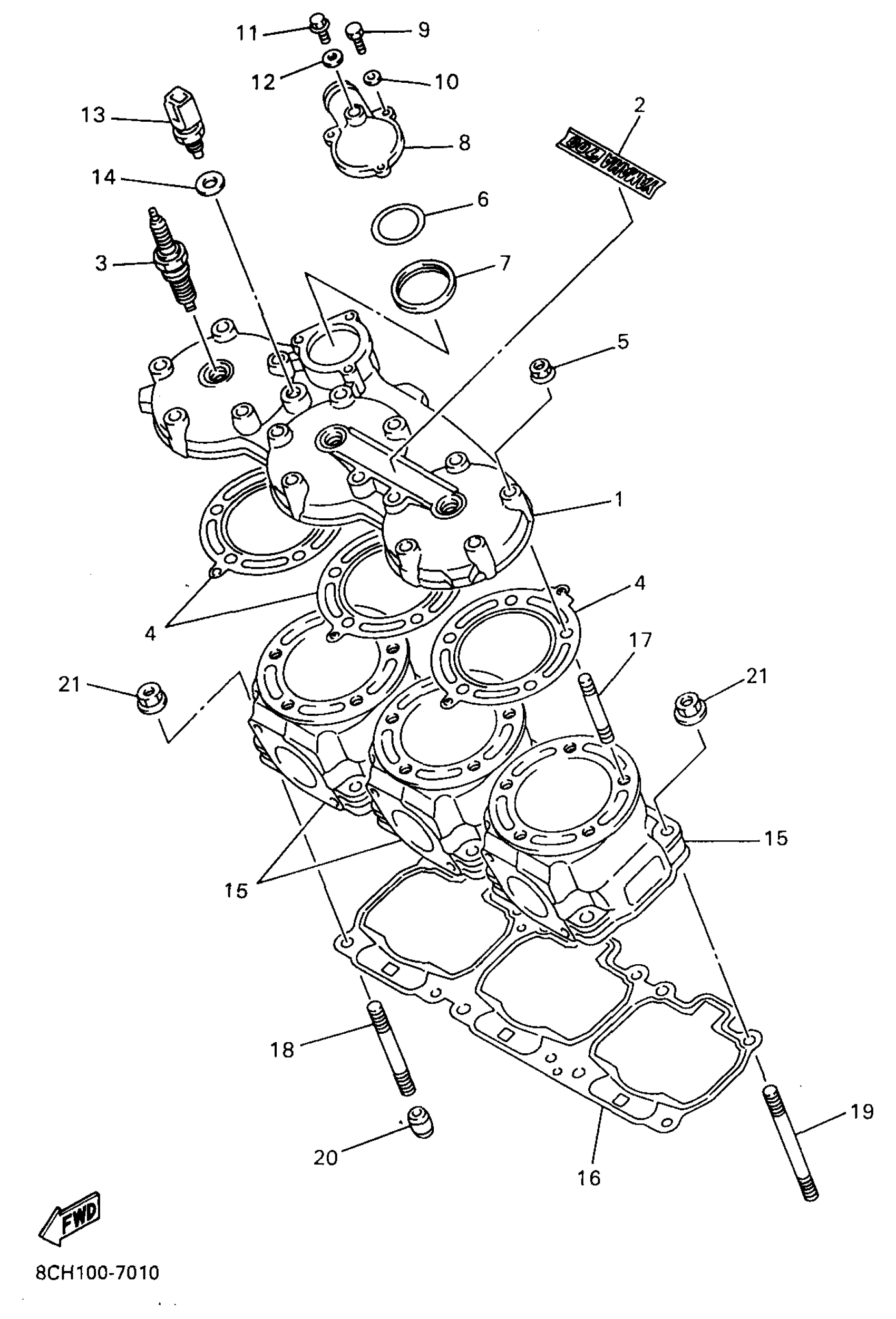

Yamaha VX700SXA (VMAX 700 SX) 8CH1 1997 CYLINDER HEAD FOR VX700 Diagram

HEAD,CYLINDER 1

EMBLEM

BR9ES NGK SCREW TOP PLUG 4PK

GASKET, CYLINDER HEAD 1

NUT(55X)

WASHER, PLATE (8U9)

SEAL, THERMOSTAT

COVER, THERMOSTAT

BOLT, HEXAGON

WASHER(6TA)

BOLT, FLANGE

GASKET (4V2)

THERMOSENSOR ASSY

WASHER, PLATE

CYLINDER 1

GASKET, CYLINDER

BOLT, STUD (5X4)

BOLT STUD 363111790000

BOLT, STUD (8H8)

PIN, DOWEL(3VD)

NUT(55X)
