- VX700SXA (VMAX 700 SX) 8CH1 1997
CARBURETOR FOR VX700

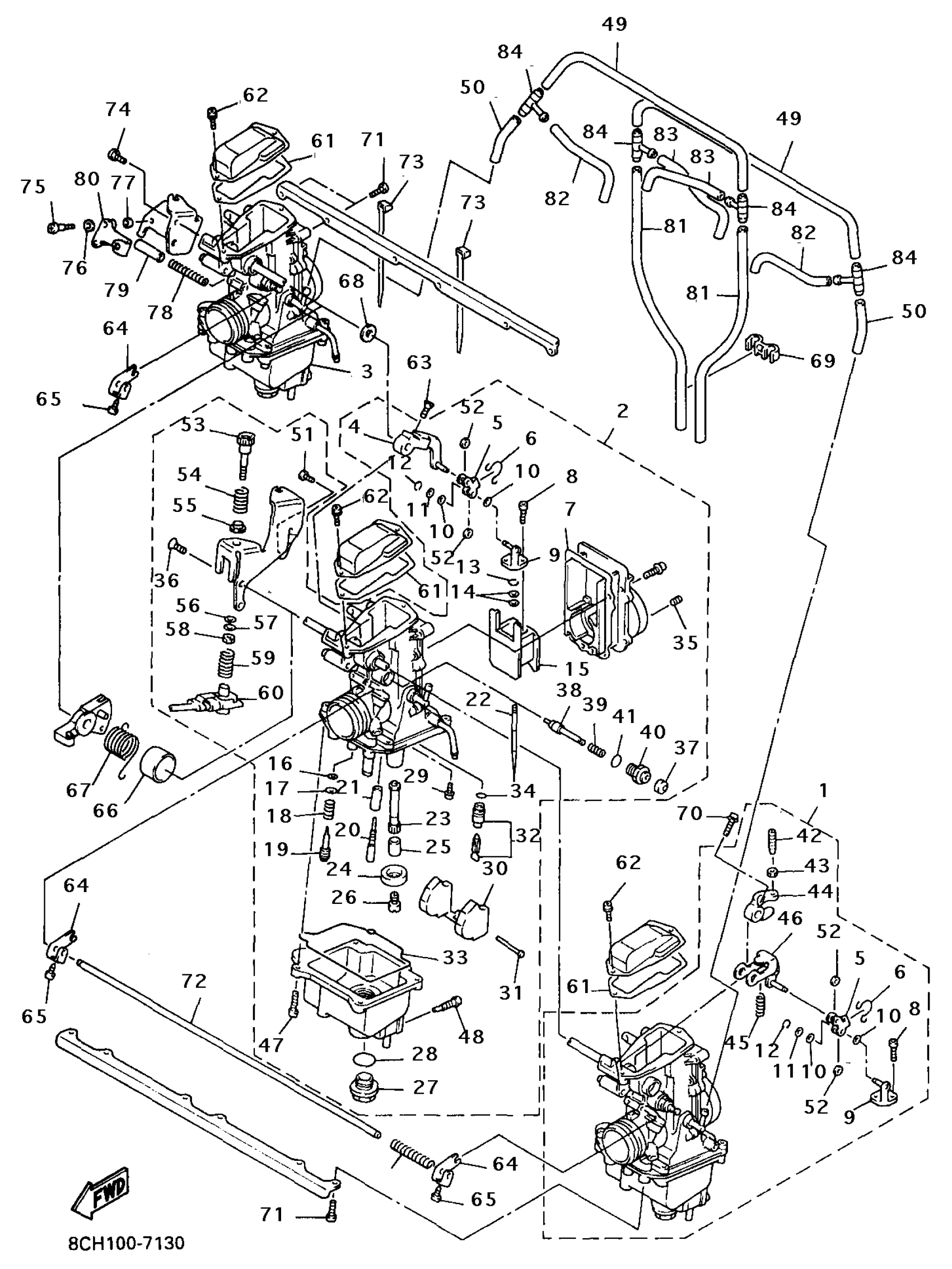

Yamaha VX700SXA (VMAX 700 SX) 8CH1 1997 CARBURETOR FOR VX700 Diagram
#
1
CARBURETOR ASSEMBLY 1
8CH-14101-00-00
Unavailable
2
CARBURETOR ASSEMBLY 2
8CH-14102-00-00
Unavailable
3
CARBURETOR ASSEMBLY 3
8CH-14103-00-00
Unavailable
4
BRACKET 2
89A-14292-00-00
Unavailable
5
PLATE
89A-14243-00-00
Unavailable
6
CLIP
89A-14137-00-00
$3.33
7
GASKET
89A-14199-00-00
$31.99
8
BOLT,SOCKET
91317-03012-00
$0.90
9
CONNECTOR
89A-14188-00-00
$34.99
10
GASKET
3GF-14126-00-00
$0.47
11
GASKET
620-14198-00-00
$2.65
12
CLIP
3MA-14937-00-00
Unavailable
13
CLIP
3FA-14137-00-00
$7.99
14
. WASHER (T=04MM)
8AB-14227-0D-00
Unavailable
15
. VALVE, THROTTLE 1
89A-14112-35-00
Unavailable
16
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
17
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
18
SPRING
5K7-14134-00-00
Unavailable
19
SCREW, ADJ.
89A-14565-00-00
Unavailable
20
JET, PILOT (# 45)
3H1-14142-45-00
Unavailable
20
JET, PILOT (# 50)
3H1-14142-50-00
Unavailable
20
JET, PILOT (# 52.5)
3H1-14142-52-00
Unavailable
20
JET, PILOT (# 55)
3H1-14142-55-00
Unavailable
20
. JET, PILOT (# 575)
3H1-14142-57-00
Unavailable
20
. JET, PILOT (# 60)
3H1-14142-60-00
Unavailable
21
PIPE
89A-14996-00-00
Unavailable
22
. NEEDLE
275-14116-F1-00
Unavailable
23
NOZZLE, MAIN
8CH-14141-54-00
Unavailable
23
. NOZZLE, MAIN
8CH-14141-58-00
Unavailable
24
WASHER, MAIN JET
1LX-14153-00-00
Unavailable
25
RING
89A-14194-00-00
Unavailable
26
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
26
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
26
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
26
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
26
JET,MAIN #132.5
3G2-1423A-77-00
Unavailable
26
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
26
JET,MAIN #142.5
3G2-1423A-79-00
Unavailable
26
JET,MAIN #147.5
3G2-1423A-80-A0
Unavailable
26
JET, MAIN (#128.8)
3G2-1423E-51-00
Unavailable
26
JET, MAIN (#131.3)
3G2-1423E-52-00
Unavailable
26
JET, MAIN(#133.8)
3G2-1423E-53-00
Unavailable
26
JET, MAIN (#136.3)
3G2-1423E-54-00
Unavailable
26
JET, MAIN (#138.8)
3G2-1423E-55-00
Unavailable
26
JET, MAIN (#141.3)
3G2-1423E-56-00
Unavailable
26
JET MAIN (#143.8)
3G2-1423E-57-00
Unavailable
26
JET, MAIN (#146.3)
3G2-1423E-58-00
Unavailable
26
JET, MAIN #148.8
3G2-1423E-59-00
Unavailable
27
PLUG, SCREW
500-14115-00-00
Unavailable
28
O-RING (541)
558-14147-00-00
Unavailable
29
SCREW
2LN-14565-00-00
Unavailable
30
FLOAT
1UY-14185-00-00
Unavailable
31
PIN, FLOAT
537-14186-00-00
Unavailable
32
NEEDLE VALVE ASSY
1AE-14190-12-00
Unavailable
33
O-RING
89A-14147-00-00
Unavailable
34
O-RING
8F2-14147-00-00
Unavailable
35
JET, AIR (#1.0)
239-14172-10-00
Unavailable
35
PILOT JET, AIR (#1.20)
239-14172-12-00
Unavailable
36
SCREW,FLAT
98707-05008-00
Unavailable
37
. COVER, PLUNGER CAP
302-14173-00-00
Unavailable
38
. PLUNGER, STARTER
4G0-14171-00-00
Unavailable
39
SPRING, PLUNGER
2N3-14135-00-00
Unavailable
40
. CAP, PLUNGER
1FN-14174-00-00
Unavailable
41
O-RING
1AE-14147-00-00
Unavailable
42
SCREW
89A-14216-00-00
Unavailable
43
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
44
. LEVER
89A-14276-00-00
Unavailable
45
SPRING
89A-14286-00-00
Unavailable
46
. LEVER, STARTER
89A-14905-00-00
Unavailable
47
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
48
PLUG, DRAIN
12R-14191-00-00
Unavailable
49
. PIPE
84M-14197-00-00
Unavailable
50
. PIPE 1
8CH-14348-00-00
Unavailable
51
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
52
RING
3MA-14918-00-00
Unavailable
53
SCREW, THROTTLE
8CC-14122-00-00
Unavailable
54
SPRING
8X0-14500-00-00
Unavailable
55
RING
8X0-14184-00-00
Unavailable
56
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
57
. WASHER
1UF-14952-00-00
Unavailable
58
NUT
89A-14594-00-00
Unavailable
59
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
60
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
61
GASKET
89A-14198-00-00
Unavailable
62
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
63
SCREW,FLAT
98707-04014-00
Unavailable
64
. LEVER COMP. 1
89A-14208-00-00
Unavailable
65
SCREW
11H-14991-09-00
Unavailable
66
. COLLAR
89A-14264-00-00
Unavailable
67
. SPRING
8CH-14589-00-00
Unavailable
68
. WASHER
3H1-14227-00-00
Unavailable
69
CLIP
87M-14137-00-00
Unavailable
70
SCREW, PAN HEAD
98517-04016-00
Unavailable
71
SCREW, PAN
98517-05012-00
Unavailable
72
. SHAFT, STARTER LEVER
8CH-14978-00-00
Unavailable
73
CLIP, PIPE
35H-14139-00-00
Unavailable
74
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
75
. PLUG, SCREW
22F-14115-00-00
Unavailable
76
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
77
. WASHER
3FV-14962-00-00
Unavailable
78
. SPRING, PLUNGER
1AE-14135-00-00
Unavailable
79
. CAP
89A-14118-00-00
Unavailable
80
. LEVER
89A-14588-00-00
Unavailable
81
. PIPE
8A7-14197-00-00
Unavailable
82
HOSE
89A-14987-00-00
Unavailable
83
. PIPE
8F2-14197-00-00
Unavailable
84
NIPPLE
4N0-14251-00-00
Unavailable
