2001 Yamaha VX700F 8DS4 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

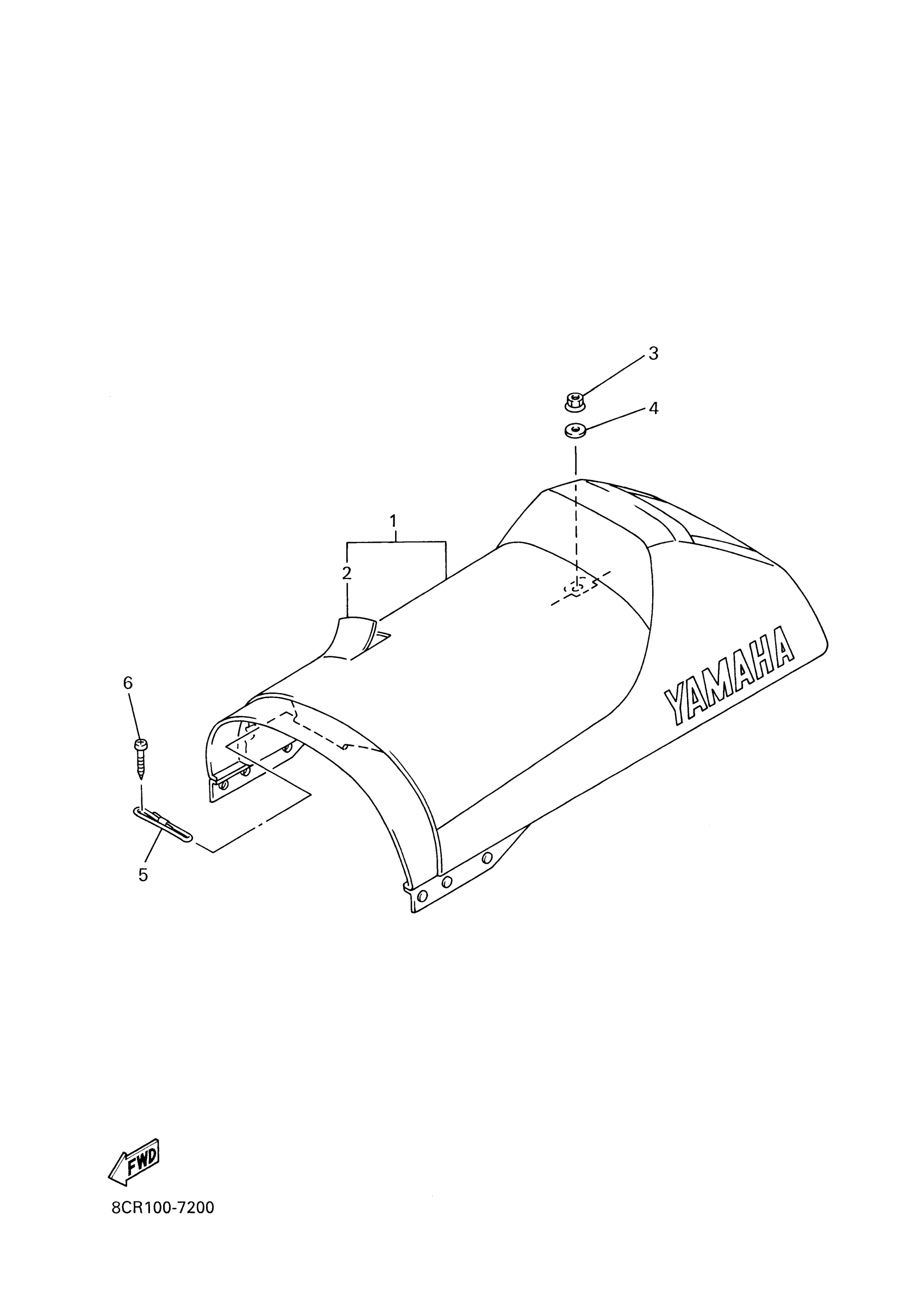

2001 Yamaha VX700F 8DS4 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSY

8CR-24710-80-00

1
Out of stock

2

COVER, SEAT

8CR-2470F-70-00

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

5

BAND, SEAT

8CR-24734-00-00

1
Out of stock

6

SCREW, BINDING

90154-06040-00

1
Out of stock
