2001 Yamaha VX700F 8DS4 Guard Luggage BOX Diagram

← All diagrams

Find the part on the Guard Luggage BOX diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

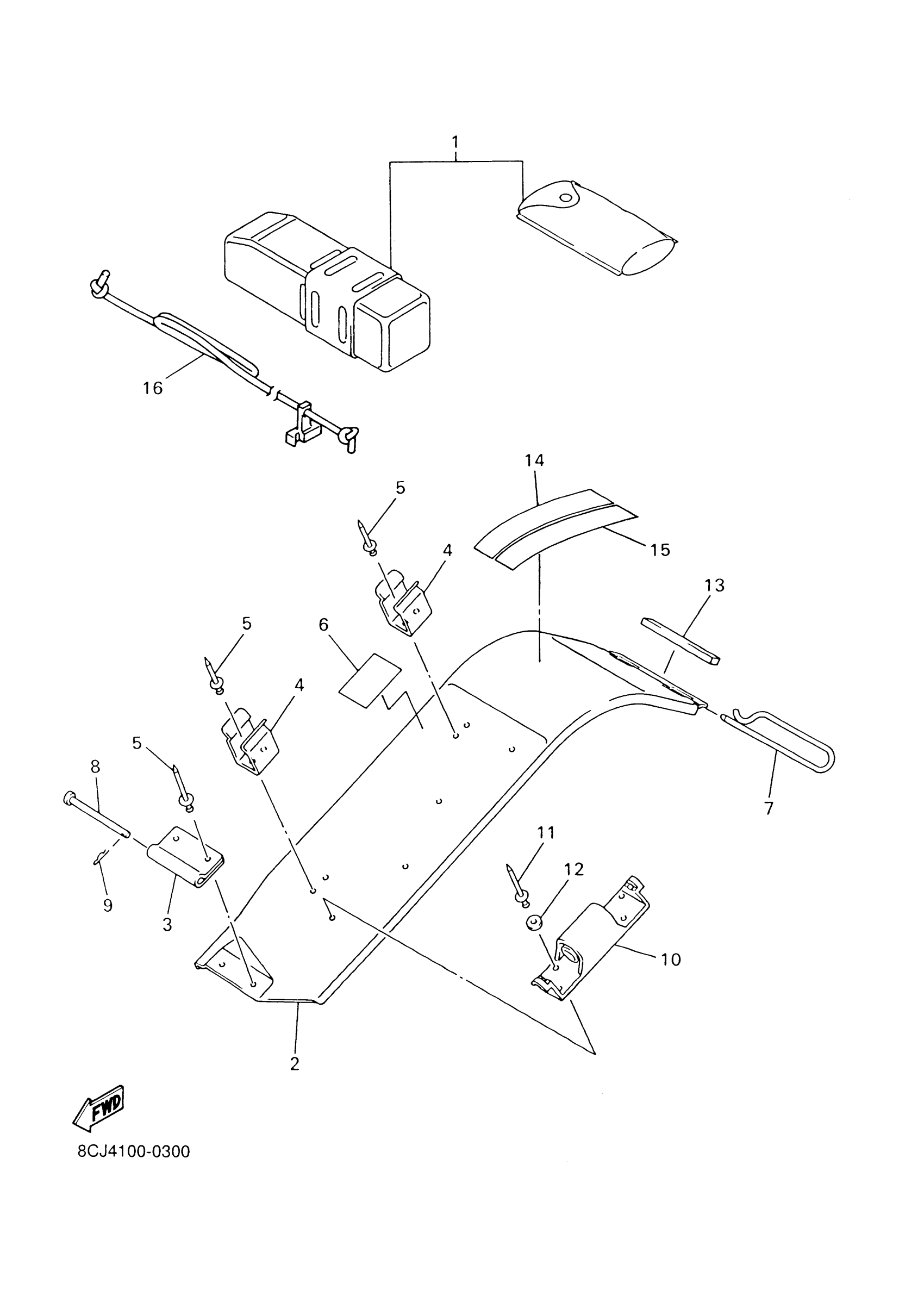

2001 Yamaha VX700F 8DS4 Guard Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TOOL KIT

8DF-28100-00-00

1
Out of stock

2

GUARD, DRIVE

8CR-77311-10-00

1
Out of stock

3

BRACKET 1

8CR-77315-00-00

1
Out of stock

4

STAY, BELT

8CR-77338-00-00

1

$5.14

In stock

5

RIVET, BLIND

90267-48177-00

1

$1.71

In stock

6

LABEL, WARNING 2

8BD-77762-00-00

1

$3.95

In stock

7

PIN

8CR-77384-01-00

1

$12.18

In stock

8

PIN(8E7)

91701-06082-00

1

$4.60

In stock

9

CLIP (7U6)

90468-18121-00

1

$1.18

In stock

10

PLUG HOLDER ASSY

8CR-77378-00-00

1

$35.95

In stock

11

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

12

WASHER, PLATE(39X)

90201-057H5-00

1

$3.00

In stock

13

DAMPER 1

8CR-77319-00-00

1

$0.58

In stock

14

LABEL, CAUTION

8CH-1417E-00-00

1
Out of stock

15

LABEL 1

8CR-47578-00-00

1
Out of stock

16

—

$8.22

In stock
