Description

Price

1

TANK, OIL

8CR-21751-10-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

CAP

89A-21815-00-00

$24.99

5

HOSE (L70)

90445-112E0-00

$8.49

6

GROMMET 839774310000

90480-14023-00

$7.49

7

COLLAR(52E)

90387-063G3-00

$8.49

8

CLAMP

90462-08244-00

Unavailable

9

BOLT, FLANGE

95817-06025-00

Unavailable

10

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

11

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

12

SPRING, COMPRESSION(3JK)

90501-101J5-00

$19.99

13

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

14

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

15

HOSE (L600)

90445-083J5-00

$10.49

16

CLAMP(4FM)

90464-15195-00

Unavailable

17

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

18

CLAMP

90464-26245-00

Unavailable

19

CLIP (8A1)

90467-09026-00

Unavailable

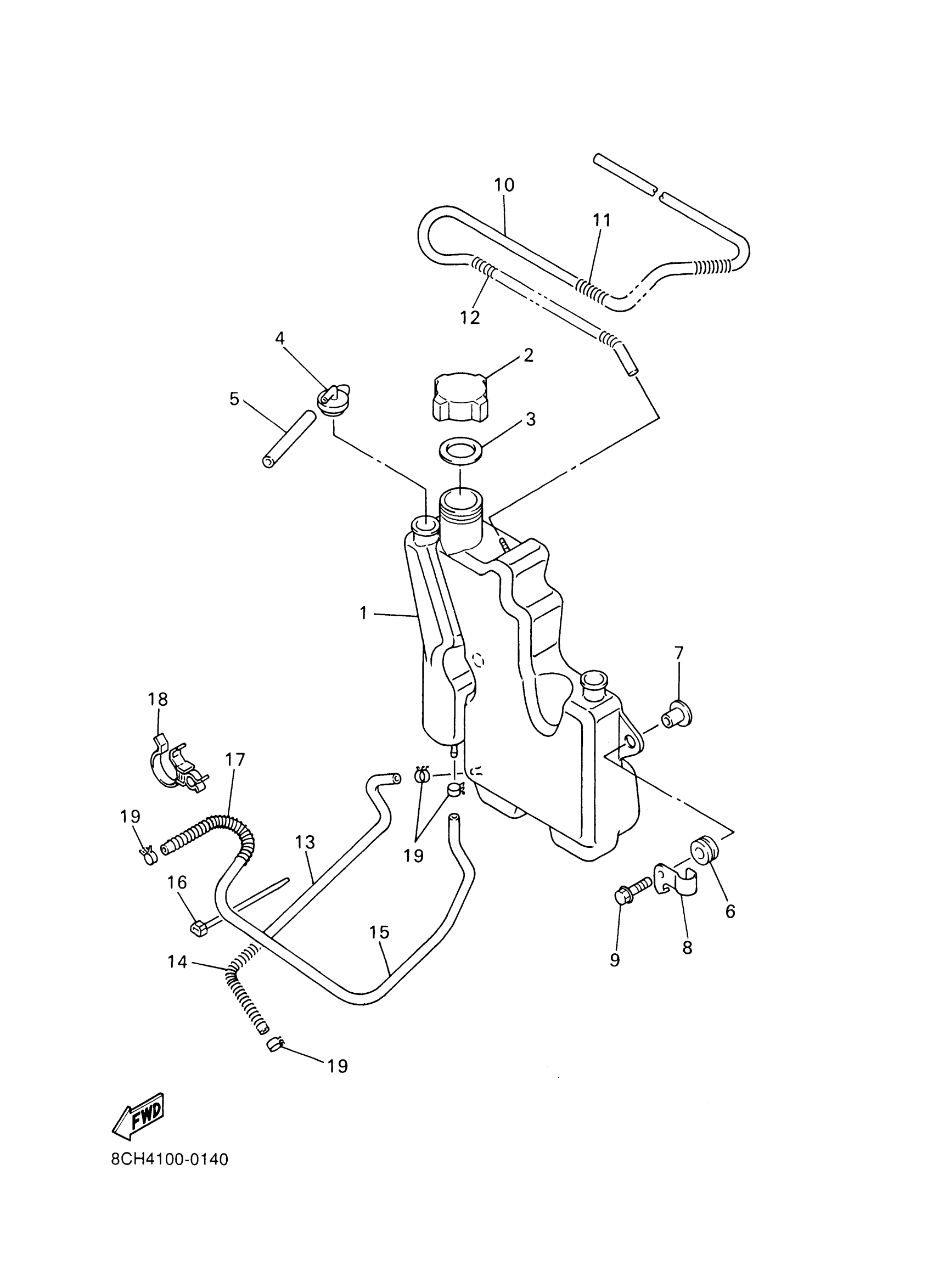

Yamaha VX700F 8DS4 2001 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

CAP

HOSE (L70)

GROMMET 839774310000

COLLAR(52E)

CLAMP

BOLT, FLANGE

TUBE, FLEXIBLE VINYL(8AT)

SPRING, COMPRESSION (10L)

SPRING, COMPRESSION(3JK)

TUBE, FLEXIBLE VINYL(8AK)

SPRING, COMPRESSION (10L)

HOSE (L600)

CLAMP(4FM)

SPRING, COMPRESSION(8AF)

CLAMP

CLIP (8A1)
