- VX700ERG (VMAX 700ER) 8DY4 2002
TRACK SUSPENSION 1

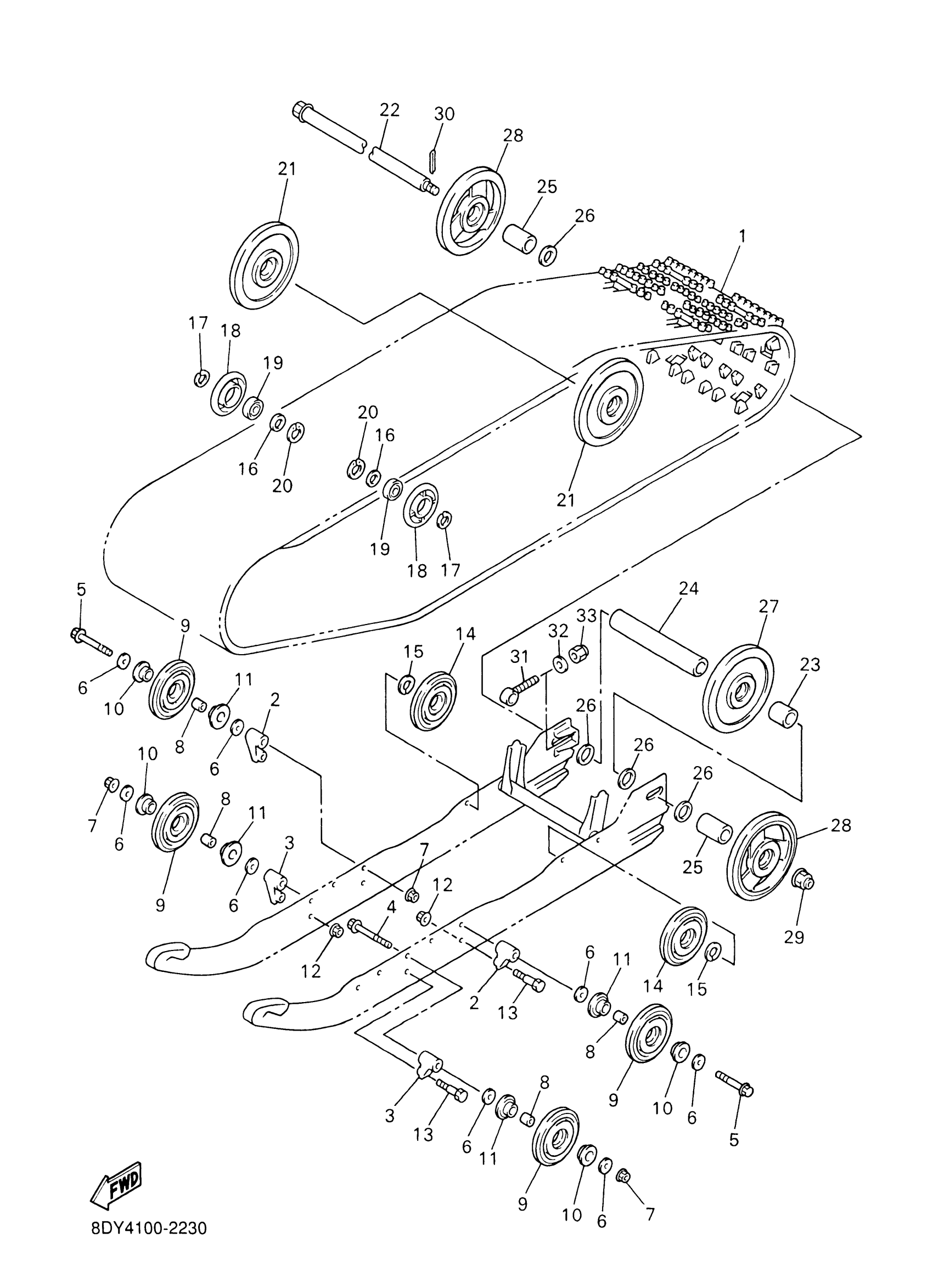

Yamaha VX700ERG (VMAX 700ER) 8DY4 2002 TRACK SUSPENSION 1 Diagram
#
1
1'' HACKSAW TRACK
SMA-TRACK-90-09
Unavailable
2
BRACKET 7
8DF-47419-00-00
$29.99
3
BRACKET 7
8DF-47419-10-00
Unavailable
4
BOLT, WASHER BASED(59V)
90105-10392-00
$11.49
5
BOLT, FLANGE
95817-10085-00
Unavailable
6
WASHER, PLATE(8CM)
90201-100S0-00
$5.60
7
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
8
COLLAR
90387-10079-00
Unavailable
9
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
10
SPACER
8CR-47341-01-00
Unavailable
11
SPACER
8CR-47341-11-00
$10.99
12
NUT, SELF-LOCKING
90185-08169-00
$8.49
13
BOLT(8CM)
90101-08774-00
$7.49
14
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
15
CIRCLIP(JF7)
99009-25400-00
$8.49
16
COLLAR(8AB)
90387-2004V-00
Unavailable
17
CIRCLIP(1AR)
99009-20400-00
Unavailable
18
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
19
BEARING(8AB)
93306-00444-00
Unavailable
20
CIRCLIP(5U8)
99009-42500-00
Unavailable
21
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
22
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
23
COLLAR
90387-2012E-00
Unavailable
24
COLLAR
90387-2012C-00
Unavailable
25
COLLAR
90387-2012D-00
Unavailable
26
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
27
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
28
WHEEL SILVER PLASTIC ASSY
8DF-47550-01-SL
Unavailable
29
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
30
PIN, COTTER
91401-30025-00
Unavailable
31
COLLAR 3
8DM-47479-00-00
Unavailable
32
WASHER(6TA)
92907-10600-00
Unavailable
33
NUT, NYLON
95707-10300-00
Unavailable
