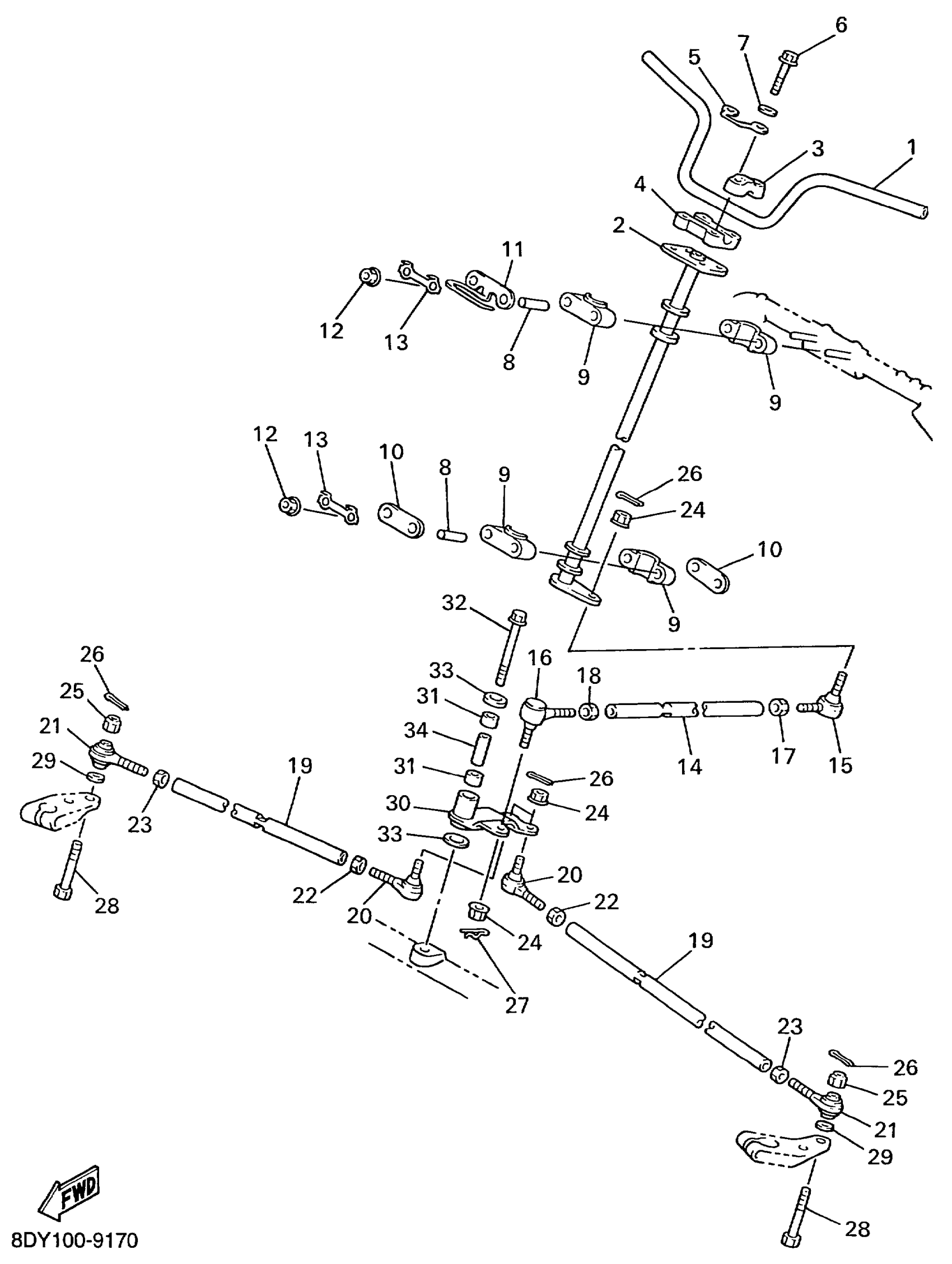

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

8CR-23811-00-00

$45.75

2

COLUMN, STEERING 2

8CR-23813-00-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

HANDLE, HOLDER

164-23441-01-98

$25.75

5

HOLDER

8DF-23857-00-00

$55.91

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

WASHER(6TA)

92907-08600-00

$2.52

8

COLLAR(85G)

90387-106T4-00

$11.29

9

PLANE BEARING, STEERING

8DF-23812-00-00

$6.91

10

HOLDER, BEARING

8CR-23872-00-00

$2.57

11

HOLDER, BEARING

8CH-23872-00-00

Unavailable

12

NUT, NYLON

95717-08300-00

$2.57

13

WASHER, LOCK 1

1UY-23894-01-00

$6.86

14

ROD, STEERING RELAY

8CR-23821-00-00

$21.34

15

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

16

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

17

NUT (3WP1)

95317-10700-00

$6.17

18

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

19

ROD, TIE

8CR-23831-00-00

Unavailable

20

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

21

JOINT, UNIVERSAL 3

87S-23847-01-00

$44.71

22

NUT (3WP1)

95317-10700-00

$6.17

23

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

24

NUT, FLANGE(8AB)

95707-10500-00

$1.66

25

NUT, NYLON

95707-10300-00

$6.68

26

PIN, COTTER

91490-25020-00

$2.94

27

CLIP 136253750000

90468-12006-00

$5.10

28

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

29

WASHER PLATE (3L6)

90201-08759-00

$2.52

30

ARM, IDLER

8DF-23826-10-00

$83.22

31

BEARING, CYLINDRICAL(3VR)

93317-41767-00

$38.78

32

BOLT, WASHER BASED (26H)

90105-12252-00

$9.77

33

WASHER, PLATE

90201-121U3-00

$5.45

34

COLLAR

8DF-2412G-00-00

$8.97
