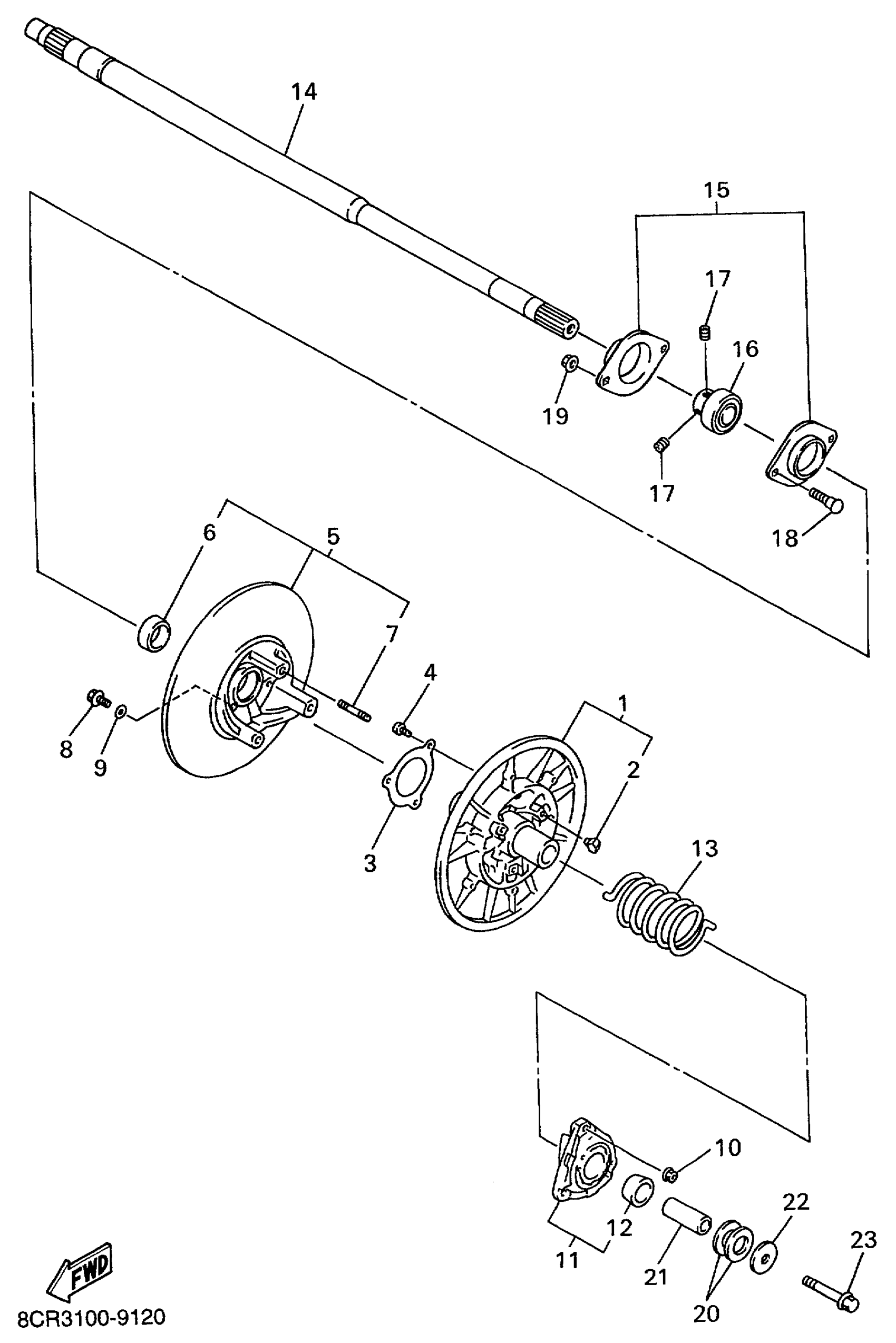

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8CR-17660-20-00

Unavailable

2

SHOE, RAMP

8AV-17688-10-00

$27.33

3

STOPPER, HOLDER

8BV-17656-00-00

$20.20

4

SCREW, BINDING

98907-06016-00

$7.14

5

SECONDARY SLIDING SHEAVE

8BU-17670-20-00

$218.32

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

7

BOLT, STUD 3

95617-08630-00

$3.69

8

BOLT, WASHER BASED(8BN)

90105-06734-00

$2.82

9

WASHER, PLATE (371)

90201-06431-00

$4.48

9

WASHER, PLATE (22K)

90201-061H1-00

$3.74

10

NUT(8BN)

90179-08655-00

$7.46

11

SEAT SPRING SET

8BV-17604-50-00

$174.71

11

SEAT SPRING SET

8BV-17604-71-00

$228.66

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

13

SPRING, TORSION(8AB)

90508-536A9-00

$33.48

13

SPRING, TORSION(8BN)

90508-556A2-00

$40.38

14

SHAFT, SECONDARY

8CR-17681-10-00

Unavailable

15

HOUSING, BEARING

8CR-47631-01-00

$19.00

16

BEARING(8CJ)

93399-99943-00

$46.72

17

BOLT, SET

90113-06006-00

$3.60

18

BOLT(8CJ)

90109-083G2-00

$6.88

19

NUT, FLANGE(JN5)

95707-08500-00

$1.49

20

WASHER, PLATE (T=0.5)

90201-222F0-00

$5.89

20

WASHER, PLATE (8L8)

90201-225A4-00

$7.85

21

COLLAR

90387-14019-00

$24.45

22

WASHER, PLATE

90201-14022-00

$4.86

23

BOLT, WASHER BASED(8CJ)

90105-14766-00

$23.89
