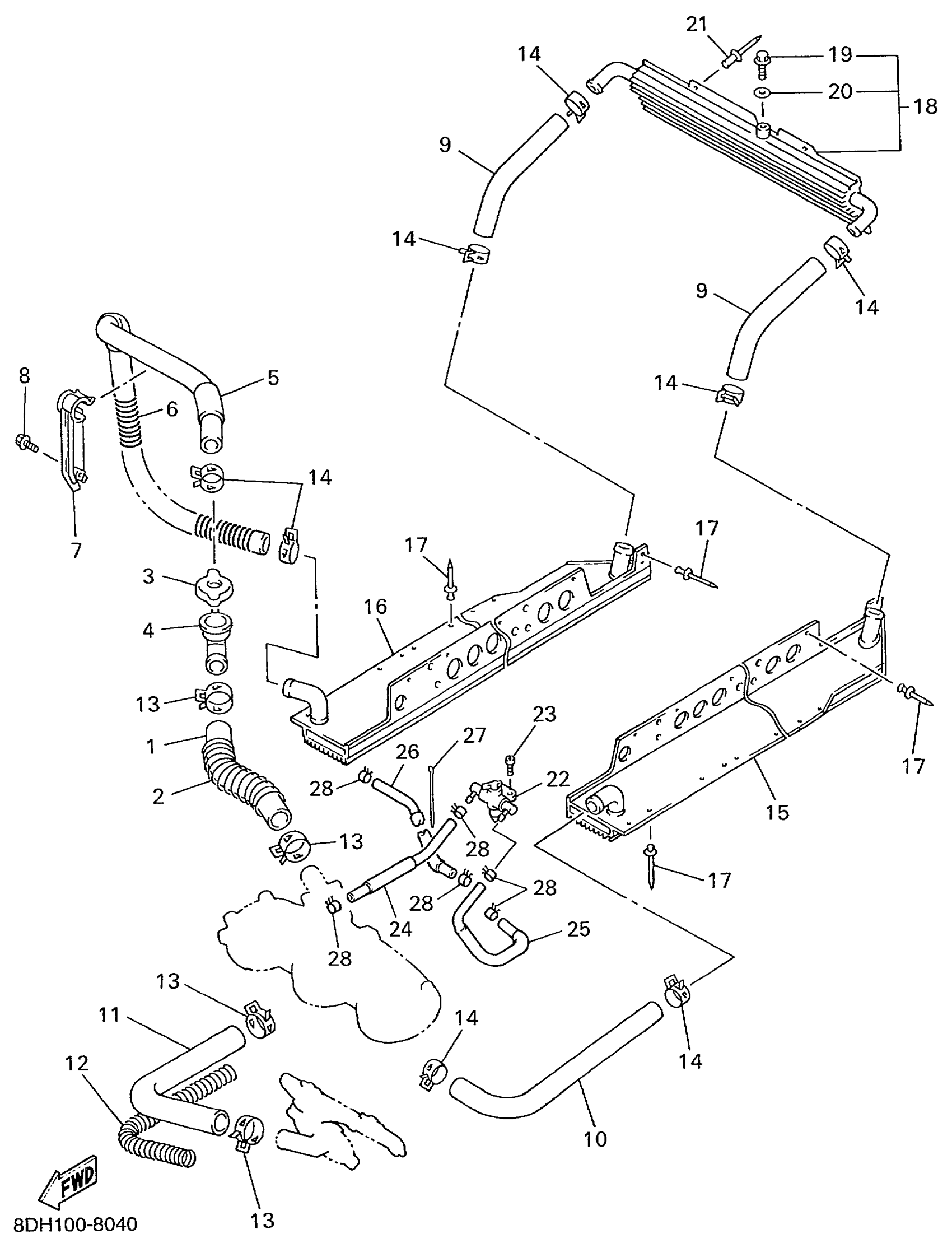

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 RADIATOR HOSE Diagram

#

Description

Price

1

PIPE 2

8CH-12482-00-00

Unavailable

2

SPRING, COMPRESSION

90501-100K8-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$62.99

4

SUPT, FILLER NECK

8CR-12591-00-00

Unavailable

5

PIPE 3

8CH-12483-10-00

Unavailable

6

SPRING, COMPRESSION

90501-143L9-00

Unavailable

7

CLAMP 1

8CR-12491-00-00

Unavailable

8

BOLT, FLANGE

95817-06014-00

Unavailable

9

PIPE 4

8CR-12484-00-00

Unavailable

10

PIPE 5

8CR-12485-00-00

Unavailable

11

PIPE 6

99999-03253-00

Unavailable

12

SPRING, COMPRESSION

90501-120K7-00

Unavailable

13

CLIP (8M6)

90467-28046-00

$16.99

14

CLIP (10V)

90467-23067-00

$7.49

15

HEAT EXCHANGER

8CH-1240E-02-00

Unavailable

16

HEAT EXCHANGER

8CH-1240F-03-00

Unavailable

17

RIVET, BLIND(8CR)

90267-47186-00

Unavailable

18

HEAT EXCHANGER ASSEMBLY 4

8CH-1241A-00-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

GASKET (4V2)

90430-06166-00

Unavailable

21

RIVET, BLIND(8CR)

90267-47186-00

Unavailable

22

COCK ASSY

8CH-1249A-03-00

Unavailable

23

SCREW, BINDING

98907-06020-00

Unavailable

24

HOSE 1

8CH-1243A-01-00

Unavailable

25

HOSE 2

8CH-1243E-10-00

Unavailable

26

HOSE,3

8EX-1243F-00-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

Unavailable

28

CLIP

90467-11028-00

Unavailable
