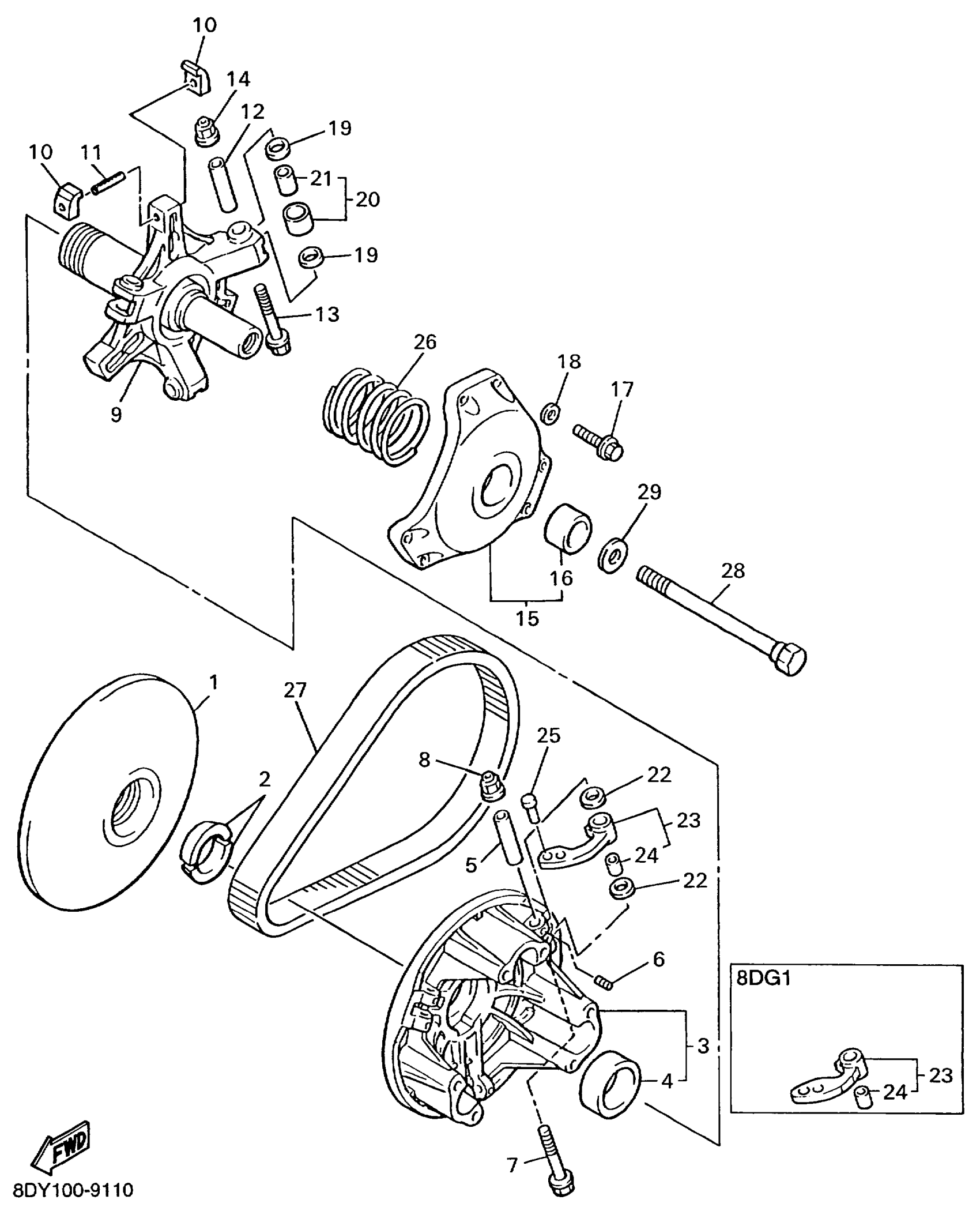

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

$210.78

2

STOPPER

8V0-17639-00-00

$10.52

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

$430.68

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$50.08

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, SET

90113-05041-00

$6.68

7

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

8

NUT, S/L FLANGE

95607-05200-00

$6.86

9

SPIDER COMP.

8CA-17640-12-00

Unavailable

10

SLIDER

8BW-17653-00-00

$13.86

11

PIN, SPRING (7F7)

91609-50032-00

$3.66

12

COLLAR

90387-0514U-00

$15.86

13

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

14

NUT, S/L FLANGE

95607-05200-00

$6.86

15

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

$90.97

15

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$176.14

16

BUSH, SOLID(8CP)

90380-28237-00

$31.34

17

BOLT, HEXAGON

97017-06030-00

$3.00

18

WASHER(6TA)

92907-06600-00

$0.78

19

WASHER, PLATE(8BV)

90202-09227-00

$7.48

20

ROLLER, COMP

8CR-17624-00-00

$58.06

20

ROLLER, COMP

8CR-17624-10-00

$59.32

21

. BUSH, SOLID

90380-09245-00

$31.67

22

WASHER, PLATE(88R)

90202-08204-00

$5.72

23

WEIGHT COMP

8CH-17605-10-00

$75.52

23

WEIGHT COMP

8DG-17605-00-00

$92.82

24

. BUSH, SOLID

90380-08244-00

Unavailable

25

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

$7.55

25

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

$2.72

25

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

$5.62

26

SPRING, COMPRESSION(8AB)

90501-555J9-00

$51.03

26

SPRING, COMPRESSION

90501-582L7-00

$38.80

27

V-BELT

8DN-17641-01-00

$85.29

28

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

29

WASHER(JN5)

92907-16100-00

$12.08
