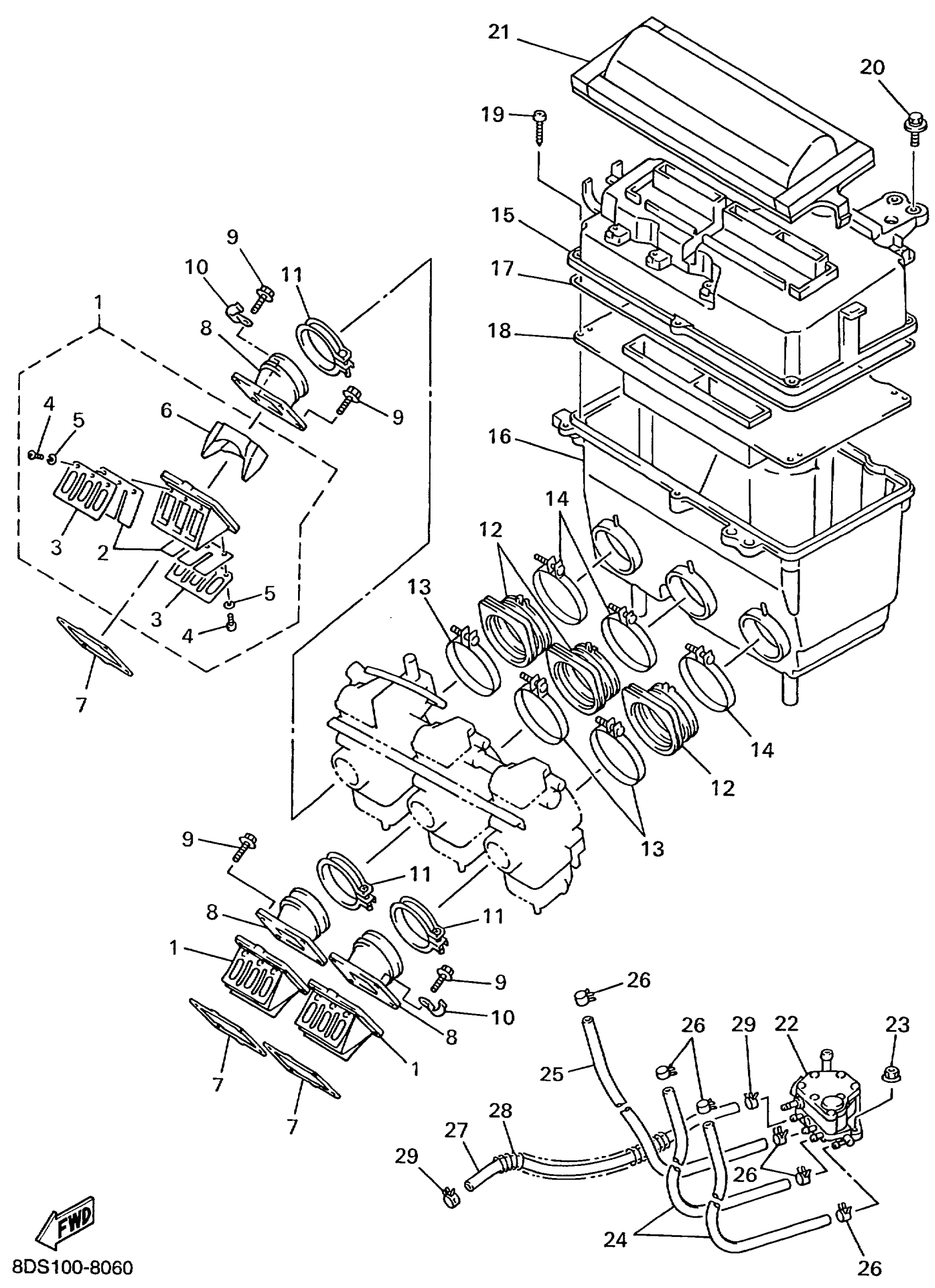

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

4DA-13610-01-00

Unavailable

2

REED, VALVE

3SP-13613-01-00

$26.43

3

STOPPER, REED VALVE

8DJ-13616-00-00

$15.54

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

5

WASHER, SPRING

92990-03100-00

$6.17

6

. SPACER, REED VALVE

4DA-13625-00-00

Unavailable

7

GASKET, VALVE SEAT

8CH-13621-01-00

$11.92

8

MANIFOLD, INTAKE

8CH-13555-00-00

Unavailable

9

BOLT, FLANGE

95817-06020-00

$2.69

10

CLAMP (4G0)

90462-08078-00

$5.17

11

BAND

86M-13575-00-00

$16.45

12

JOINT, AIR CLEANER 1

8CH-14453-00-00

$22.80

13

HOSE CLAMP ASSY

90450-53008-00

$7.97

14

CLAMP, HOSE (29L)

90460-68230-00

$12.54

15

SILENCER, INTAKE 1

8CH-14431-01-00

Unavailable

16

SILENCER, INTAKE 2

8CH-14441-01-00

Unavailable

17

SEAL

51Y-14462-00-00

$11.61

18

PLATE

8CH-14477-00-00

Unavailable

19

SCREW, TAPPING(82M)

90167-05043-00

$5.62

20

BOLT, WITH WASHER(3FC)

90119-06163-00

$7.80

21

ELEMENT ASSY, AIR CLEANER

8CH-14450-00-00

$58.11

22

FUEL PUMP ASSY

8CH-24410-00-00

$190.88

23

NUT, FLANGE(4MV)

95707-06500-00

$0.78

24

HOSE (L280)

90445-09004-00

$3.15

25

HOSE (L420)

90445-092K1-00

$10.63

26

CLIP (8A1)

90467-09026-00

$2.72

27

HOSE (L400)

90445-116K9-00

$19.08

28

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

29

CLIP (7K7)

90467-11044-00

$5.10
