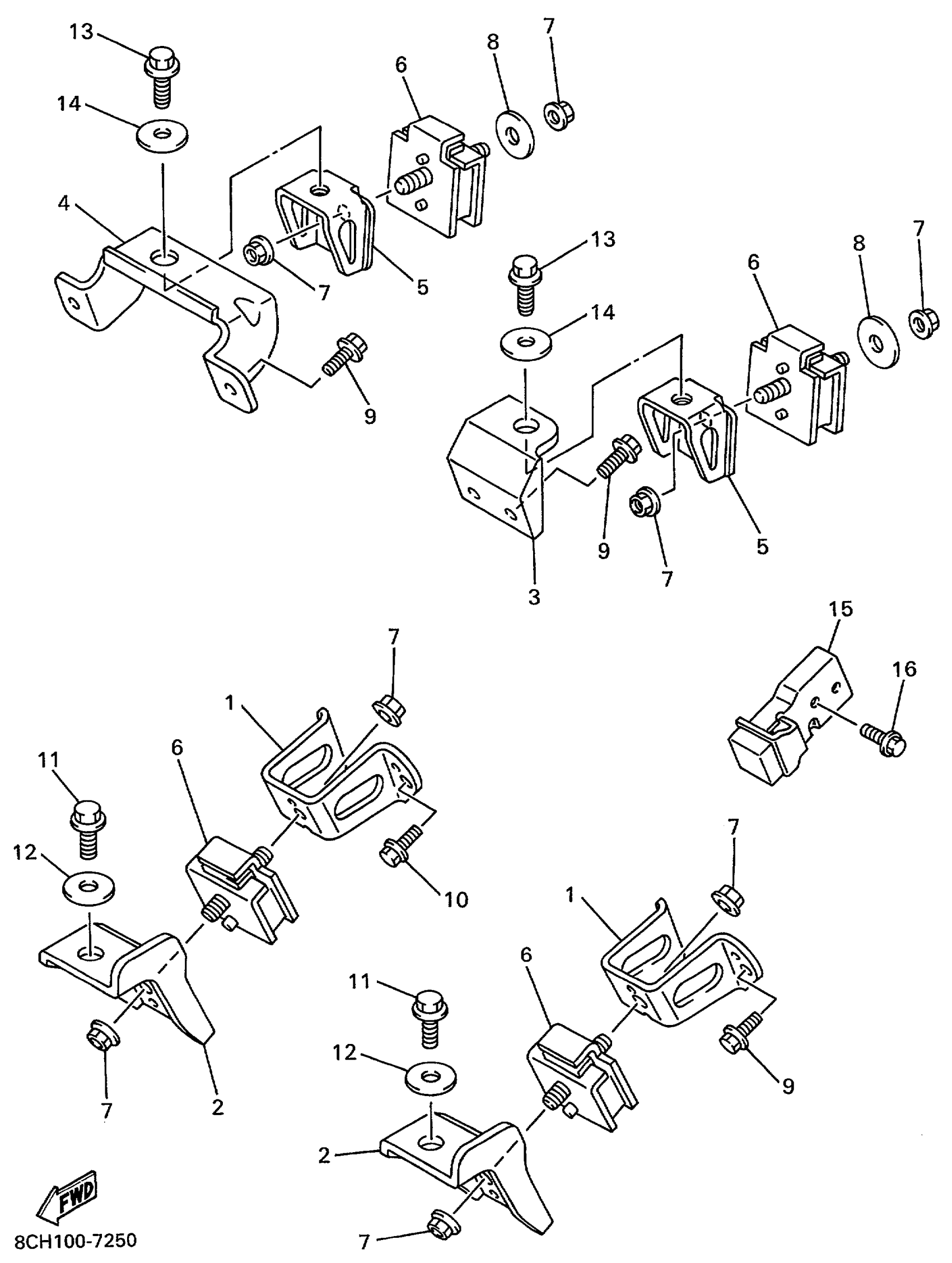

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 ENGINE BRACKET Diagram

BRACKET, FRONT UPPER 1

8CH-21415-00-00

Unavailable

BRACKET, FRONT LOWER 1

8CR-21417-00-00

Unavailable

BRACKET, REAR UPPER 1

8CR-21425-00-00

Unavailable

BRACKET, REAR UPPER 1

8CH-21425-00-00

Unavailable

BRACKET, REAR LOWER 1

8CR-21427-01-00

Unavailable

DAMPER 2

8CH-21486-10-00

Unavailable

NUT, FLANGE(8AB)

95707-10500-00

$3.18

WASHER, PLATE (856)

90201-10321-00

$8.49

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

BOLT, FLANGE

95817-08035-00

$9.49

BOLT, FLANGE(JN5)

95817-12030-00

$8.99

WASHER, PLATE

90201-120U9-00

Unavailable

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

WASHER, PLATE (856)

90201-10321-00

$8.49

DAMPER, RUBBER 1

8CH-21485-00-00

Unavailable

BOLT, FLANGE(8AB)

95817-08020-00

$9.49
