Description

Price

1

GEAR 1

8DM-1760A-18-00

Unavailable

2

SCREW, CROSSRECESSED ROUND

90150-08008-00

$4.82

3

NUT(6TA)

95317-06600-00

$3.55

4

BOLT, SMALL FLANGE

95027-08030-00

$3.76

5

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

6

. WIRE, MINUS LEAD

8DY-82116-00-00

Unavailable

7

. WIRE, LEAD

8DY-82117-00-00

Unavailable

8

CLAMP(4MX)

90465-06376-00

$9.49

9

. CLAMP

90465-10381-00

Unavailable

10

CLAMP(4FM)

90464-15195-00

$4.41

11

CLAMP(4FM)

90464-15195-00

$4.41

12

DAMPER

8CW-82176-00-00

Unavailable

13

PIPE (L320)

8CW-8235W-01-00

Unavailable

14

CLIP(41W)

90467-08092-00

$9.49

15

. BRACKET, BATTERY

8DM-2199G-00-00

Unavailable

16

BOLT, FLANGE

95817-06014-00

Unavailable

17

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

18

. SEAT, BATTERY

8DM-82122-00-00

Unavailable

19

BAND, BATTERY

8DM-82131-10-00

Unavailable

20

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

21

. WIRE, SUB LEAD

8DY-82509-00-00

Unavailable

22

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

24

COVER, BATTERY

8DM-82129-01-00

Unavailable

25

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

26

Y50N18LA YUASA BATTERY

Y50-N18LA-00-00

Unavailable

27

TRIPLE ELECTRIC START KIT

8DS-W8180-15-KT

Unavailable

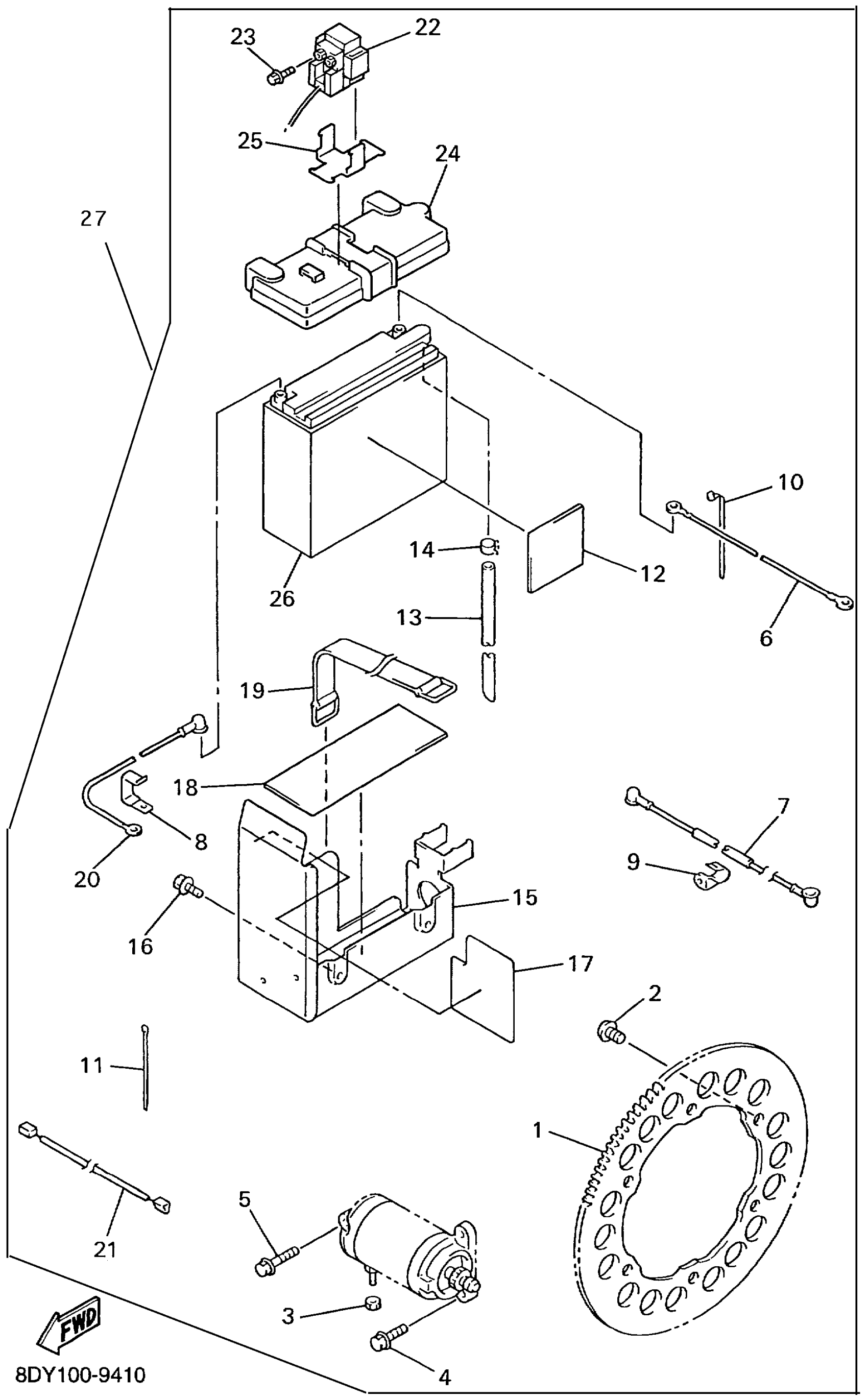

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 ELECTRICAL 2 Diagram

GEAR 1

SCREW, CROSSRECESSED ROUND

NUT(6TA)

BOLT, SMALL FLANGE

BOLT, FLANGE(4ES)

. WIRE, MINUS LEAD

. WIRE, LEAD

CLAMP(4MX)

. CLAMP

CLAMP(4FM)

CLAMP(4FM)

DAMPER

PIPE (L320)

CLIP(41W)

. BRACKET, BATTERY

BOLT, FLANGE

. SHIELD, HEAT

. SEAT, BATTERY

BAND, BATTERY

WIRE, PLUS LEAD

. WIRE, SUB LEAD

STARTER RELAY ASSY (RC19-016)

BOLT, SMALL FLANGE

COVER, BATTERY

. HOLDER, RELAY

Y50N18LA YUASA BATTERY

TRIPLE ELECTRIC START KIT
