- VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999
ELECTRICAL 1

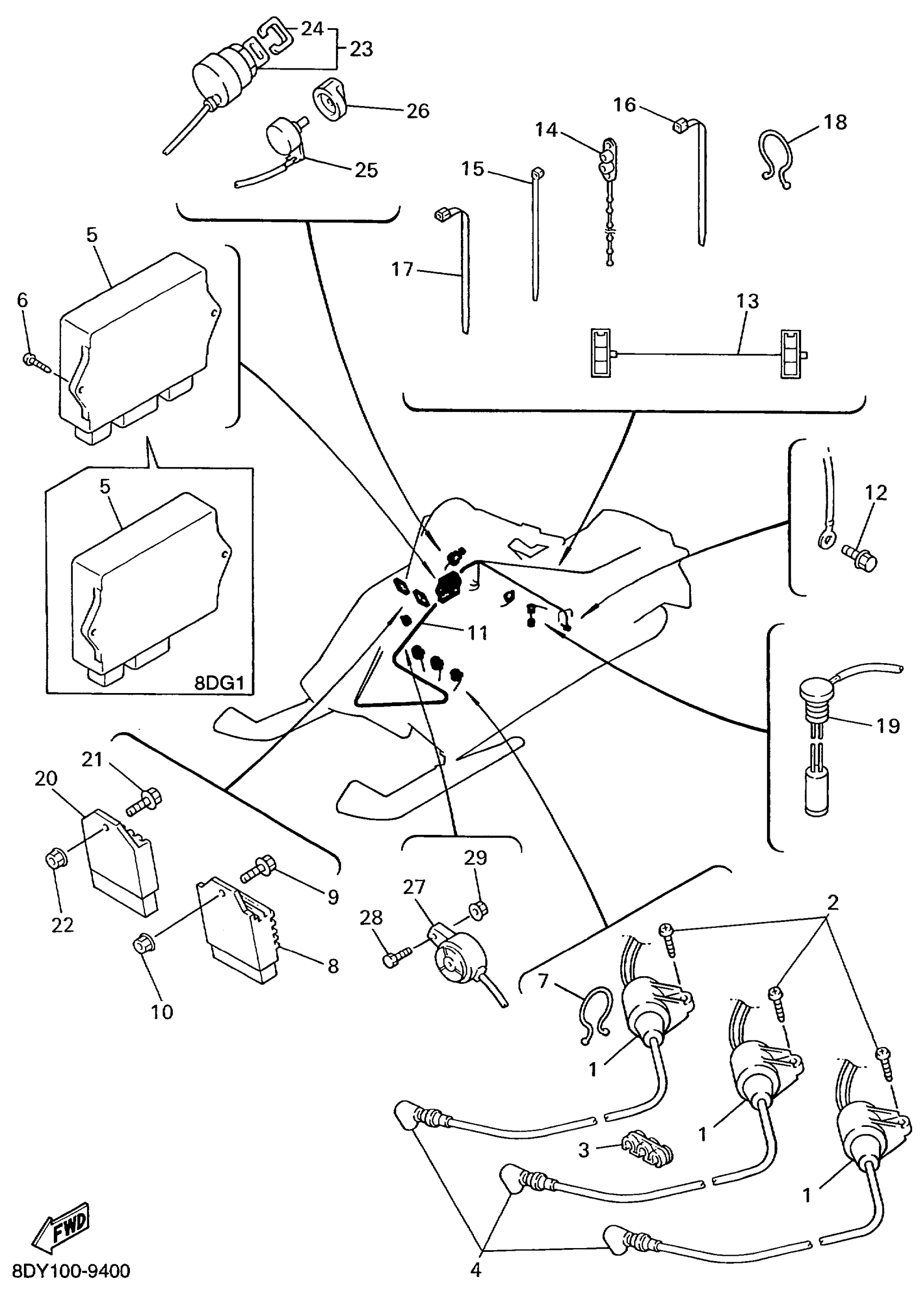

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8DG-82310-00-00
Unavailable
2
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
3
CLAMP
90464-06247-00
Unavailable
4
PLUG CAP ASSY
8DG-82370-00-00
$49.99
5
C.D.I. UNIT ASSEMBLY
8CH-85540-00-00
Unavailable
5
C.D.I. UNIT ASSY
8DG-85540-00-00
Unavailable
6
SCREW, TAPPING
97707-60525-00
$8.49
7
CLAMP (3Y2)
90464-16039-00
$9.49
8
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
9
BOLT, FLANGE
95817-06016-00
$2.75
10
NUT, FLANGE(4MV)
95707-06500-00
$1.23
11
WIRE HARNESS ASSY
8CH-82590-10-00
Unavailable
12
BOLT, FLANGE
95817-06016-00
$2.75
13
WIRE, LEAD
8CR-8471G-00-00
Unavailable
14
CLAMP
90464-20031-00
Unavailable
15
CLAMP(4FM)
90464-15195-00
Unavailable
16
CLAMP(4FM)
90464-15195-00
Unavailable
17
CLAMP
90464-13077-00
Unavailable
18
CLAMP
90464-25267-00
Unavailable
19
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
20
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
$2.75
22
NUT, FLANGE(4MV)
95707-06500-00
$1.23
23
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
24
CAP, KEY
526-82579-00-00
Unavailable
25
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
26
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
27
BUZZER
8CW-83383-00-00
Unavailable
28
BOLT(3JK)
97027-05020-00
Unavailable
29
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
