Description

Price

1

HEAD, CYLINDER 1

8CH-11111-10-00

$528.99

1

HEAD, CYLINDER 1

8DG-11111-00-00

Unavailable

2

EMBLEM

8CH-1111K-00-00

Unavailable

2

EMBLEM

8DG-1111K-00-00

Unavailable

3

JOINT 1

8CH-12469-00-00

Unavailable

4

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

5

GASKET, CYLINDER HEAD 1

8CH-11181-01-00

$75.99

5

GASKET, CYLINDER HEAD 1

8DG-11181-00-00

Unavailable

6

NUT(55X)

90179-08491-00

$8.49

7

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

8

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

9

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER(6TA)

92907-06600-00

$2.72

12

BOLT, FLANGE

95817-06012-00

$1.43

13

GASKET (4V2)

90430-06166-00

Unavailable

14

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

15

WASHER, PLATE

90201-12790-00

Unavailable

16

CYLINDER 1

8CH-11311-02-00

Unavailable

16

CYLINDER 1

8DG-11311-00-00

Unavailable

17

GASKET, CYLINDER

8CH-11351-00-00

Unavailable

18

BOLT, STUD (5X4)

90116-08392-00

Unavailable

19

BOLT STUD 363111790000

90116-08104-00

Unavailable

20

BOLT, STUD (8H8)

90116-08302-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

22

NUT(55X)

90179-08491-00

$8.49

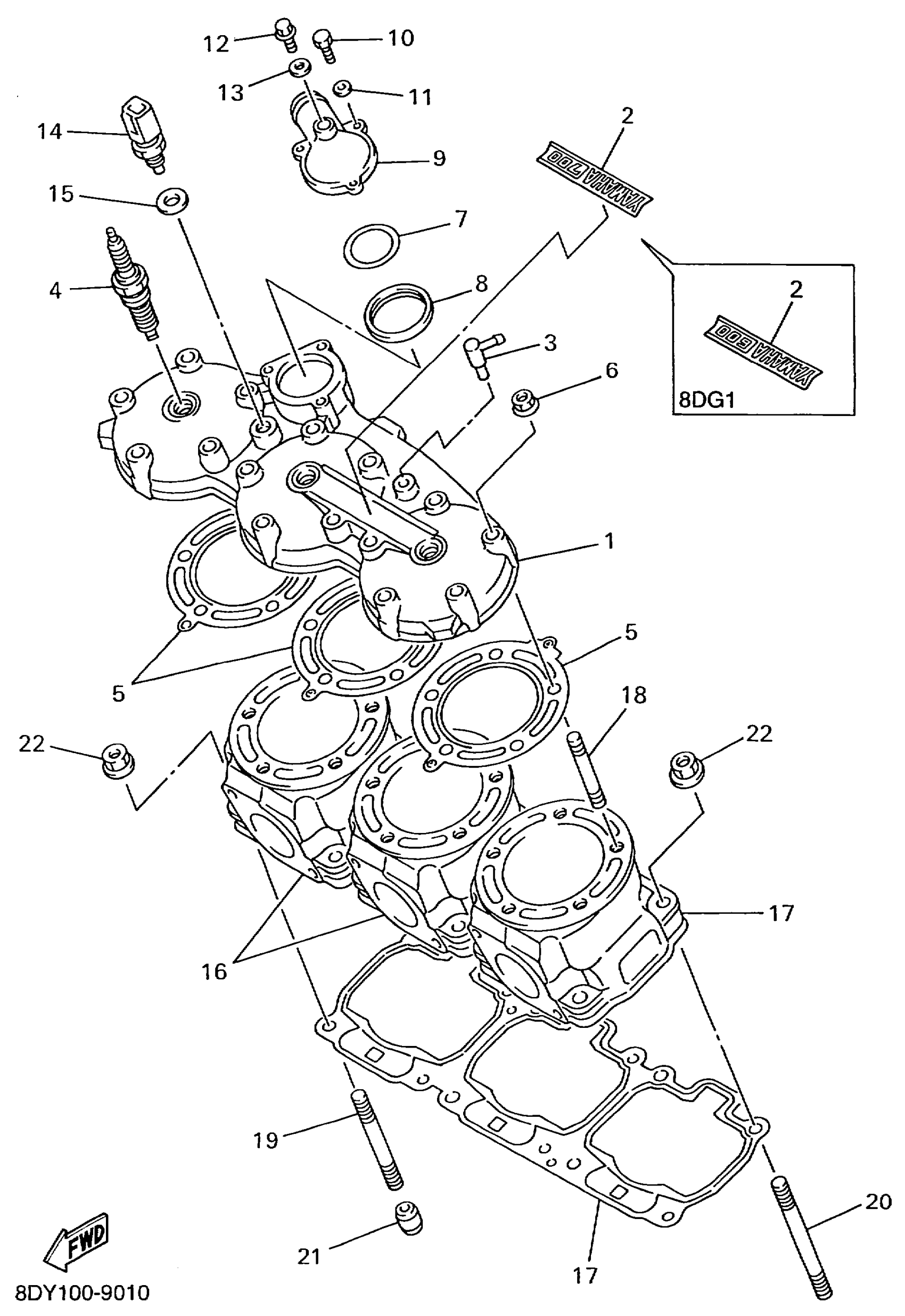

Yamaha VX700ERC (VMAX 700 DELUXE (ELEC START)) 8DY1 1999 CYLINDER HEAD Diagram

HEAD, CYLINDER 1

HEAD, CYLINDER 1

EMBLEM

EMBLEM

JOINT 1

BR9ES NGK SOLID TOP PLUG 4PK

GASKET, CYLINDER HEAD 1

GASKET, CYLINDER HEAD 1

NUT(55X)

WASHER, PLATE (8U9)

SEAL, THERMOSTAT

COVER, THERMOSTAT

BOLT, HEXAGON

WASHER(6TA)

BOLT, FLANGE

GASKET (4V2)

THERMOSENSOR ASSY

WASHER, PLATE

CYLINDER 1

CYLINDER 1

GASKET, CYLINDER

BOLT, STUD (5X4)

BOLT STUD 363111790000

BOLT, STUD (8H8)

PIN, DOWEL(3VD)

NUT(55X)
