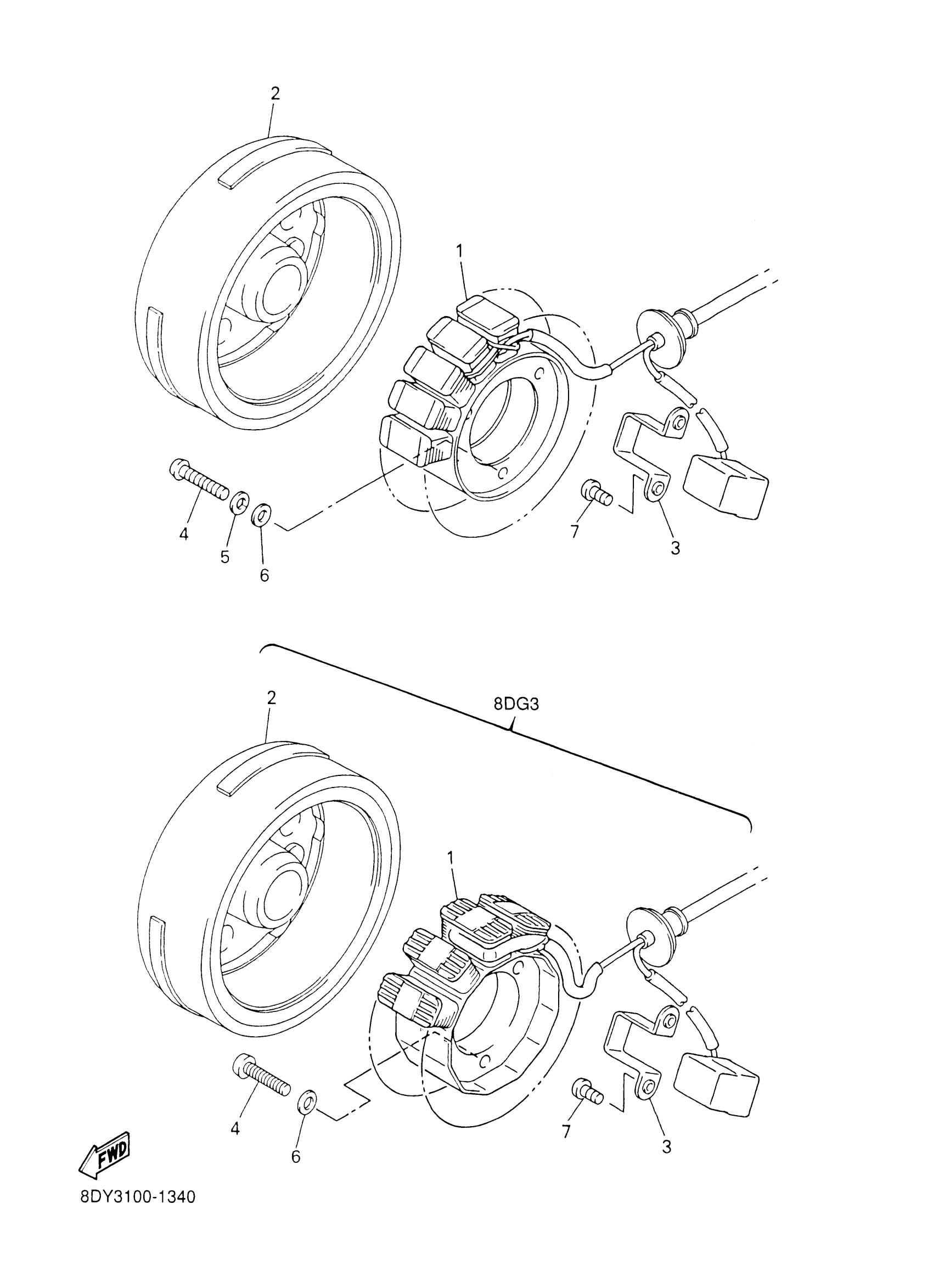

Yamaha VX700DXF (VMAX 700 DELUXE (ELEC START)) 8DY3 2001 GENERATOR Diagram

#

Description
Price

1

STATOR ASSY

8CH-85510-02-00

Unavailable

1

STATOR ASSY

8DM-81410-00-00

$310.21

2

ROTOR ASSY

8CH-85550-01-00

Unavailable

2

ROTOR ASSY

8DM-81450-00-00

Unavailable

3

CLAMP

90465-10385-00

Unavailable

4

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

4

SCREW, PAN

98517-06030-00

$2.96

5

WASHER, SPRING

92907-06100-00

$0.97

6

WASHER(6TA)

92907-06600-00

$0.73

7

SCREW, PAN HEAD

98507-05014-00

$5.76
