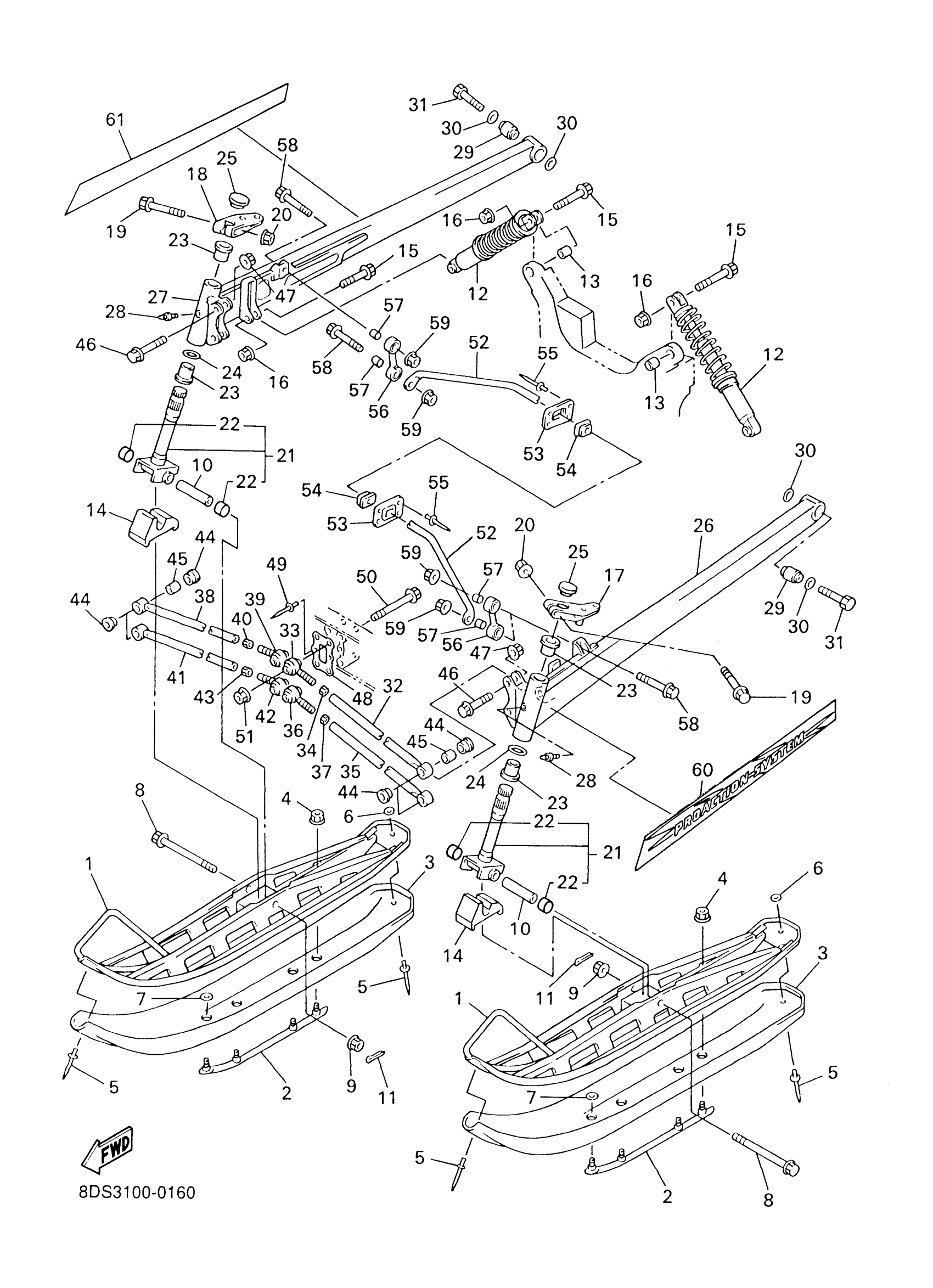

Yamaha VX700DXD (VMAX 700 DELUXE (ELEC START)) 8DY2 2000 SKI Diagram

#

Description
Price

1

SKI COMP. 1

8CV-23710-00-00

Unavailable

2

RUNNER 1

8CS-23731-00-00

Unavailable

3

RUNNER 2

8CV-23732-11-BK

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

RIVET, BLIND(8CP)

90267-48184-00

$5.60

6

WASHER, PLATE

90201-04027-00

$3.02

7

WASHER, PLATE

90201-08020-00

$7.49

8

BOLT, WASHER BASED(83M)

90105-10438-00

Unavailable

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

10

COLLAR

90387-1012H-00

$24.99

11

PIN, COTTER

91490-20025-00

$1.99

12

ABSORBER ASSEMBLY 1

8DY-2376A-00-00

Unavailable

13

BUSH

8CR-2376B-00-00

Unavailable

14

STOPPER 1

8CR-23743-00-00

Unavailable

15

BOLT, FLANGE

90105-10030-00

$8.49

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

17

ARM, OUTSIDE 1

8CR-23851-00-00

Unavailable

18

ARM, OUTSIDE 2

8CR-23852-00-00

Unavailable

19

BOLT, FLANGE(87Y)

95817-10055-00

Unavailable

20

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

21

COLUMN, SKI ASSY

8CR-23803-01-00

Unavailable

22

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

Unavailable

23

BUSH, SOLID

90381-25115-00

Unavailable

24

WASHER, PLATE (25G)

90201-301G3-00

Unavailable

25

CAP 1

8CR-23741-10-00

Unavailable

26

ARM, FRONT 1

8CR-2382E-30-00

Unavailable

27

ARM, FRONT 2

8CR-2382F-30-00

Unavailable

28

NIPPLE, GREASE

93700-06M03-00

Unavailable

29

DAMPER

8CR-2516A-00-00

Unavailable

30

WASHER, PLATE(8CJ)

90201-120T5-00

Unavailable

31

BOLT(8CJ)

90101-12046-00

Unavailable

32

ARM, CONTROL 1

8CR-2384E-30-00

Unavailable

33

JOINT 2

8DN-23823-00-00

Unavailable

34

NUT, HEXAGON

95337-12600-00

Unavailable

35

ARM, CONTROL 2

8CR-2384F-30-00

Unavailable

36

JOINT 3

8DN-23832-00-00

Unavailable

37

NUT

95314-14600-00

Unavailable

38

ARM, CONTROL 1

8CR-2384E-30-00

Unavailable

39

JOINT 2

8DN-23823-00-00

Unavailable

40

NUT, HEXAGON

95337-12600-00

Unavailable

41

ARM, CONTROL 2

8CR-2384F-30-00

Unavailable

42

JOINT 3

8DN-23832-00-00

Unavailable

43

NUT

95314-14600-00

Unavailable

44

BUSH, SOLID(8CJ)

90381-17110-00

Unavailable

45

COLLAR(8CJ)

90387-1009K-00

Unavailable

46

BOLT, FLANGE

90105-10030-00

$8.49

47

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

48

WASHER

8DF-23779-00-00

Unavailable

49

RIVET, BLIND (8J5)

90267-48057-00

Unavailable

50

BOLT, FLANGE

90105-124A2-00

Unavailable

51

NUT, U FLANGE

95607-12200-00

Unavailable

52

BAR, STABILIZER FRONT

8CR-2386E-00-00

Unavailable

53

COVER, STABILIZER FRONT

8CR-2386H-00-00

Unavailable

54

BUSH, STABILIZER FRONT

8CR-2386G-00-00

Unavailable

55

RIVET, BLIND(8CR)

90267-47186-00

Unavailable

56

JOINT, STABILIZER 1

8CR-2385L-00-00

Unavailable

57

COLLAR(8V7)

90387-087L3-00

Unavailable

58

BOLT, FLANGE

95817-08040-00

Unavailable

59

NUT, SELF-LOCKING

90185-08169-00

$8.49

60

EMBLEM 15

8DT-77371-00-00

Unavailable

61

EMBLEM 16

8DT-77372-00-00

Unavailable
