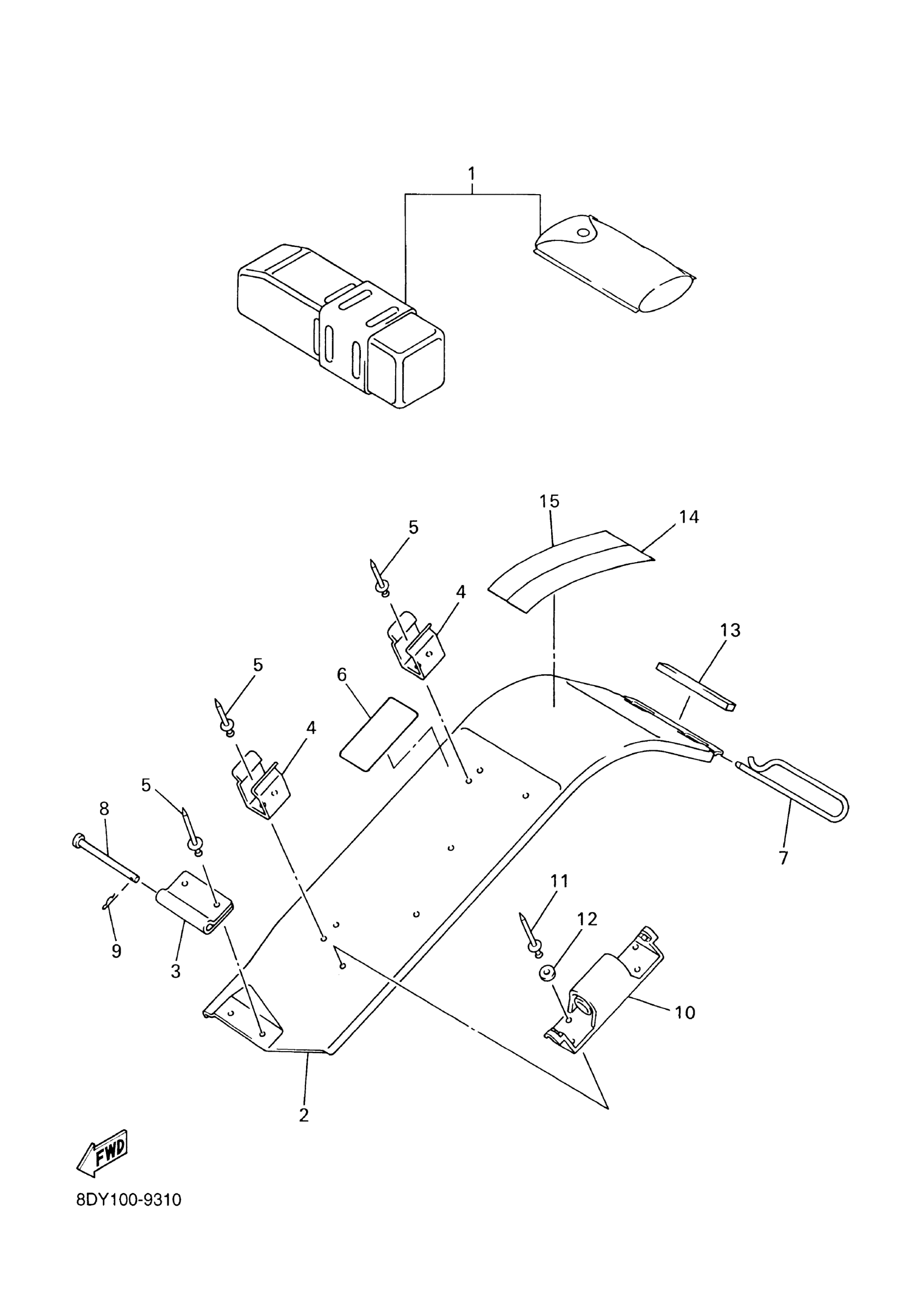

Yamaha VX700DXD (VMAX 700 DELUXE (ELEC START)) 8DY2 2000 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

TOOL KIT

8DF-28100-00-00

Unavailable

2

GUARD, DRIVE

8CR-77311-10-00

Unavailable

3

BRACKET 1

8CR-77315-00-00

Unavailable

4

STAY, BELT

8CR-77338-00-00

$5.49

5

RIVET, BLIND(8CR)

90267-47186-00

$2.97

6

LABEL, WARNING 2

8BD-77762-00-00

$7.99

7

PIN

8CR-77384-01-00

$16.49

8

PIN(8E7)

91701-06082-00

$5.60

9

CLIP (7U6)

90468-18121-00

$7.49

10

PLUG HOLDER ASSY

8CR-77378-00-00

$41.99

11

RIVET, BLIND

90267-48060-00

$8.49

12

WASHER, PLATE(39X)

90201-057H5-00

$4.29

13

DAMPER 1

8CR-77319-00-00

$0.42

14

LABEL 1

8CW-47578-00-00

Unavailable

15

LABEL, CAUTION

8CH-1417E-00-00

Unavailable

15

LABEL, CAUTION

8DG-1417E-00-00

Unavailable
