ELECTRICAL 1

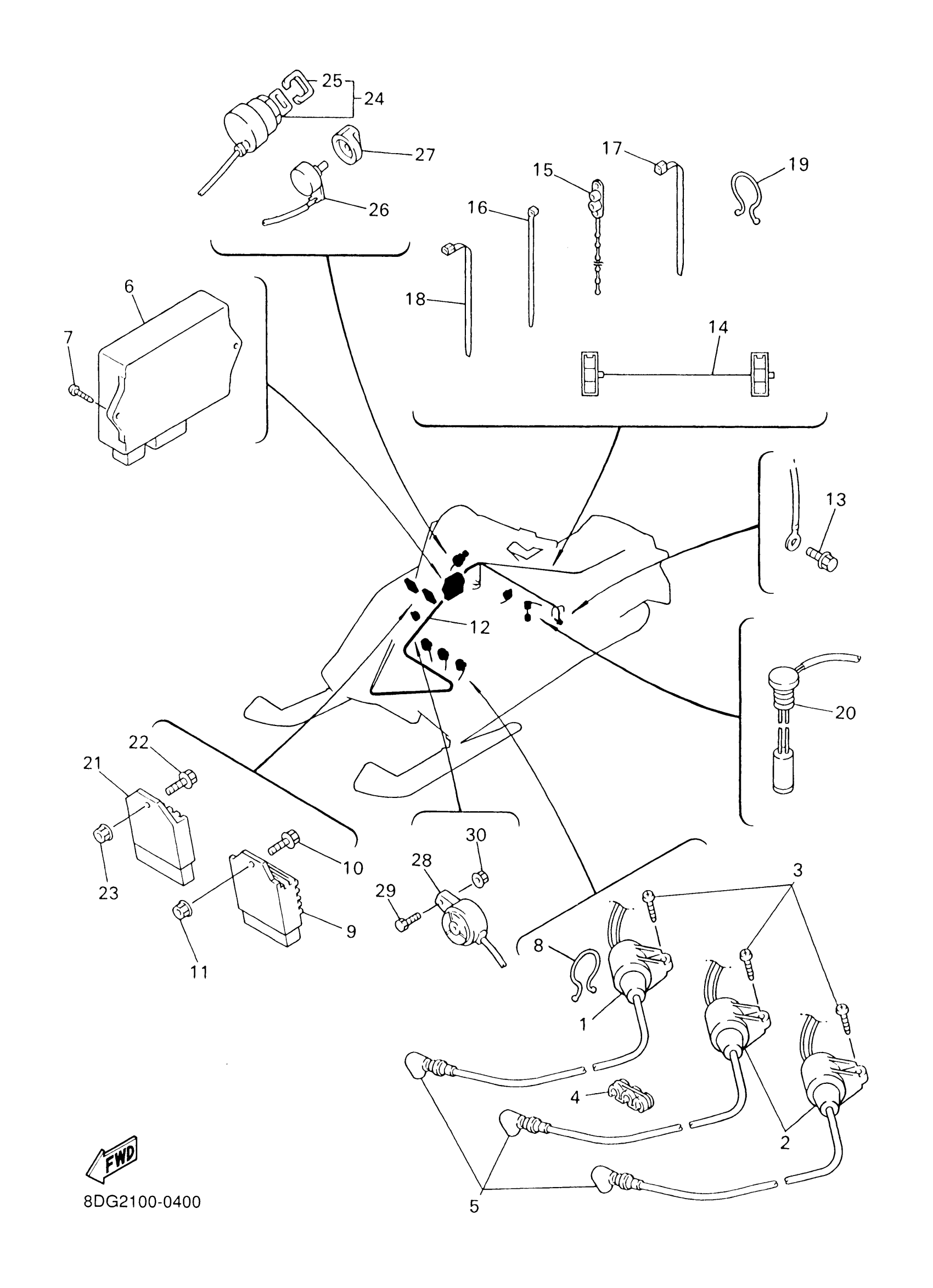

Yamaha VX700DXD (VMAX 700 DELUXE (ELEC START)) 8DY2 2000 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8DG-82310-00-00
Unavailable
2
IGNITION COIL ASSY
8ED-82310-00-00
Unavailable
3
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
4
CLAMP
90464-06247-00
Unavailable
5
PLUG CAP ASSY
8DF-82370-00-00
$41.99
6
C.D.I. UNIT ASSEMBLY
8CH-85540-00-00
Unavailable
6
C.D.I. UNIT ASSY
8DG-85540-00-00
Unavailable
7
SCREW, TAPPING
97707-60525-00
$8.49
8
CLAMP (3Y2)
90464-16039-00
$9.49
9
RECTIFIER & REGULATOR ASSY
8DX-81960-00-00
Unavailable
10
BOLT, FLANGE
95817-06016-00
$2.75
11
NUT, FLANGE(4MV)
95707-06500-00
$1.23
12
WIRE HARNESS ASSY
8CH-82590-10-00
Unavailable
13
BOLT, FLANGE
95817-06010-00
$4.73
14
WIRE, LEAD
8CR-8471G-00-00
Unavailable
15
CLAMP
90464-20031-00
Unavailable
16
CLAMP(4FM)
90464-15195-00
Unavailable
17
CLAMP(4FM)
90464-15195-00
Unavailable
18
CLAMP
90464-13077-00
Unavailable
19
CLAMP
90464-25267-00
Unavailable
20
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
21
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
22
BOLT, FLANGE
95817-06016-00
$2.75
23
NUT, FLANGE(4MV)
95707-06500-00
$1.23
24
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
25
CAP, KEY
526-82579-00-00
Unavailable
26
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
27
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
28
BUZZER
8CW-83383-00-00
Unavailable
29
BOLT(3JK)
97027-05020-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
