2000 Yamaha Vmax 700 (VX700D) Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 2000 Yamaha Vmax 700 (VX700D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

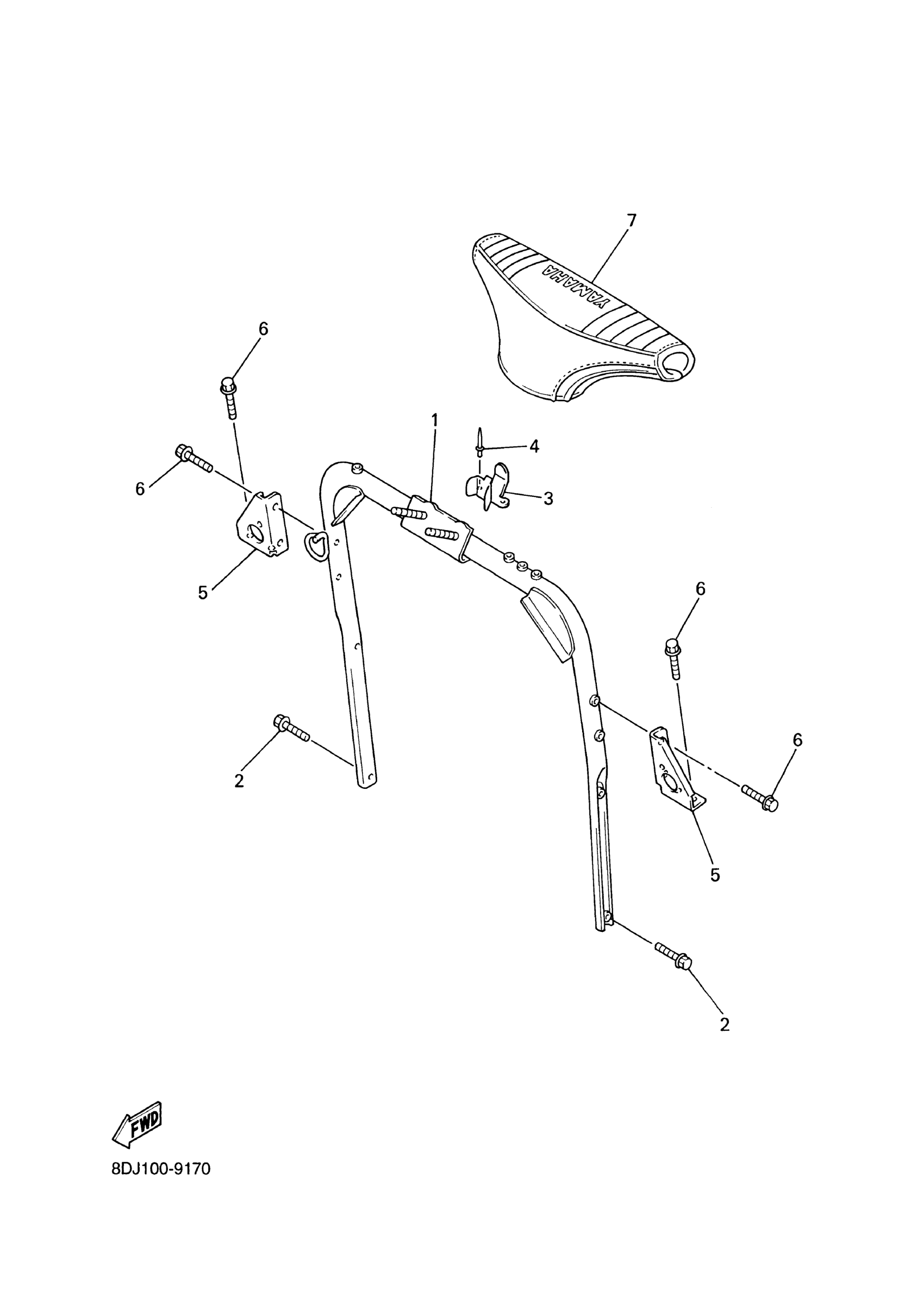

2000 Yamaha Vmax 700 (VX700D) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8CR-23870-10-00

1
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

3

HOLDER 2

8DF-23867-00-00

1
Out of stock

4

RIVET, BLIND(3JB)

90267-48095-00

1

$2.00

In stock

5

BRACKET 1

8CR-23881-00-00

—

$9.85

In stock

6

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

7

PAD, STEERING

8CR-23815-01-00

—

$149.63

In stock
