- VX700D (VMAX 700) 8DS3 2000
ALTERNATE STARTER KIT

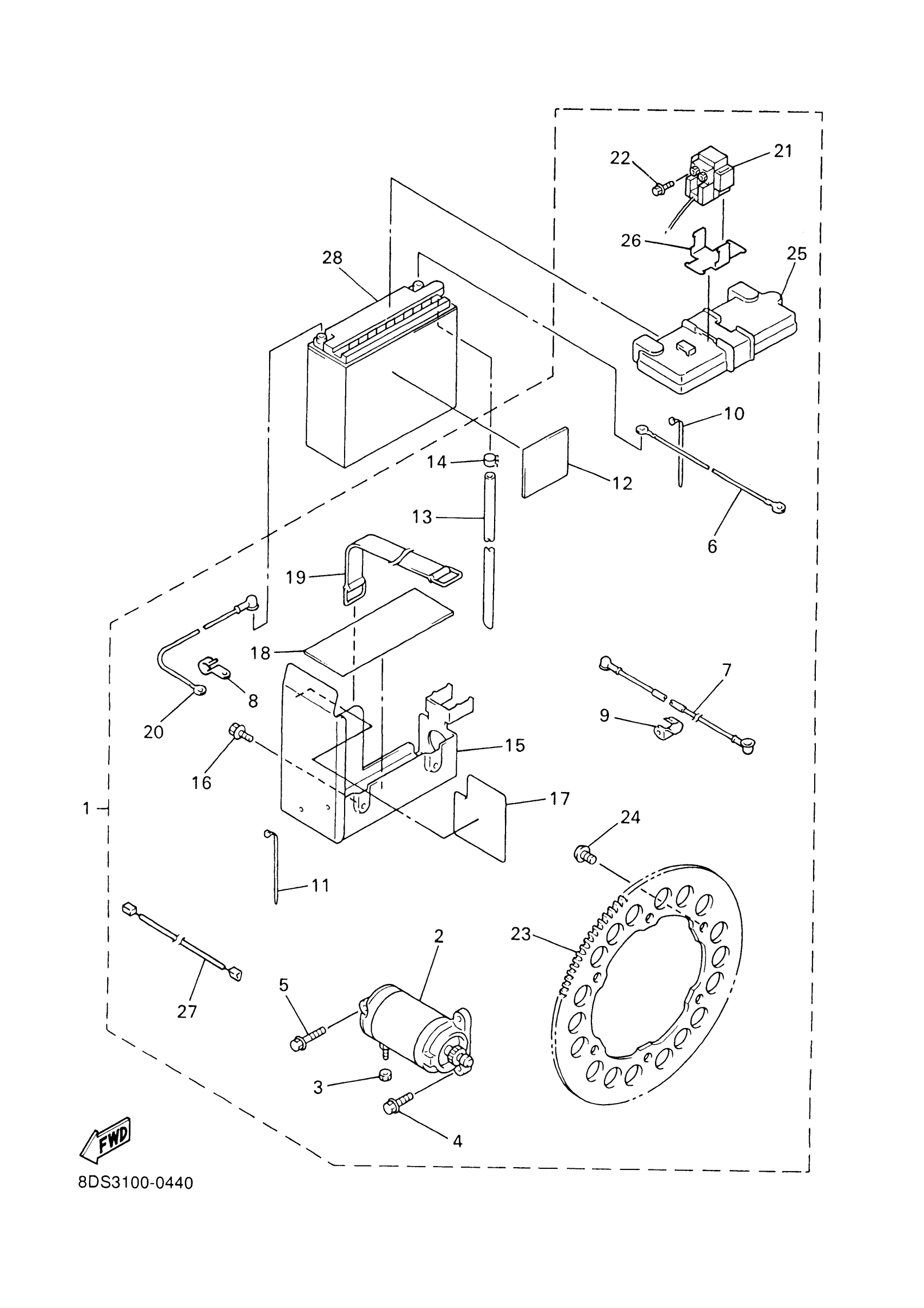

Yamaha VX700D (VMAX 700) 8DS3 2000 ALTERNATE STARTER KIT Diagram
#
1
ELECTRIC STARTER KIT
8DS-W8180-10-00
Unavailable
2
STARTING MOTOR ASSY
8CW-81800-01-00
Unavailable
3
NUT(6TA)
95317-06600-00
$3.55
4
BOLT, SMALL FLANGE
95027-08030-00
$3.76
5
BOLT, FLANGE(4ES)
95027-08080-00
Unavailable
6
. WIRE, MINUS LEAD
8DY-82116-00-00
Unavailable
7
. WIRE, LEAD
8DY-82117-00-00
Unavailable
8
CLAMP
90462-08016-00
$26.99
9
. CLAMP
90465-10381-00
Unavailable
10
CLAMP(4FM)
90464-15195-00
$4.41
11
CLAMP(4FM)
90464-15195-00
$4.41
12
DAMPER
8CW-82176-00-00
Unavailable
13
PIPE (L320)
8CW-8235W-01-00
Unavailable
14
CLIP(41W)
90467-08092-00
$9.49
15
. BRACKET, BATTERY
8DM-2199G-00-00
Unavailable
16
BOLT (796)
90109-06513-00
Unavailable
17
. SHIELD, HEAT
8CW-2199H-00-00
Unavailable
18
. SEAT, BATTERY
8DM-82122-00-00
Unavailable
19
BAND, BATTERY
8DM-82131-10-00
Unavailable
20
WIRE, PLUS LEAD
8DY-82115-00-00
Unavailable
21
STARTER RELAY ASSY (RC19-016)
3EL-81940-02-00
Unavailable
22
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
23
GEAR 1
8DM-1760A-18-00
Unavailable
24
SCREW, CROSSRECESSED ROUND
90150-08008-00
Unavailable
25
COVER, BATTERY
8DM-82129-01-00
Unavailable
26
. HOLDER, RELAY
8CY-81952-00-00
Unavailable
27
. WIRE, SUB LEAD
8DY-82509-00-00
Unavailable
28
Y50N18LA YUASA BATTERY
Y50-N18LA-00-00
Unavailable
