- VX700C (VMAX 700) 8DS2 1999
ELECTRICAL 1

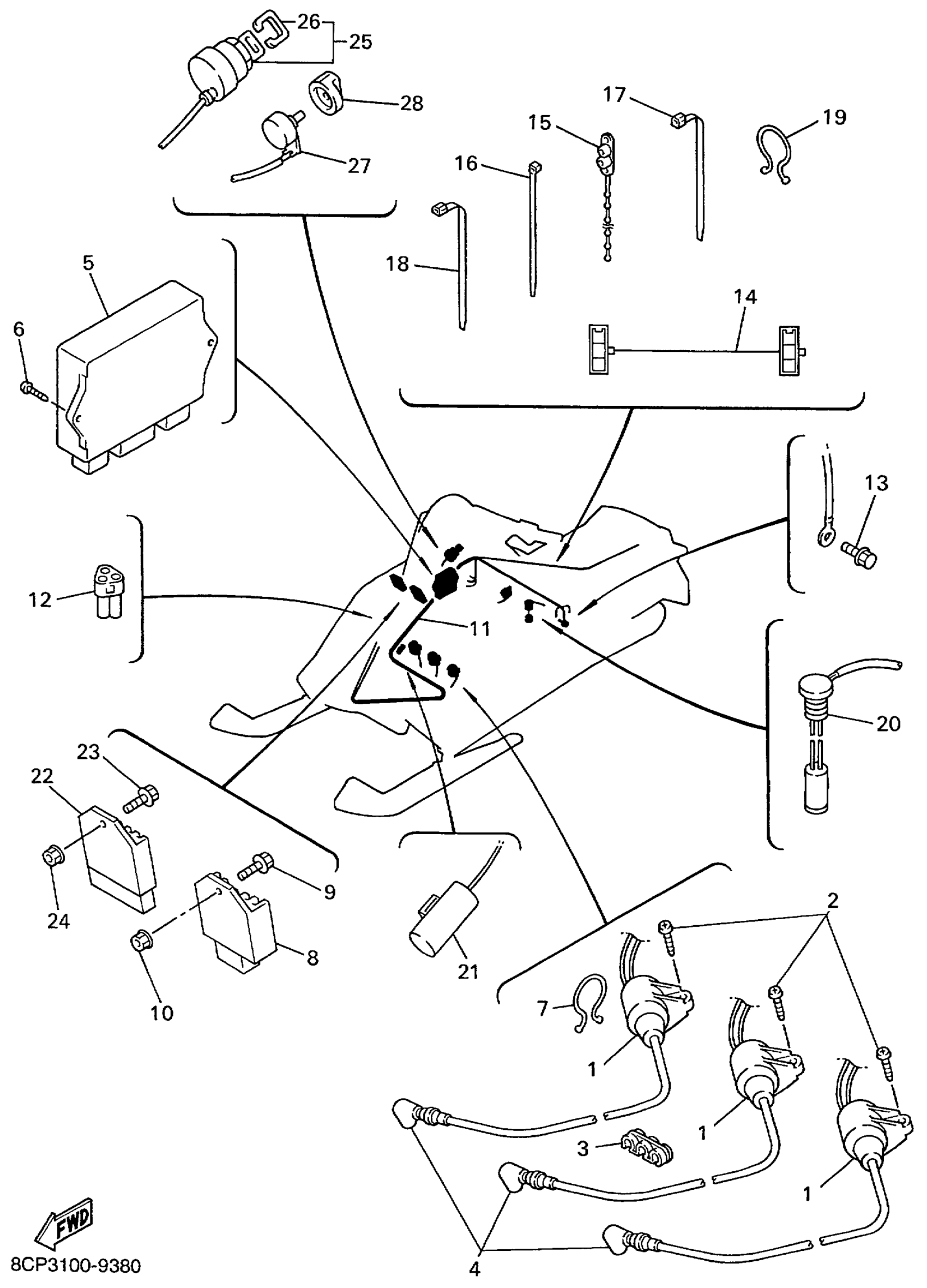

Yamaha VX700C (VMAX 700) 8DS2 1999 ELECTRICAL 1 Diagram
#
Description
Price
1
IGNITION COIL ASSY
8DG-82310-00-00
Unavailable
2
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
3
CLAMP
90464-06247-00
Unavailable
4
PLUG CAP ASSY
8DF-82370-00-00
$41.99
5
C.D.I. UNIT ASSEMBLY
8CH-85540-00-00
Unavailable
6
SCREW, TAPPING
97707-60525-00
$8.49
7
CLAMP (3Y2)
90464-16039-00
$9.49
8
RECTIFIER & REGULATOR ASSY
8DX-81960-00-00
Unavailable
9
BOLT, FLANGE
95817-06016-00
$2.75
10
NUT, FLANGE(4MV)
95707-06500-00
$1.23
11
WIRE HARNESS ASSY
8CH-82590-10-00
Unavailable
12
CONNECTOR
8CR-82378-00-00
Unavailable
13
BOLT, FLANGE
95817-06010-00
$4.73
14
WIRE, LEAD
8CR-8471G-00-00
Unavailable
15
CLAMP
90464-20031-00
Unavailable
16
CLAMP(4FM)
90464-15195-00
Unavailable
17
CLAMP(4FM)
90464-15195-00
Unavailable
18
CLAMP
90464-13077-00
Unavailable
19
CLAMP
90464-25267-00
Unavailable
20
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
21
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
22
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
23
BOLT, FLANGE
95817-06016-00
$2.75
24
NUT, FLANGE(4MV)
95707-06500-00
$1.23
25
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
26
CAP, KEY
526-82579-00-00
Unavailable
27
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
28
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
