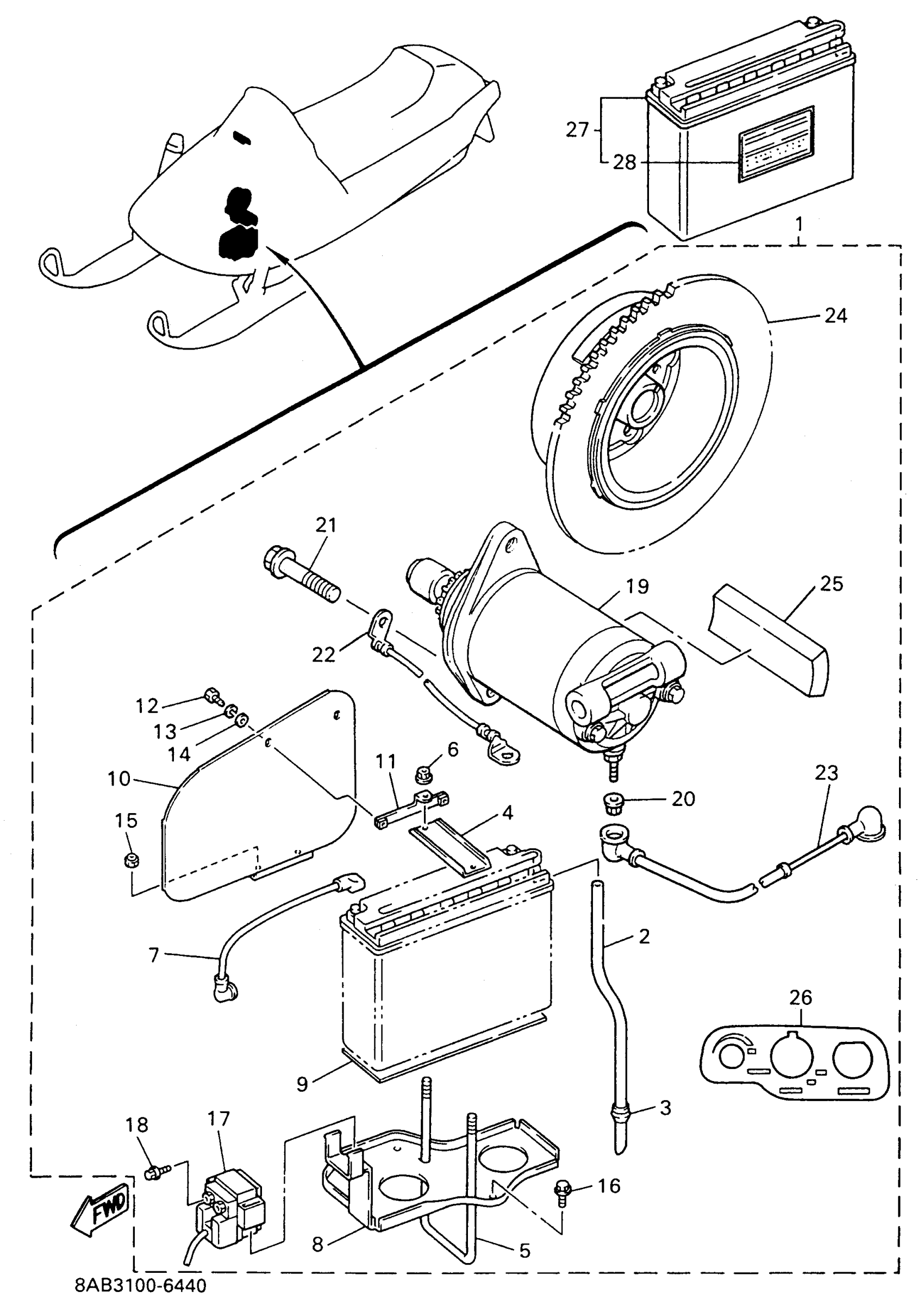

Yamaha VX600XTW (VMAX 600 XT PROACTION PLUS) 1996 ALTERNATE STARTING MOTOR KIT Diagram

#

Description
Price

1

STARTING MOTOR SET

8CA-W8180-11-00

Unavailable

2

HOSE

90445-086H3-00

Unavailable

3

GROMMET(3AA)

90480-12497-00

Unavailable

4

. PLATE, BATTERY FITTING

84N-82136-00-00

Unavailable

5

. SCREW, FITTING

84N-82133-00-00

Unavailable

6

NUT, NYLON

95707-06300-00

$3.50

7

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

8

BRACKET, BATTERY

8CL-2199G-00-00

Unavailable

9

SEAT, BATTERY

84N-82122-00-00

$6.99

10

SHIELD, HEAT

84N-2199H-01-00

Unavailable

11

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

12

BOLT

97027-05010-00

Unavailable

13

WASHER(3SX)

92907-05100-00

$8.49

14

WASHER(1RW)

92907-05600-00

$3.78

15

NUT,SELF-LOCKING

95607-06200-00

$12.49

16

BOLT, FLANGE

95817-06010-00

Unavailable

17

STARTER RELAY ASSY (RC19-004)

4FU-81940-02-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

19

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

20

NUT(6TA)

95317-06600-00

Unavailable

21

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

22

WIRE, MINUS LEAD

8BB-82116-00-00

Unavailable

23

WIRE,LEAD

8CL-82117-00-00

Unavailable

24

ROTOR ASY

8BP-85550-00-00

Unavailable

25

DAMPER, ENGINE MOUNT 1

84N-15316-00-00

Unavailable

26

INDICATOR 1

8BB-77741-10-00

Unavailable

27

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

28

LABEL, BATTERY

40A-82141-G0-00

Unavailable
