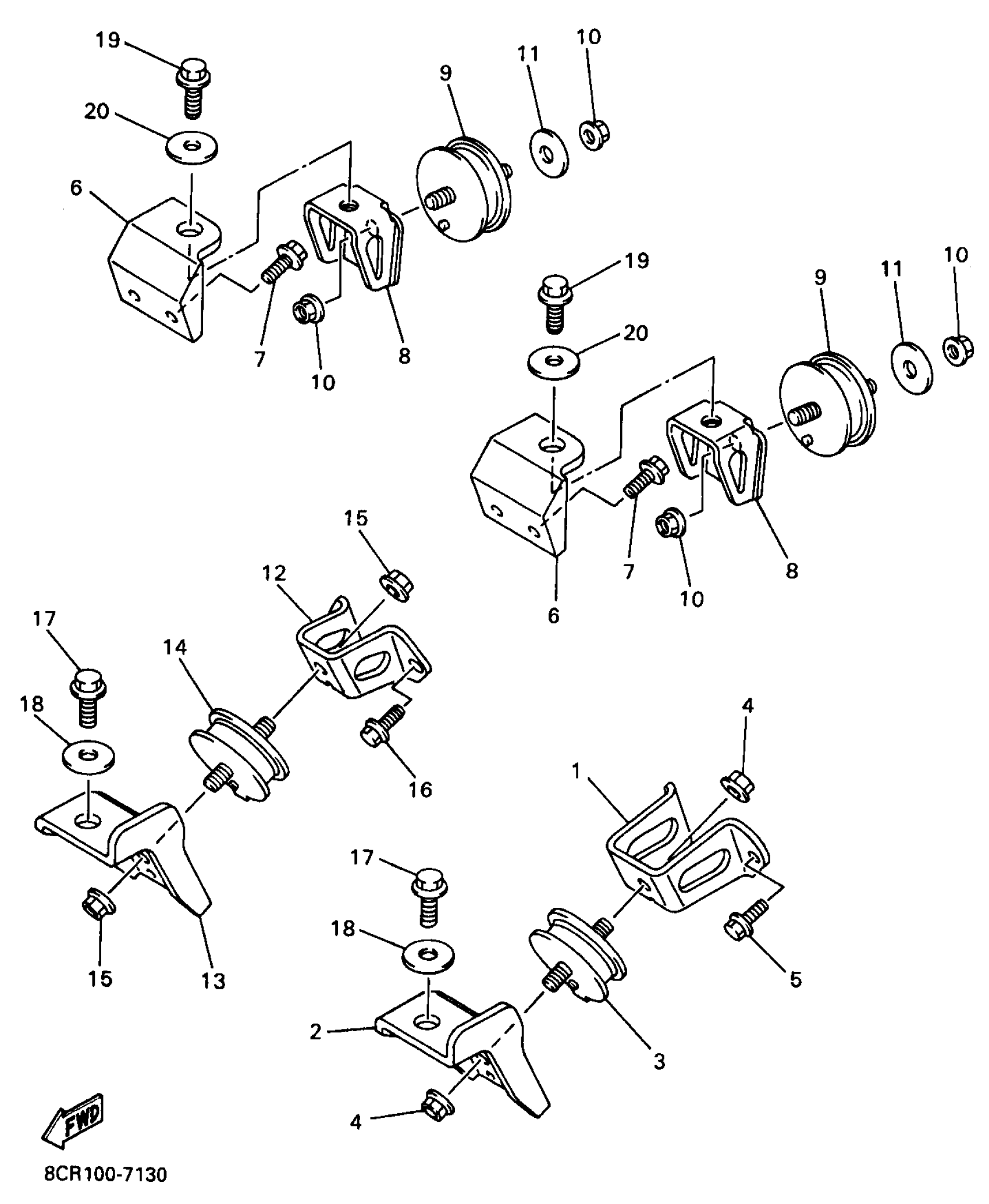

Yamaha VX600XTRB (VMAX 600 XTR (ELEC START+REVERSE)) BH20500 1998 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, FRONT UPPER 1

8CR-21415-00-00

Unavailable

2

BRACKET, FRONT LOWER 1

8CR-21417-00-00

Unavailable

3

DAMPER 2

8CR-21486-00-00

Unavailable

4

NUT, FLANGE(8AB)

95707-10500-00

$3.18

5

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

6

BRACKET, REAR UPPER 1

8CR-21425-00-00

Unavailable

7

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

8

BRACKET, REAR LOWER 1

8CR-21427-01-00

Unavailable

9

DAMPER 2

8CR-21486-00-00

Unavailable

10

NUT, FLANGE(8AB)

95707-10500-00

$3.18

11

WASHER, PLATE (856)

90201-10321-00

$8.49

12

BRACKET, FRONT UPPER 2

8CR-21416-00-00

Unavailable

13

BRACKET, FRONT LOWER 1

8CR-21417-00-00

Unavailable

14

DAMPER 2

8CR-21486-00-00

Unavailable

15

NUT, FLANGE(8AB)

95707-10500-00

$3.18

16

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

17

BOLT, FLANGE(JN5)

95817-12030-00

Unavailable

18

WASHER, PLATE

90201-120U9-00

Unavailable

19

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

20

WASHER, PLATE (856)

90201-10321-00

$8.49
