ELECTRICAL 1

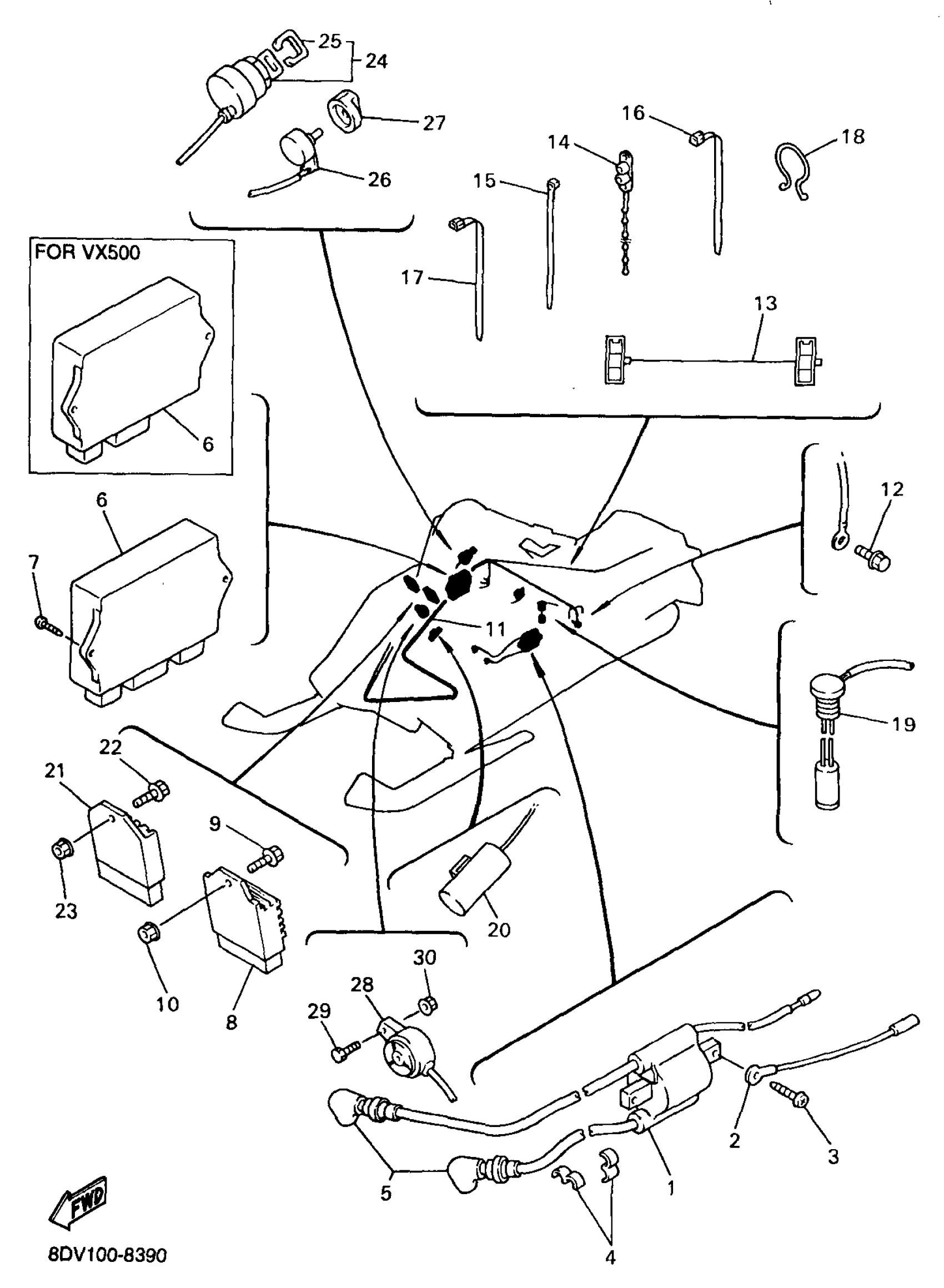

Yamaha VX600XTRB (VMAX 600 XTR (ELEC START+REVERSE)) BH20500 1998 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
3
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
8DG-82370-00-00
$49.99
6
C.D.I. UNIT ASSY
8CJ-85540-01-00
Unavailable
6
C.D.I. UNIT ASSY
8CR-85540-10-00
Unavailable
7
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
8
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
9
BOLT, FLANGE
95817-06016-00
$2.75
10
NUT, FLANGE(4MV)
95707-06500-00
$1.23
11
WIRE HARNESS ASSEMBLY
8CU-82590-00-00
Unavailable
11
WIRE HARNESS ASSEMBLY
8CX-82590-00-00
Unavailable
12
BOLT, FLANGE
95817-06016-00
$2.75
13
WIRE, LEAD
8CR-8471G-00-00
Unavailable
14
CLAMP
90464-20031-00
Unavailable
15
CLAMP(4FM)
90464-15195-00
Unavailable
16
CLAMP(4FM)
90464-15195-00
Unavailable
17
CLAMP
90464-13077-00
Unavailable
18
CLAMP
90464-25267-00
Unavailable
19
OIL LEVEL GAUGE ASSY
3E1-85720-15-00
Unavailable
20
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
$2.75
22
NUT, FLANGE(4MV)
95707-06500-00
$1.23
23
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
24
CAP, KEY
526-82579-00-00
Unavailable
25
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
26
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
28
BUZZER
8CW-83383-00-00
Unavailable
29
BOLT(3JK)
97027-05020-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
