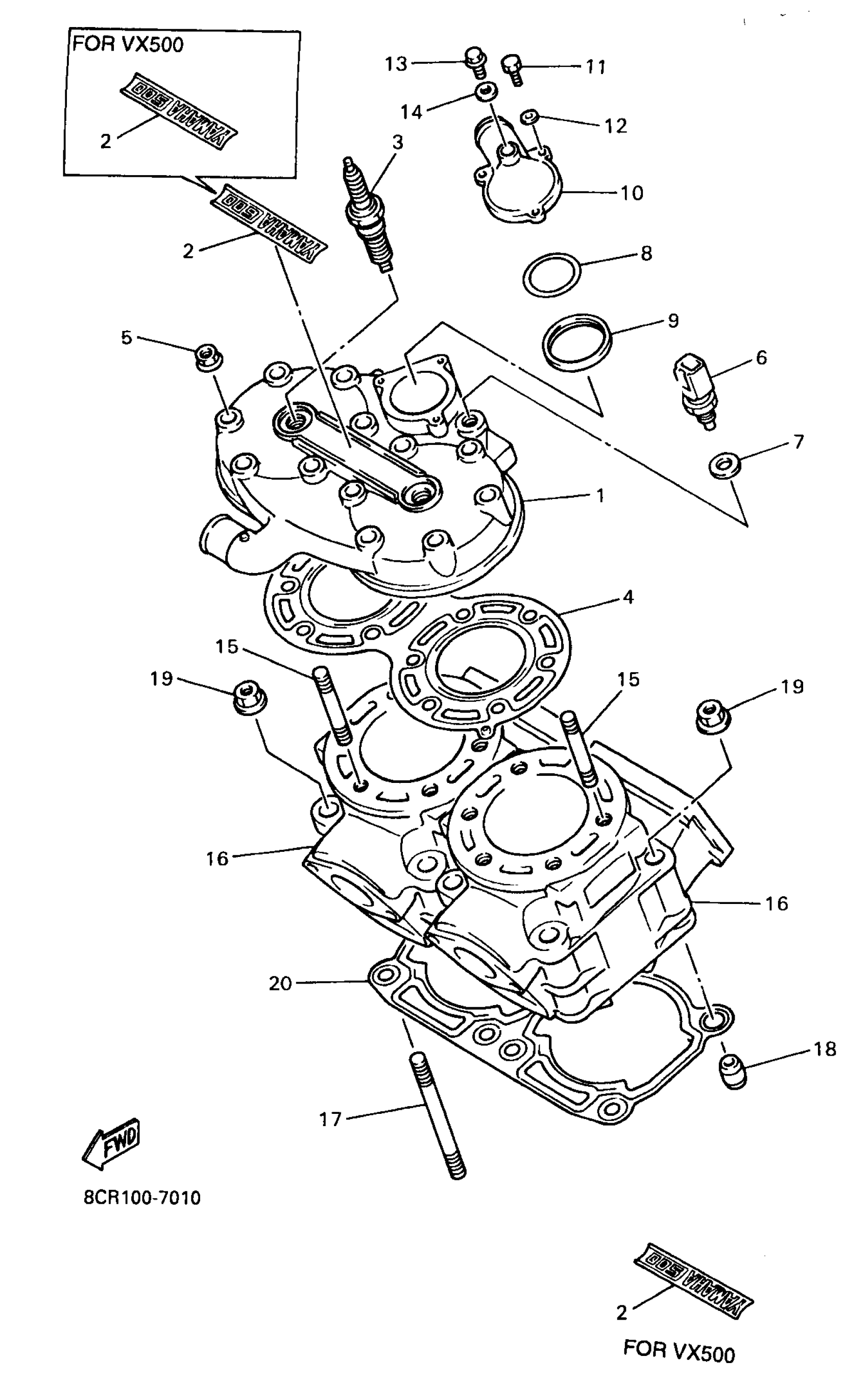

Yamaha VX600XTRB (VMAX 600 XTR (ELEC START+REVERSE)) BH20500 1998 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD,CYLINDER 1

99999-03192-00

Unavailable

1

HEAD,CYLINDER 1

99999-03191-00

Unavailable

2

EMBLEM

8CJ-1111K-00-00

Unavailable

2

EMBLEM

8CR-1111K-00-00

Unavailable

3

PLUG, SPARK

NGK-BR9EC-SO-00

Unavailable

3

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

4

GASKET, CYLINDER HEAD 1

8AB-11181-00-00

Unavailable

4

GASKET, CYLINDER HEAD 1

8CR-11181-00-00

$109.99

5

NUT, FLANGE(JN5)

95707-08500-00

$3.13

6

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

7

WASHER, PLATE

90201-12790-00

$9.49

8

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

9

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

10

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER(6TA)

92907-06600-00

Unavailable

13

BOLT, FLANGE

95817-06012-00

Unavailable

14

GASKET (4V2)

90430-06166-00

Unavailable

15

BOLT, STUD (5X4)

90116-08392-00

Unavailable

16

CYLINDER 1

8CJ-11311-00-00

Unavailable

16

CYLINDER 1

8CR-11311-00-00

Unavailable

17

BOLT, STUD(8AB)

90116-10574-00

Unavailable

18

PIN, DOWEL

99530-14016-00

Unavailable

19

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

20

GASKET, CYLINDER

8CR-11351-00-00

Unavailable
